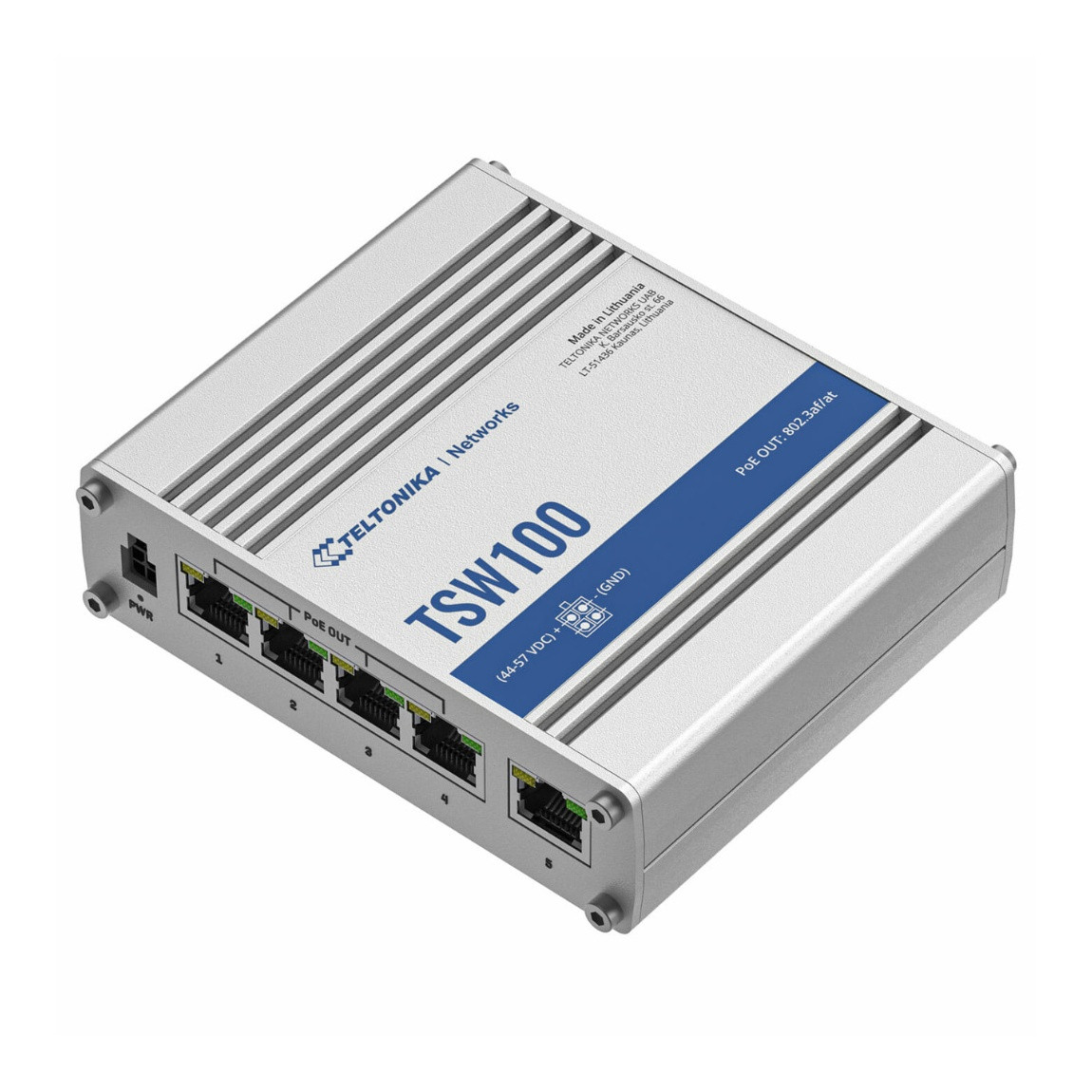

The Teltonika TSW100 is an industrial-grade 5-port Gigabit PoE switch designed for demanding environments. It offers Power over Ethernet (PoE) capabilities on ports 1 to 4, delivering up to 30W of power per port, ensuring efficient power distribution to connected devices. With support for IEEE 802.3af and 802.3at PoE standards, it is ideal for powering devices like IP cameras, Wi-Fi access points, and other PoE-enabled equipment.

Key Features:

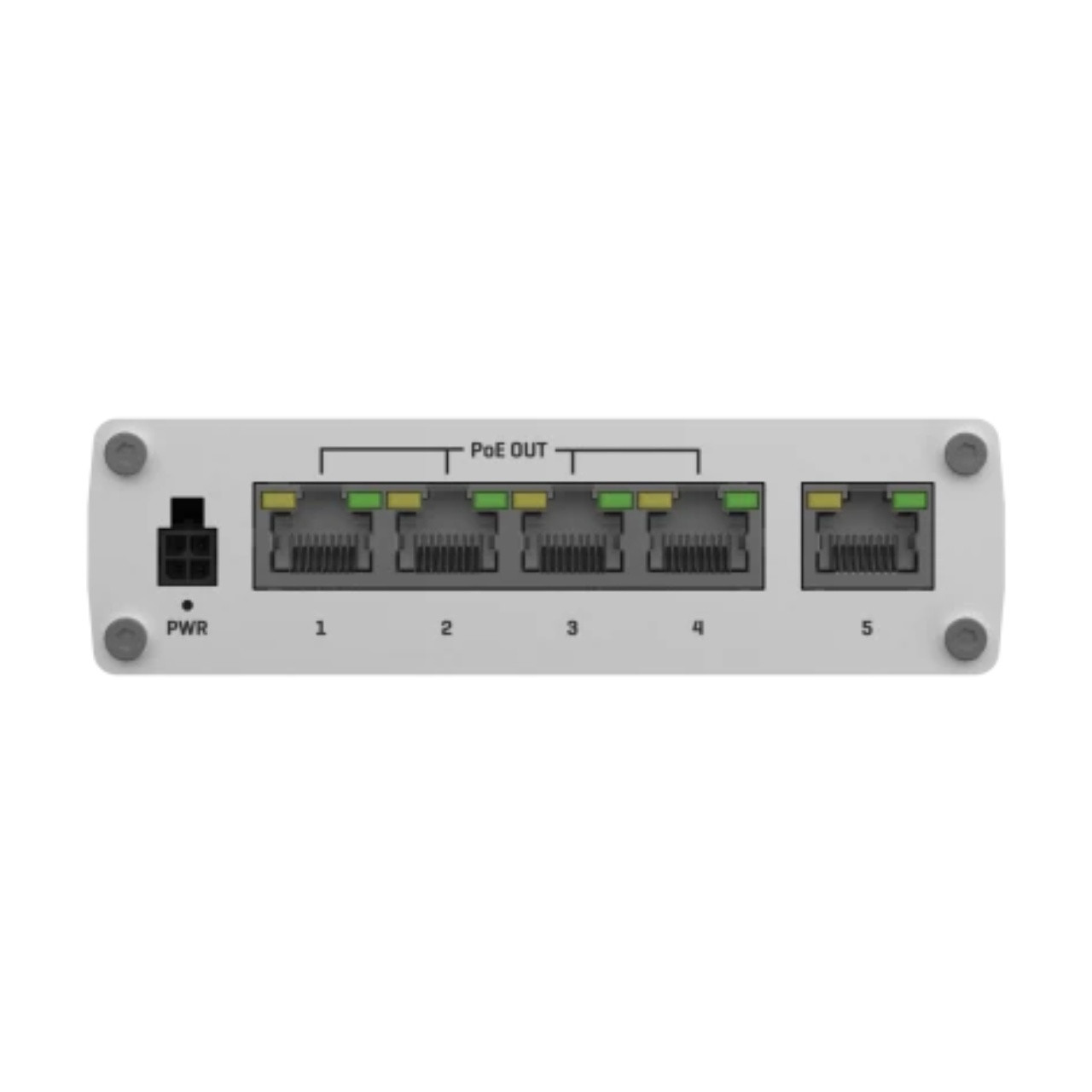

• 5 Gigabit Ethernet ports with auto MDI/MDIX support



• 4 PoE+ ports supporting IEEE 802.3af/at standards



• 30 W PoE power budget with 120 W max power per port



• 7-57 VDC power input range



• Non-blocking bandwidth of 10 Gbps



• 2K MAC address table size with 128 KB packet buffer



• Full aluminium housing



• IP30 ingress protection rating



• CE, UKCA, FCC, IC, and NOM certified

High-Speed Networking for Demanding Applications

The TSW100 is built to support high-speed networking, with each of its 5 Ethernet ports offering 10/100/1000 Mbps speeds. It provides a non-blocking bandwidth of 10 Gbps, ensuring seamless communication even in high-traffic environments. The switch also supports jumbo frames up to 9216 bytes, making it suitable for applications that require large data packet transfers.

Robust and Reliable Build

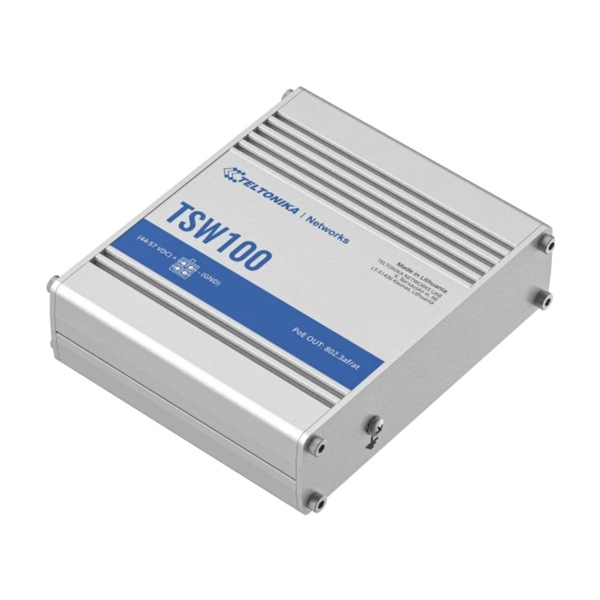

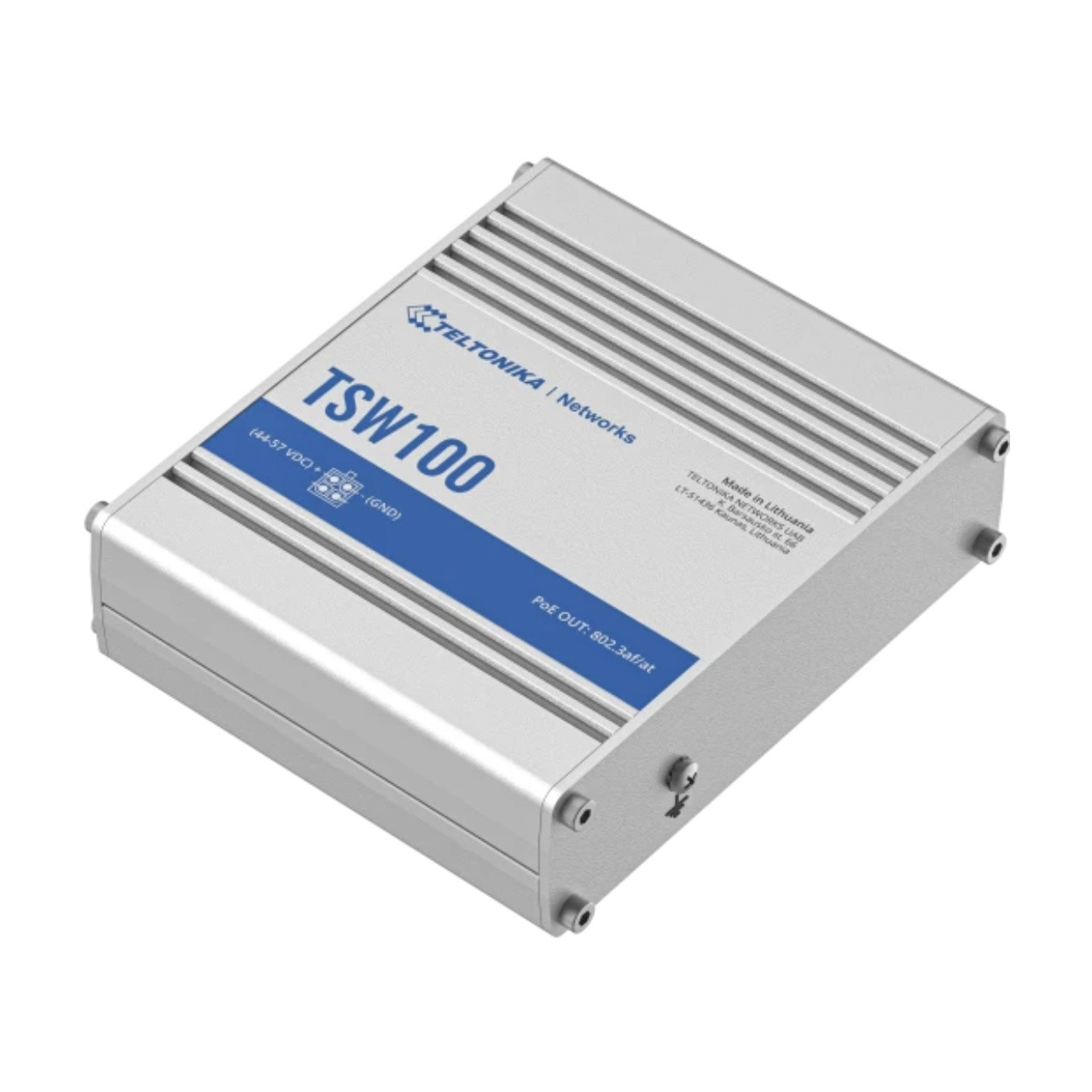

This PoE switch is housed in a full aluminium casing, offering exceptional durability. With an IP30 ingress protection rating, it is designed to withstand harsh industrial conditions. The operating temperature range of -40 oC to 75 oC, along with resistance to extreme humidity levels (10% to 90% non-condensing), ensures that the TSW100 can function reliably in various environments.

Versatile Mounting Options

The TSW100 provides flexible mounting options to suit a variety of installation needs. It can be mounted on a DIN rail, wall-mounted, or placed on a flat surface, with additional kits available for each mounting option. This versatility allows for easy integration into existing infrastructure, making it suitable for industrial control systems, remote monitoring setups, and more.

Advanced EMC Immunity and Emission Standards

For industrial applications, the TSW100 adheres to strict electromagnetic compatibility (EMC) standards. It is compliant with EN 61000-4 series for surge immunity, electrostatic discharge (ESD), and radiated immunity, ensuring reliable performance even in environments with high electromagnetic interference. This makes it a dependable choice for industrial, automotive, and telecom sectors.

Comprehensive Safety and Regulatory Compliance

The TSW100 is designed to meet various safety and regulatory requirements, including CE, UKCA, FCC, and E-mark certifications. It complies with the IEC 62368-1 standard for safety, ensuring that the device is safe for use in all approved applications. This adherence to global standards makes the TSW100 a versatile and compliant solution for a range of industries.

Compact and Lightweight Design

Despite its powerful performance and industrial-grade features, the TSW100 is remarkably compact. With dimensions of 115 x 32 x 95 mm and a weight of just 350 g, it is easy to install and doesn't take up much space in tight environments. Its lightweight design also contributes to the ease of handling and installation, even in remote or challenging locations.
