Teltonika TSW200 8 Port Unmanaged Industrial Gigabit PoE+ Switch (Power Supply Not Included) [TSW200]

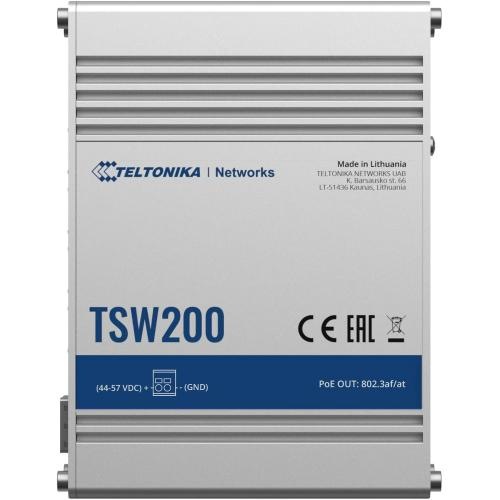

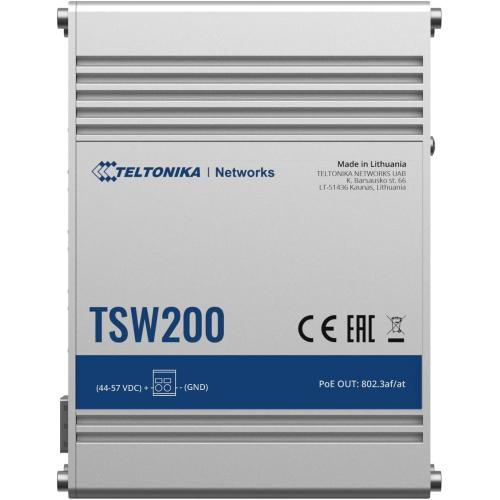

Image 1

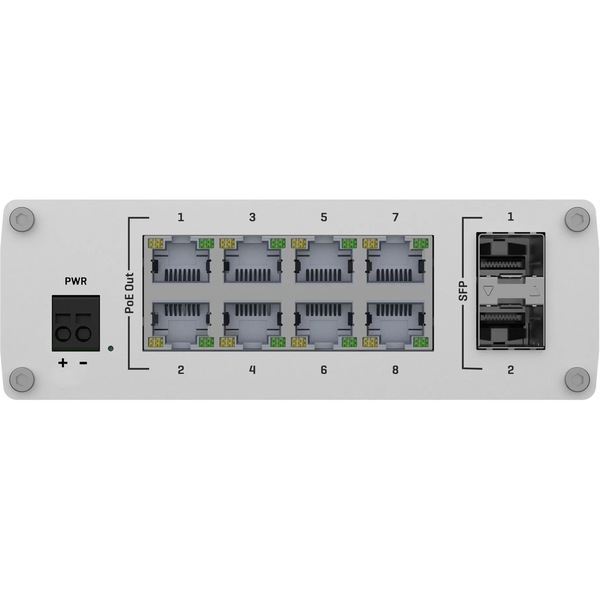

Image 2

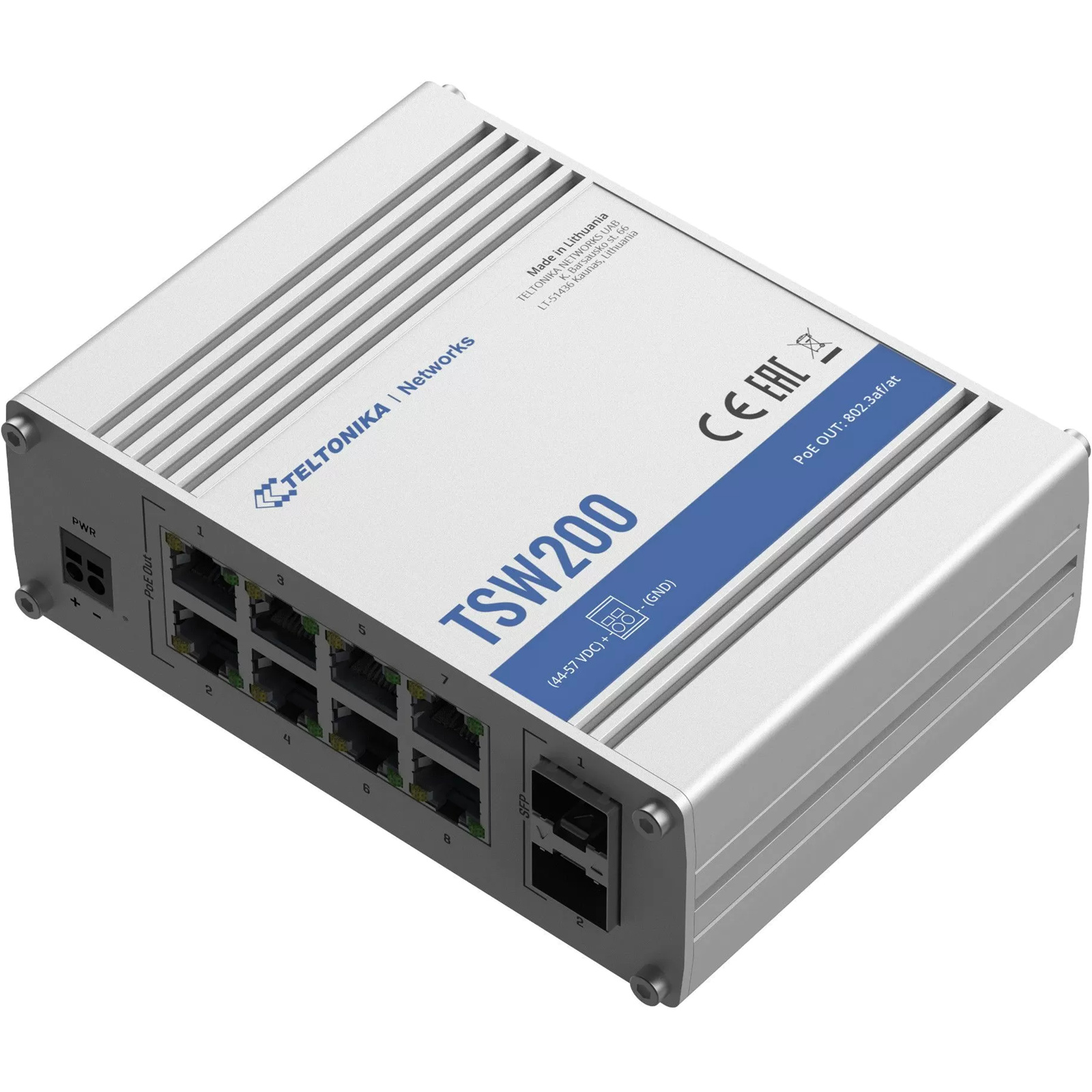

Image 3

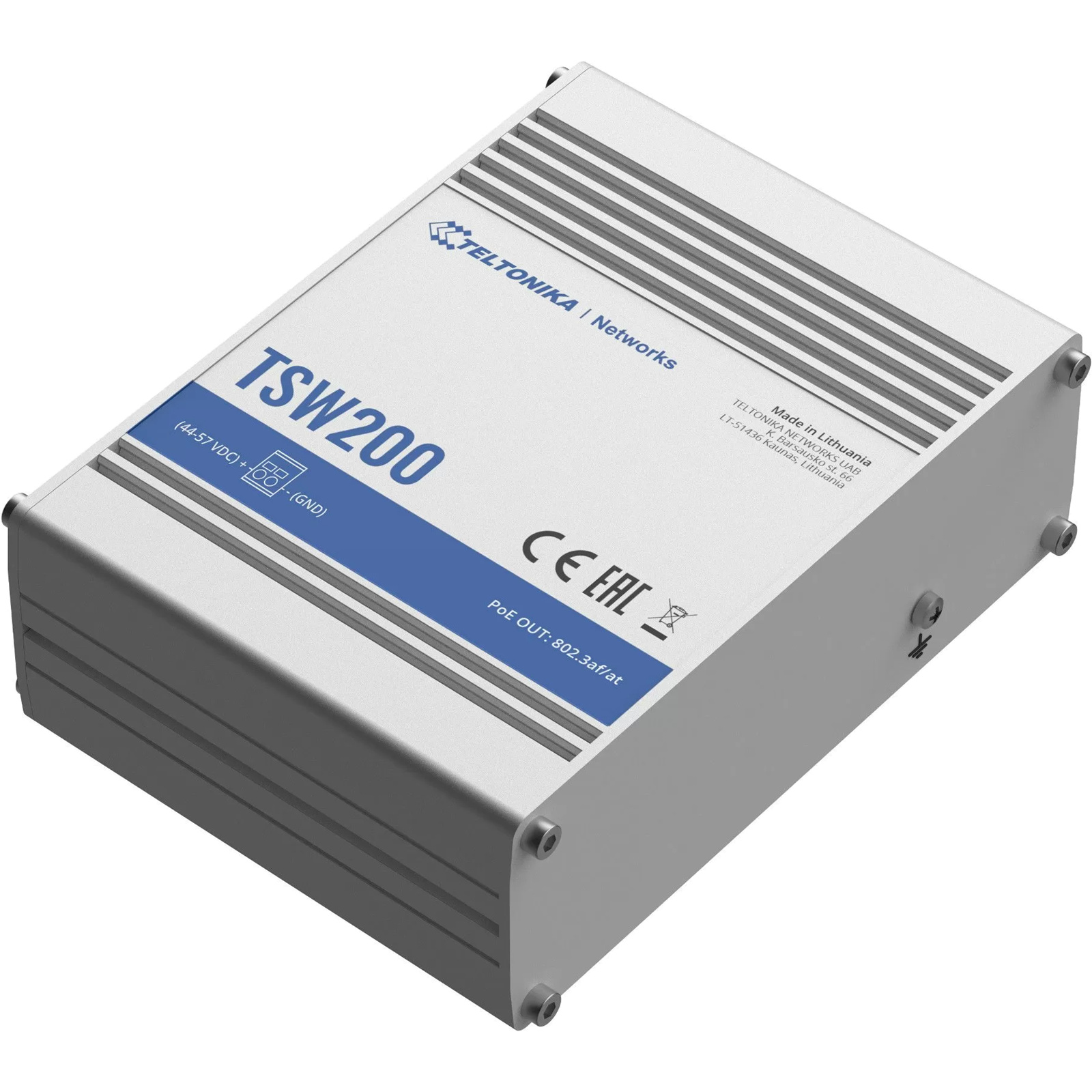

Image 4

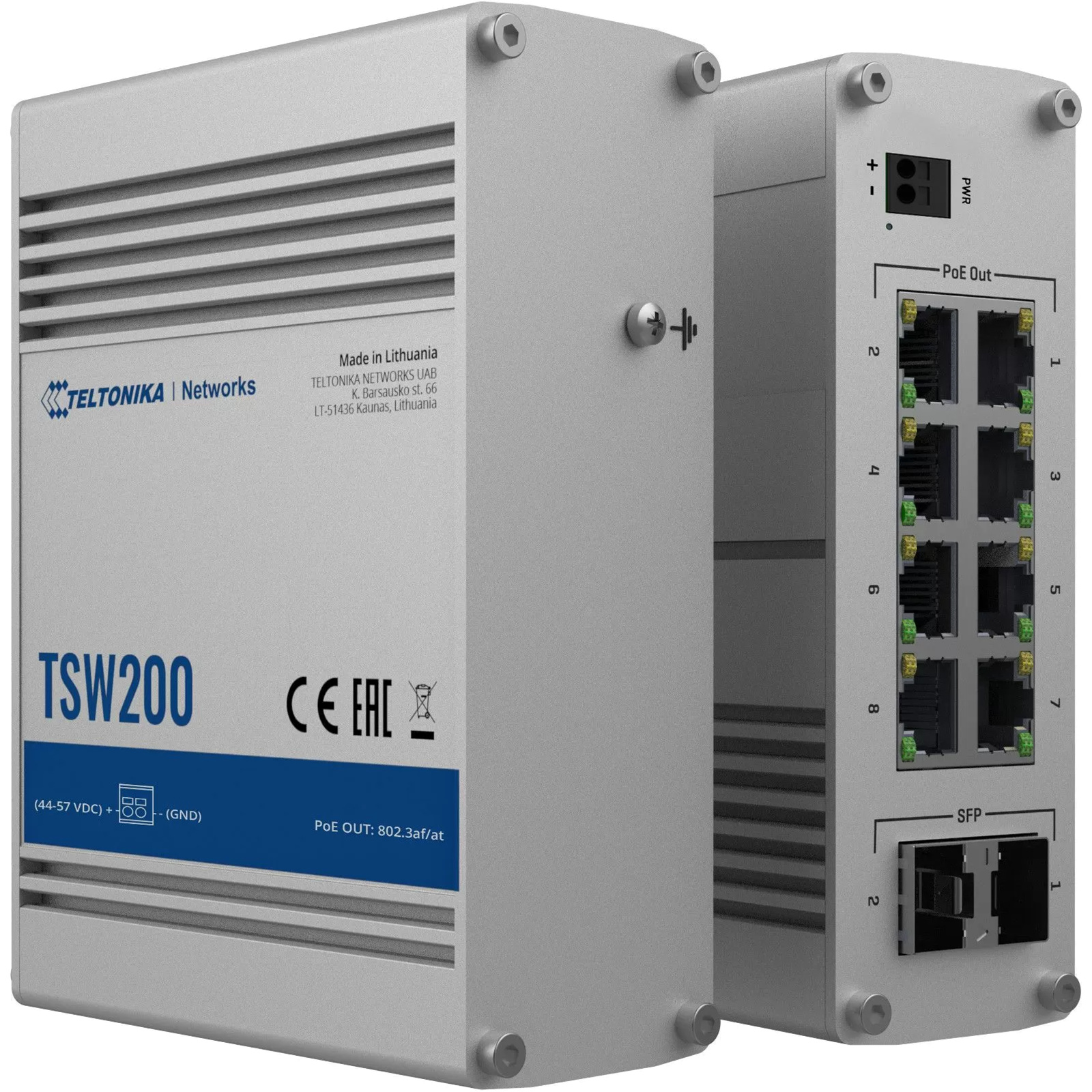

Image 5
Best Price in the Last 14 Days
Hurry! 12 items left!
$167.51
You save $39.96Was $207.47

Collect 167 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by F Digital Direct Import
Secure ways to pay at checkout
Teltonika TSW200 8 Port Unmanaged Industrial Gigabit PoE+ Switch (Power Supply Not Included)





TSW200 - INDUSTRIAL UNMANAGED POE+ SWITCH
POE+
8x PoE ports with 802.3af and 802.3at support
SFP
2 x SFP ports for long-range Fiber-optic communication
ETHERNET
8 x Gigabit Ethernet with speeds up to 1000 Mbps
POWER BUDGET
Total power budget at PSE up to 240 W
DURABILITY
Rugged aluminium housing
MOUNTING
DIN rail and surface mounting options


MEET THE TSW200
TSW200 is industrial unmanaged switch from Teltonika Networks.
TSW200 is equipped with 2 SFP ports for long-range Fiber-optic communication and 8 Gigabit Ethernet ports which support IEEE802.3af and IEE802.3at Power-over-Ethernet standards.
Classified as power source equipment (PSE), it enables centralization of the power supply, providing up to 30 watts per port and reducing the effort for installing power. It has 10/100/1000 Mbps Ethernet ports to provide an economical high-bandwidth solution for your industrial Ethernet network.
This rugged unmanaged industrial switch is ideal for professional high bandwidth applications where it is necessary to provide both: reliable data connection and power supply.

ETHERNET

LAN
8 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover

Fiber
2 x SFP ports

POE

PoE ports
Port 1 - 8

PoE standards
802.3af and 802.3at

PoE Max Power per Port (at PSE)
30 W

Total PoE Power Budget (at PSE)
240 W

PERFORMANCE SPECIFICATIONS

Bandwidth (Non-blocking)
20 Gbps

Packet buffer
128 KB

MAC address table size
2K entries

Jumbo frame support
9216 bytes

POWER

Connector
2 pin industrial DC power socket

Input voltage range
7-57 VDC

Input voltage range for PoE
44-57 VDC

Power consumption (idle/max no PoE/max)
1,81 W/5.5 W/245.5 W

PHYSICAL INTERFACES (PORTS, LEDS)

Ethernet
8 x RJ45 ports, 10/100/1000 Mbps

Fiber
2 x SFP ports

Status LED’s
1 x Power LED, 16 x LAN status LED’s 2 x SFP status LED’s

Power
1 x 2 pin industrial DC power socket

Ground
1 x Grounding screw

PHYSICAL SPECIFICATION

Casing material
Full aluminum housing

Dimensions (W x H x D)
132 x 44.2 x 95.1 mm

Weight
456 g

Mounting
DIN rail or wall mounting (additional kit needed), flat surface placement

OPERATING ENVIRONMENT

Operating temperature
-40 °C to +75 °C

Operating humidity
10 % to 90 % non condensing

Ingress Protection Rating
IP30
- MPN: TSW200

GTIN: 4779051840120
