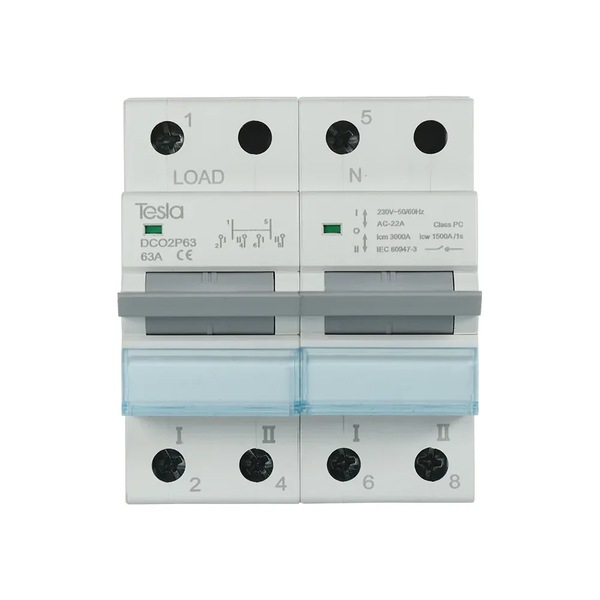

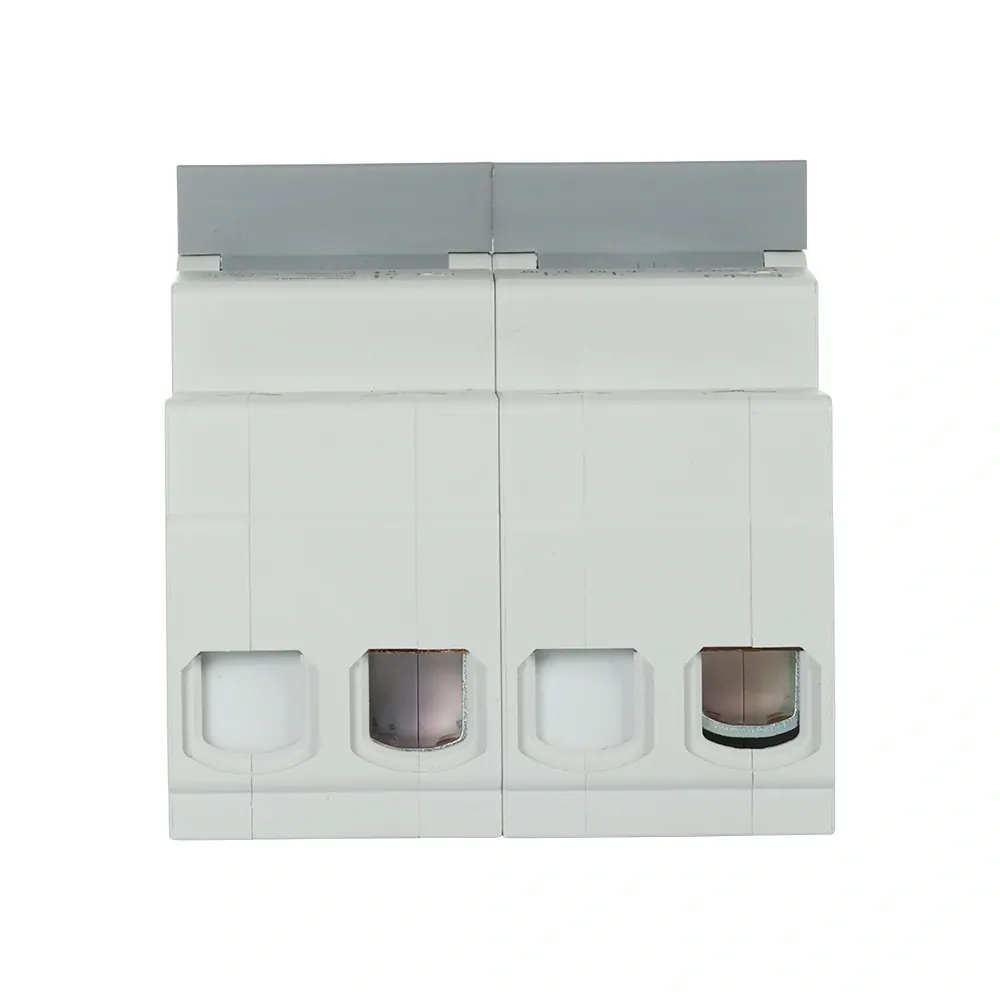

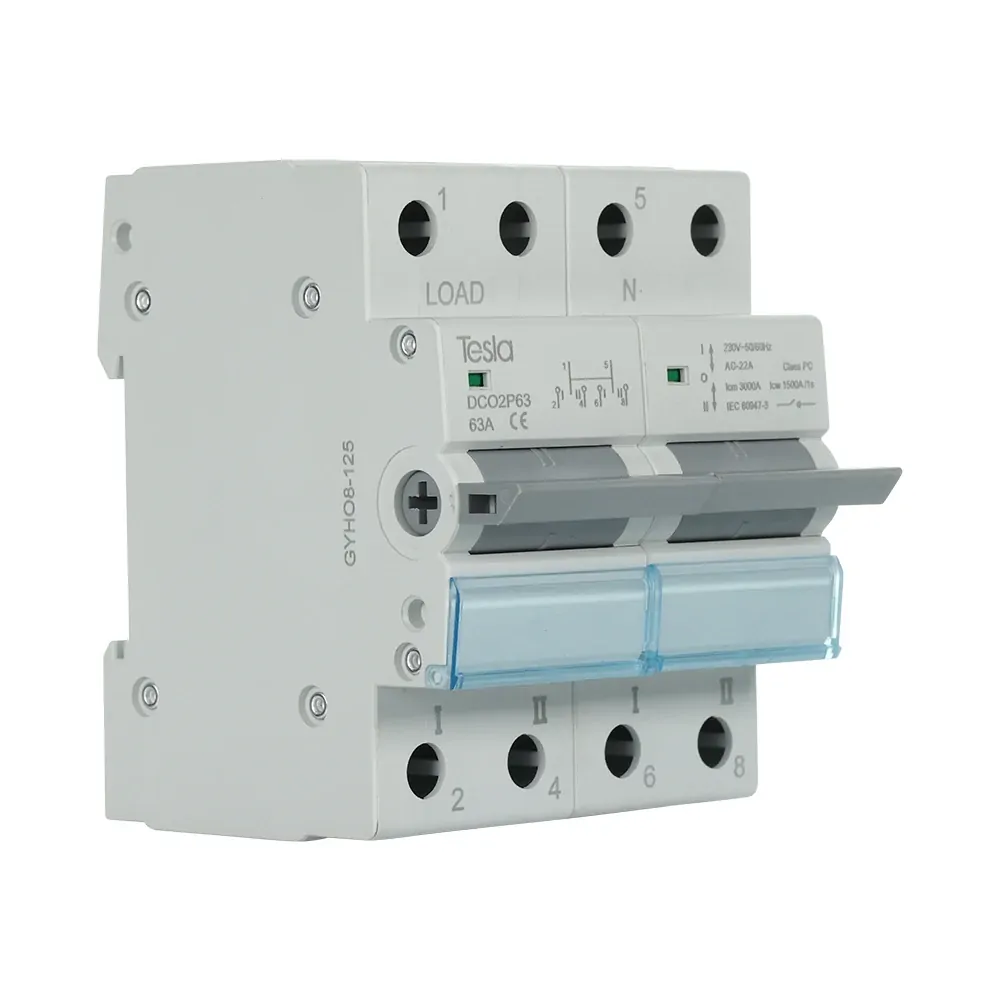

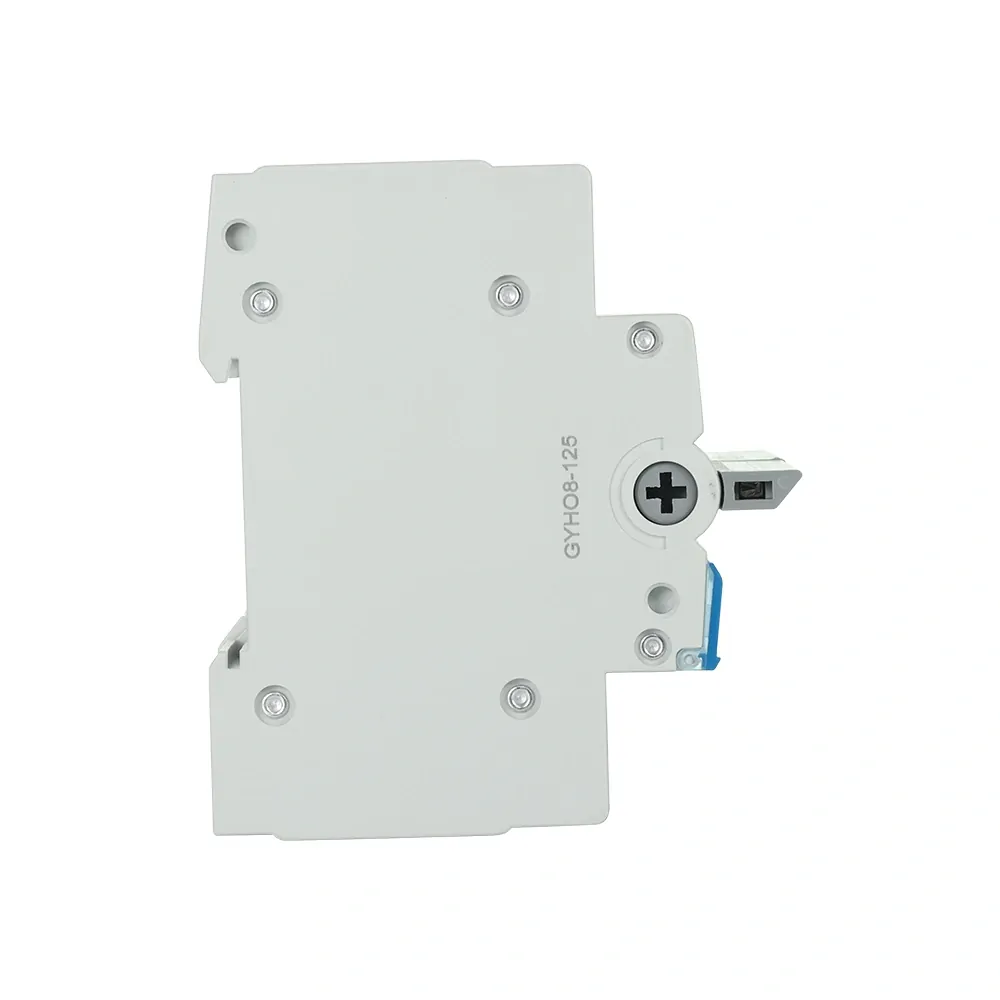

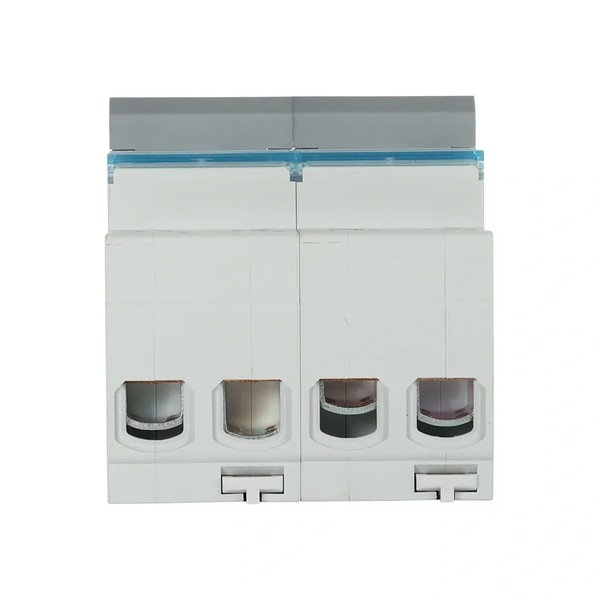

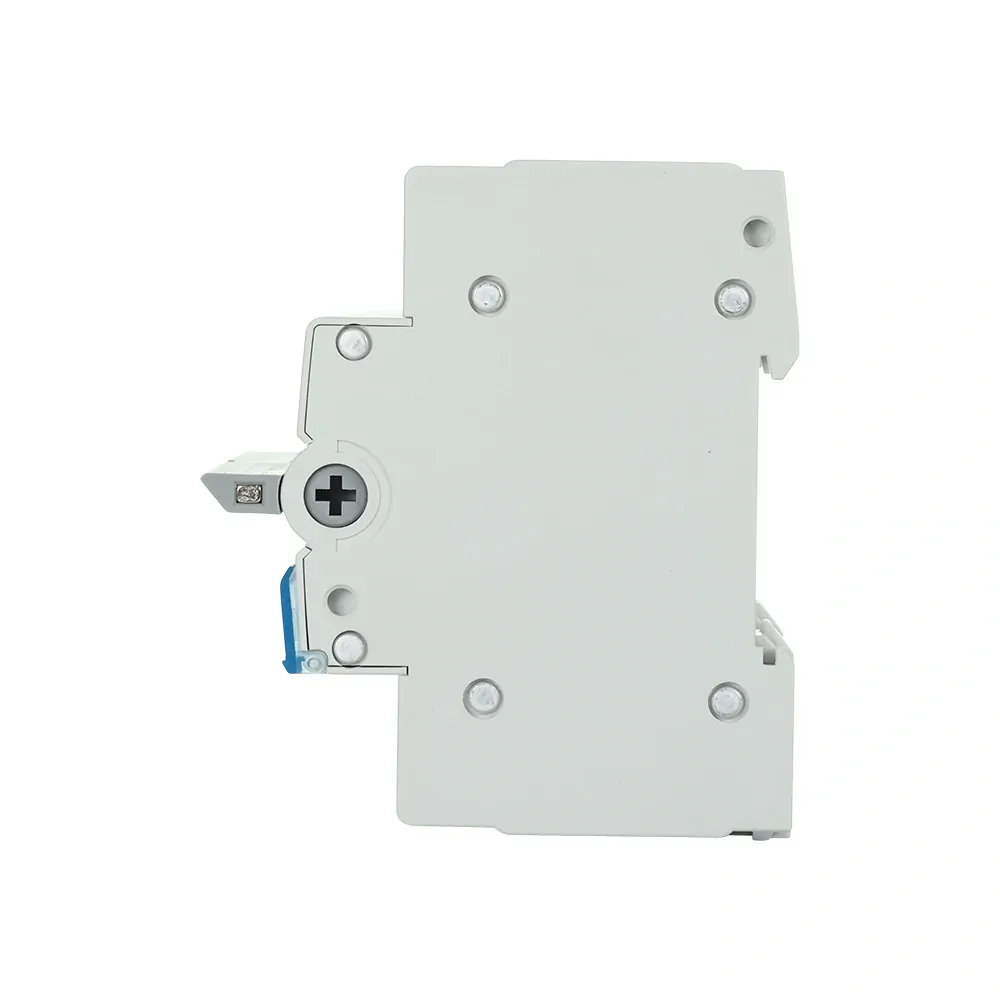

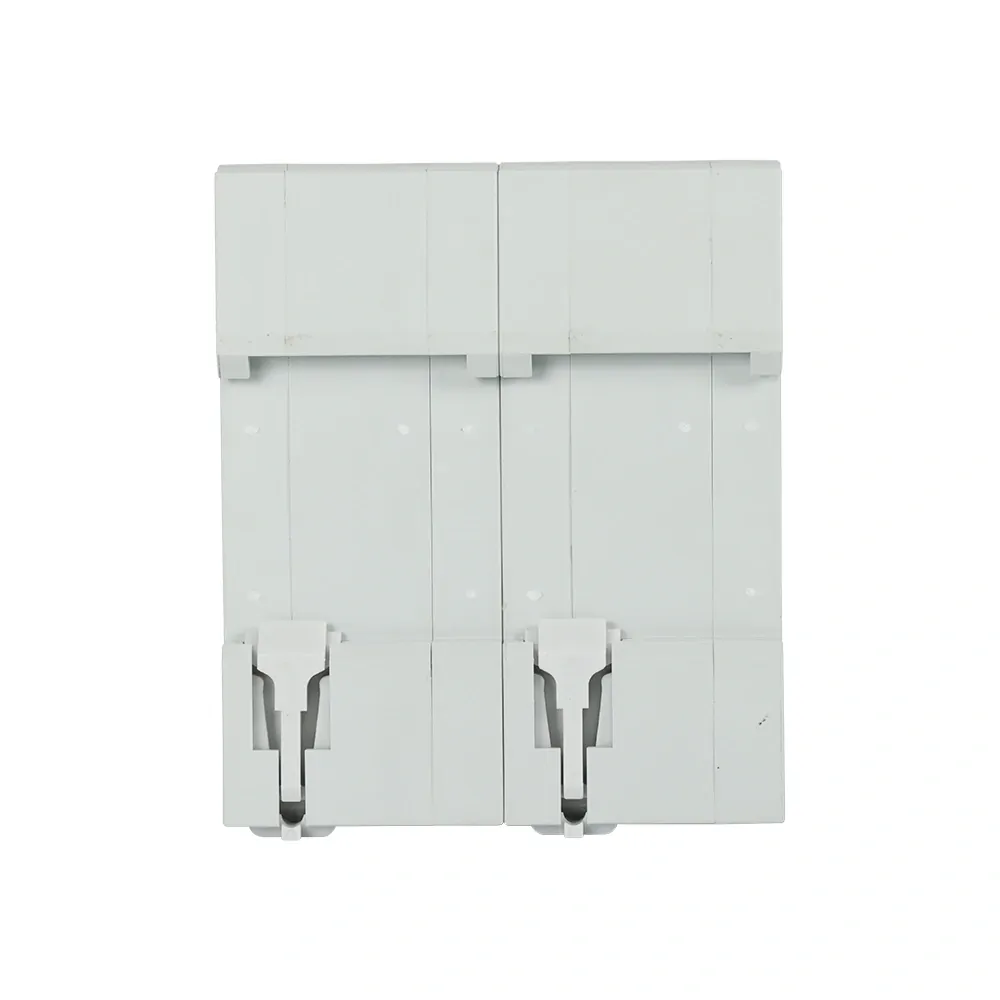

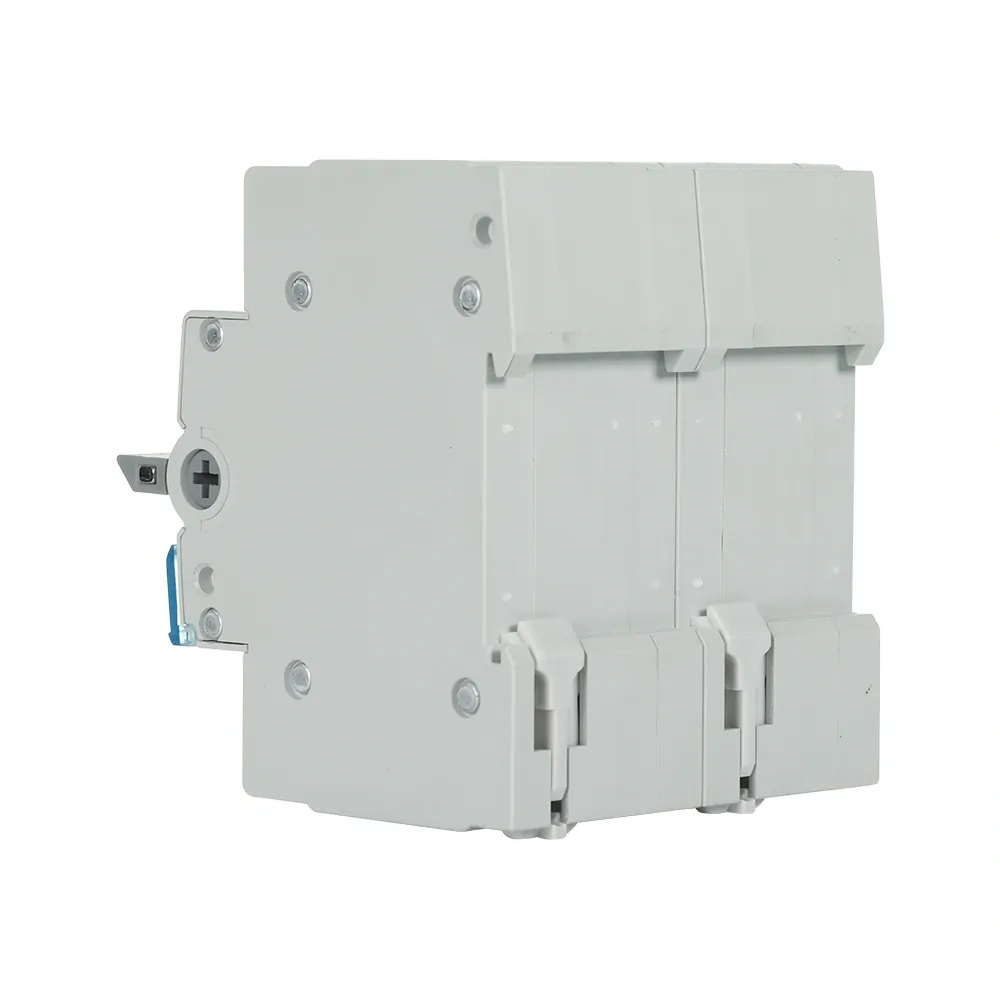

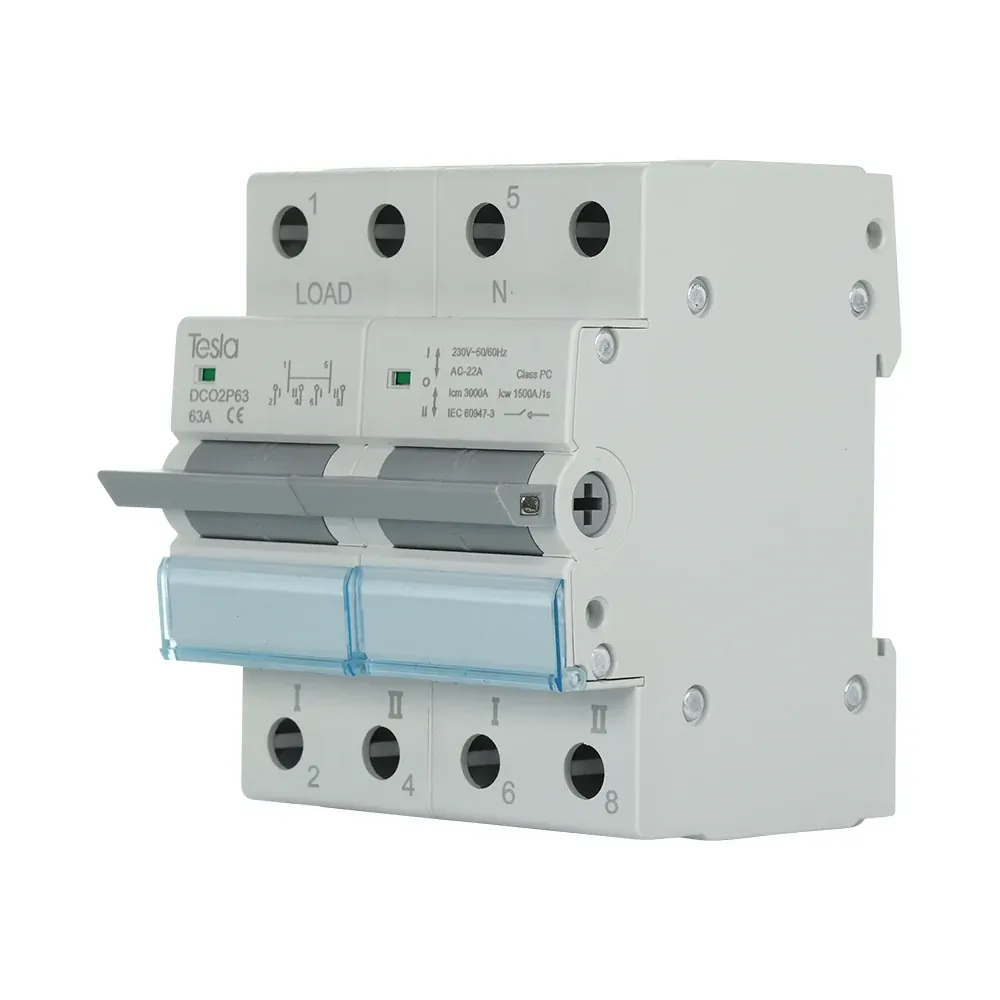

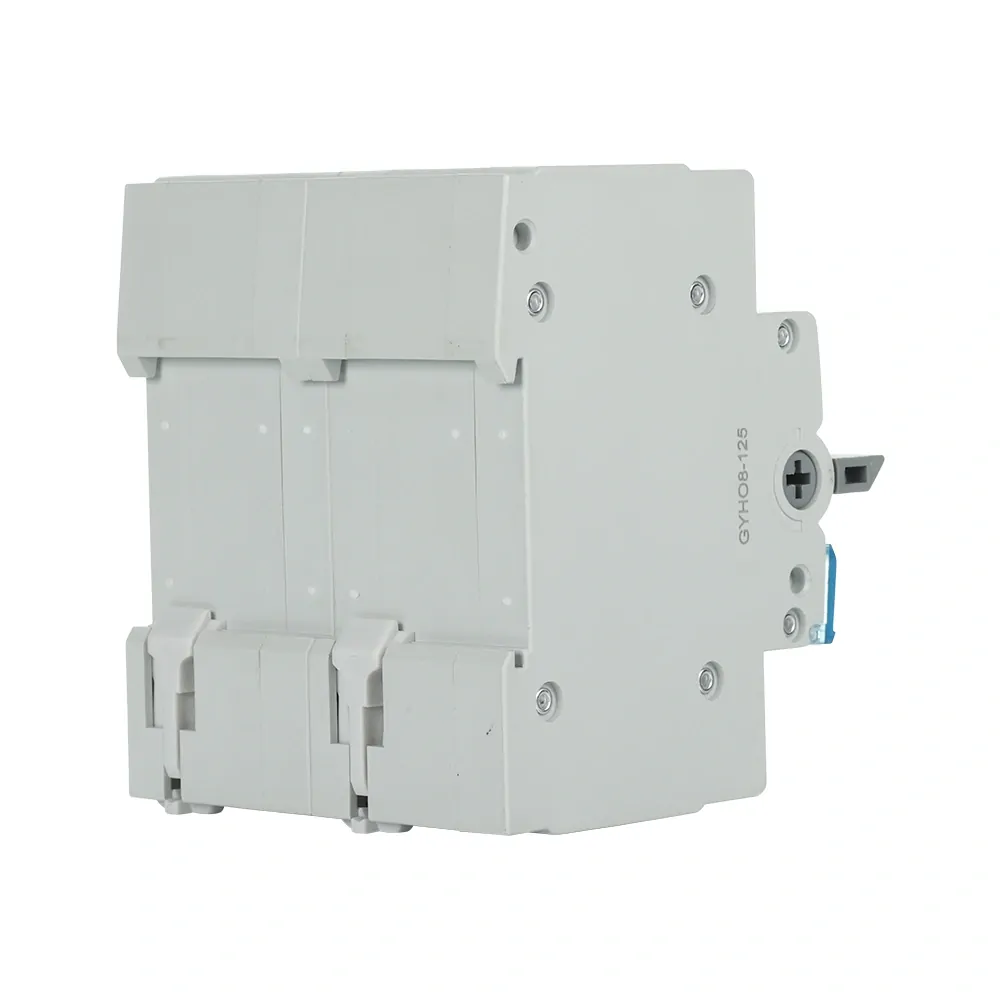

The Tesla DCO2P63 Changeover Switch allows safe switching between two power sources with a centre off position for complete mains disconnection. This 2 pole switch is rated at 63A, operates at 230V AC, and complies with IEC 60947-3 standards. Its modular 4-module design ensures easy installation in various setups.
Built for durability, it handles short circuit currents up to 3000A and offers a mechanical life of 10,000 cycles. Compact dimensions (85mm H x 72mm W x 75mm D) make it suitable for tight spaces.
Q: What is the voltage rating of the DCO2P63 switch?
A: It operates at 230V AC with an insulation voltage of 440V.
Q: Can the switch handle short circuit conditions?
A: Yes, it supports up to 3000A short circuit current.
Q: What cable size is recommended for installation?
A: It fits cables up to 25mm² with a tightening torque of 2Nm.
| Specification | Details |
|---|---|
| Model Number | DCO2P63 |
| Number of Poles | 2 |
| Number of Modules | 4 |
| Rated Operational Voltage (Ue) | 230 V |
| Frequency | 50/60 Hz |
| Rated Insulation Voltage | 440 V |
| Voltage Type | AC |
| Rated Operational Current AC21 (Category B) | 63 A |
| Acceptable Current Rating AC22 (Category A) | 63 A |
| Short Circuit Current | 3000 A |
| Rated Current | 63 A |
| Standard | IEC 60947-3 |
| Height | 85 mm |
| Width | 72 mm |
| Depth | 75 mm |
| Cable Size | 25 mm² |
| Tightening Torque | 2 Nm |
| Operating Temperature | -20°C to 50°C |
| Mechanical Life | 10,000 Cycles |
Warranty starts from Invoice Date
Domestic Use: 2 Year
Commercial Use: 2 Year
Warranty Method: Return to Sparky Direct
GTIN: 710497785204
