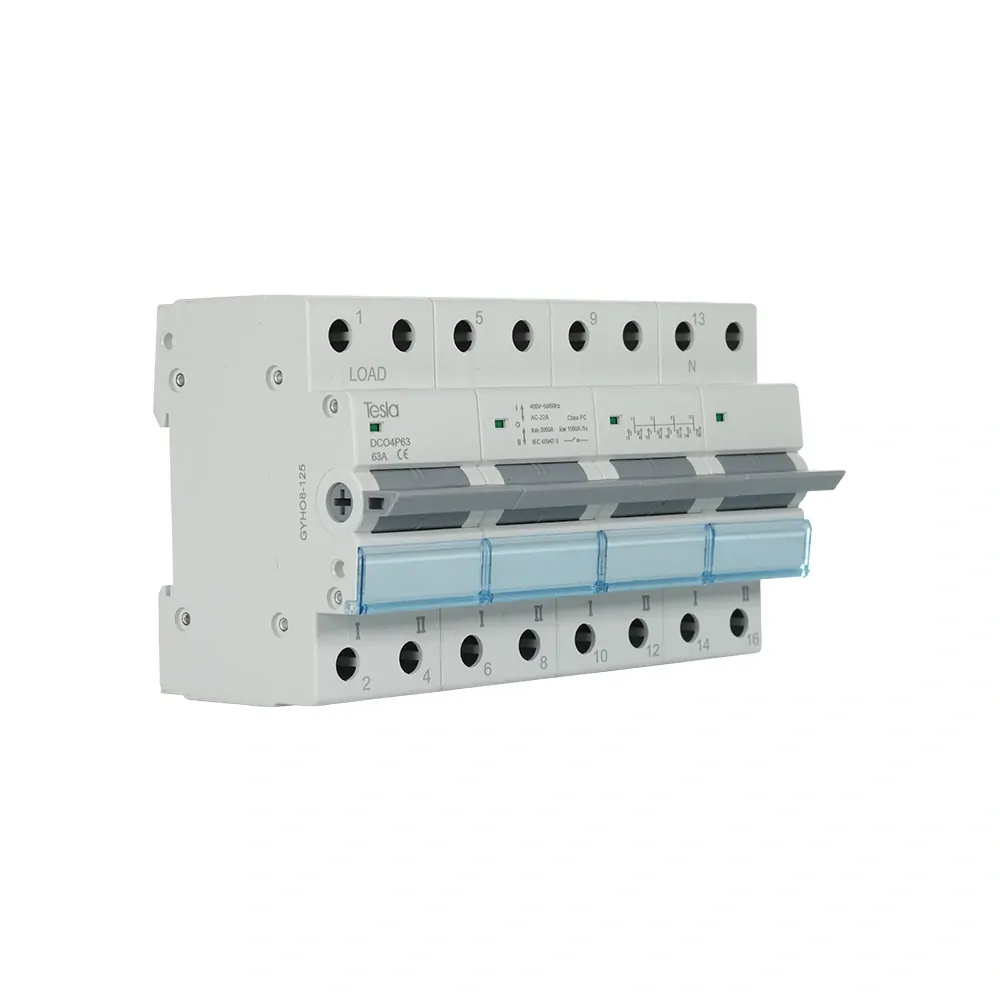

Tesla DCO4P63 - Changeover Switch 4 Pole 63 Amp

Tesla DCO4P63 - Changeover Switch 4 Pole 63 Amp

Hurry! 10 items left!

Price	$168.19
	Collect 168 Everyday Rewards points Log in to MyDeal to link your card
Shipping	$15.95 Australia-wide
	24-48 hour dispatch See delivery details

Quantity

Add to wishlist

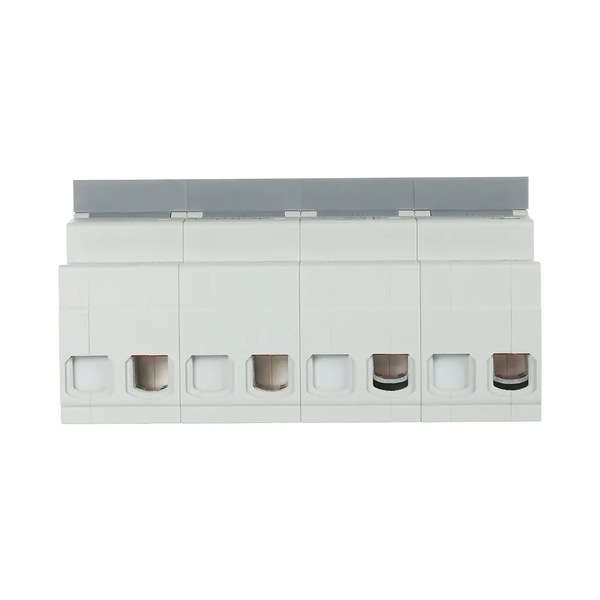

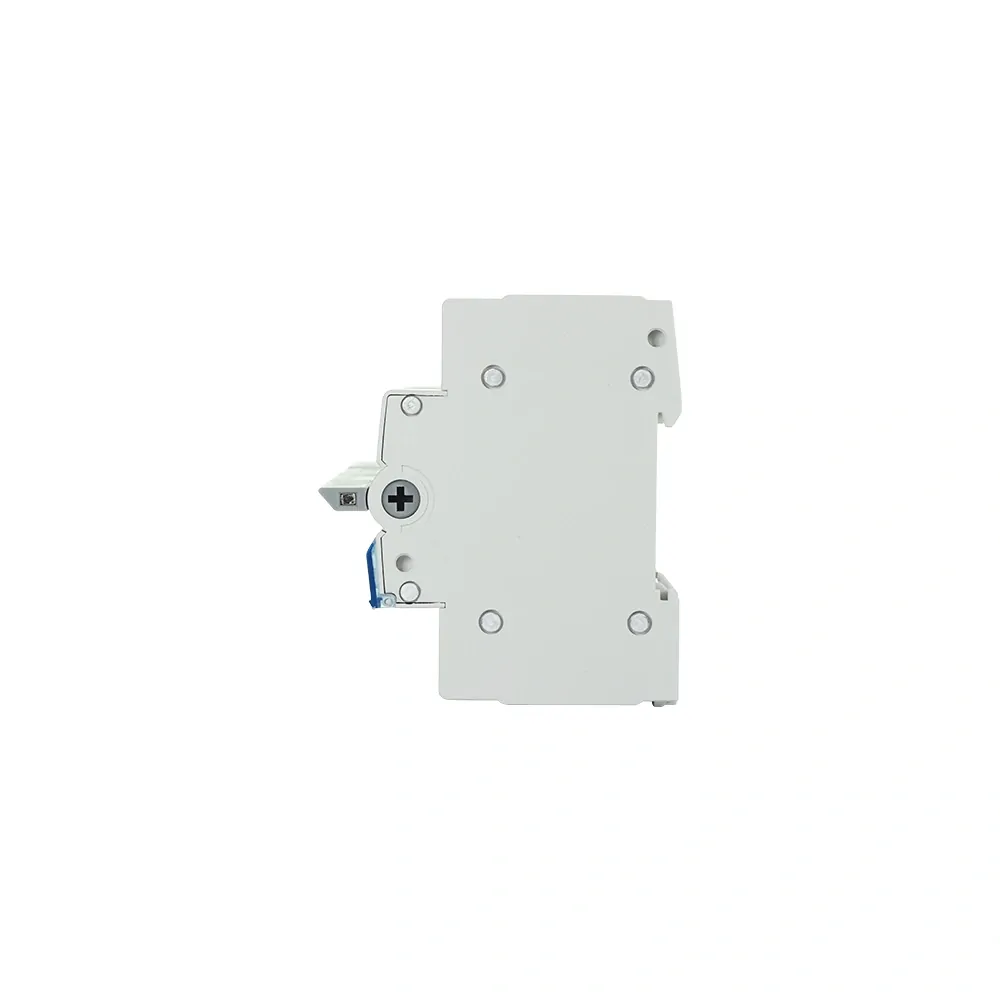

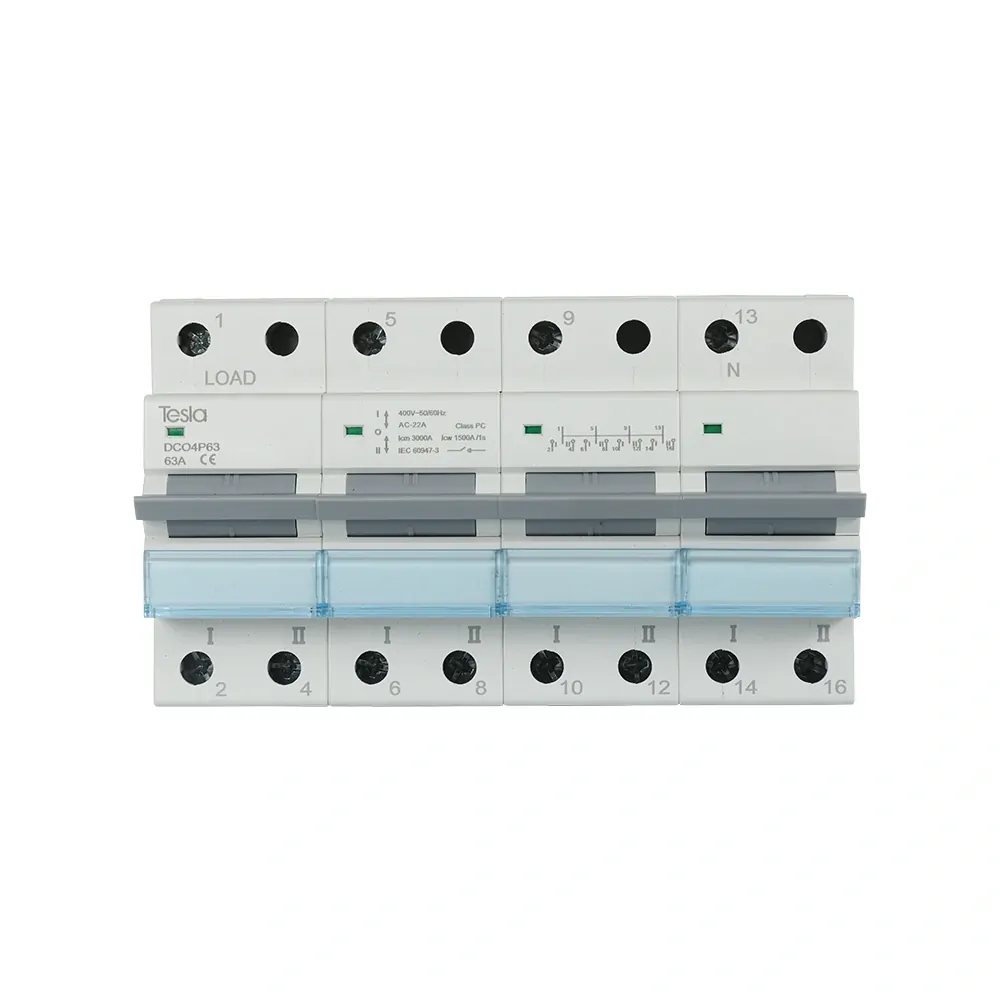

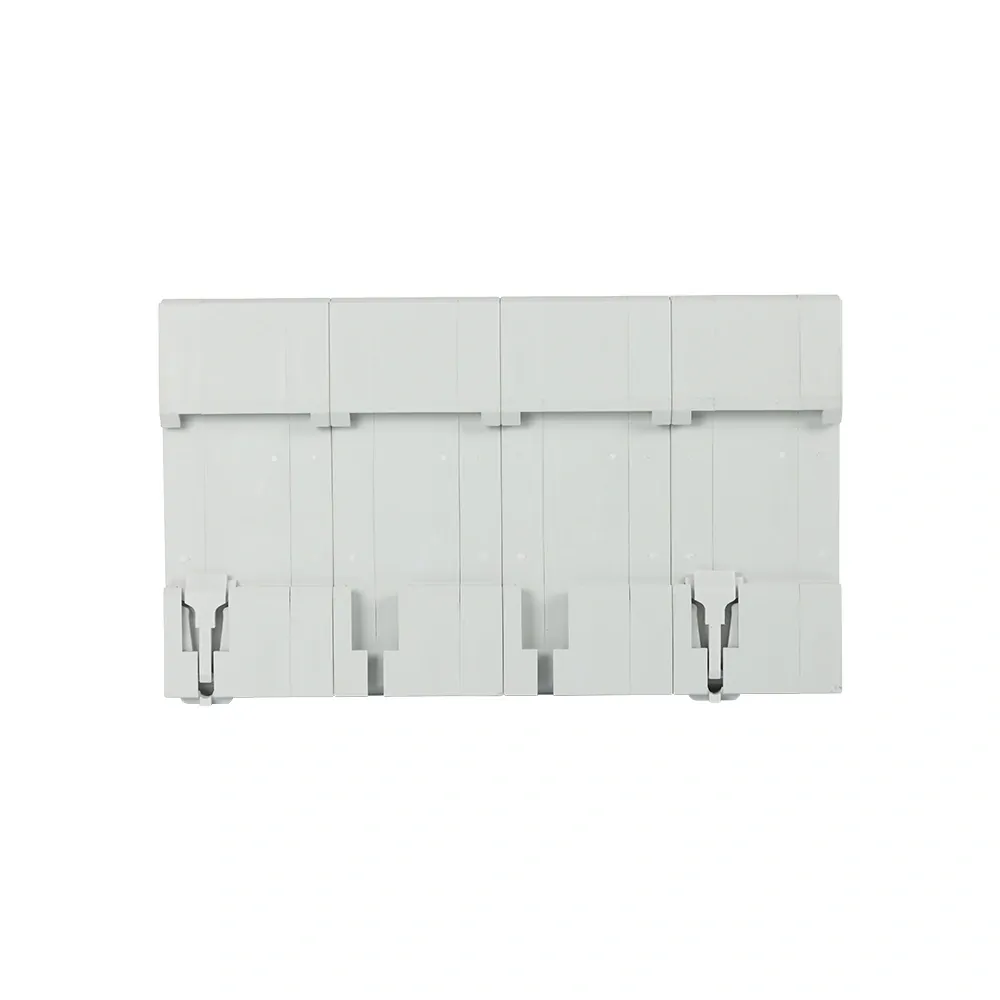

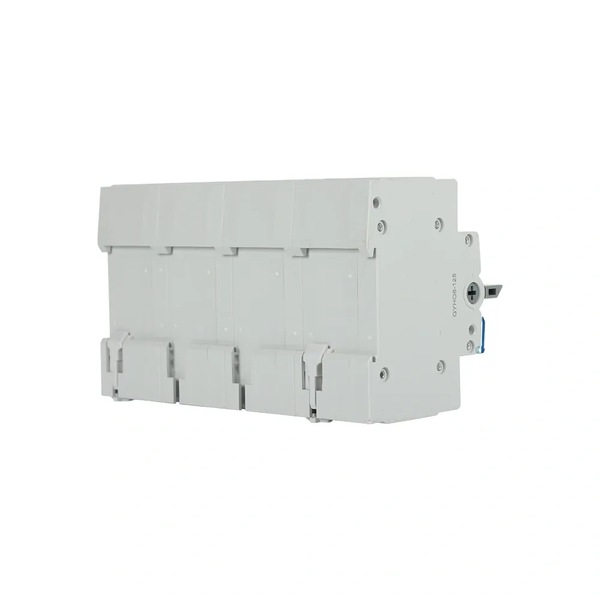

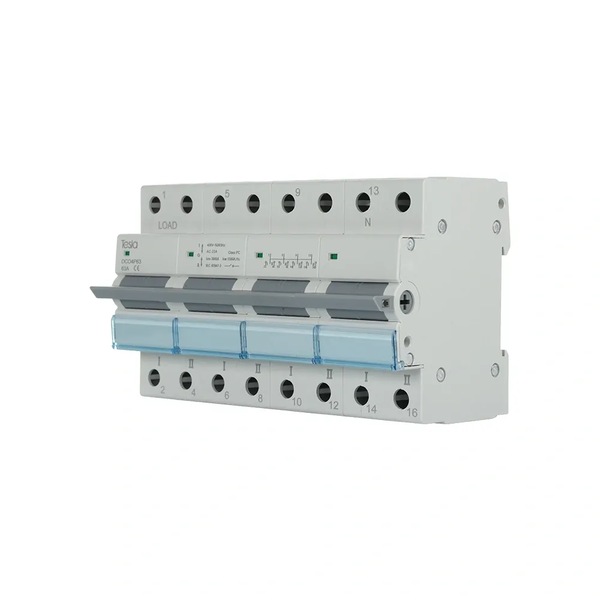

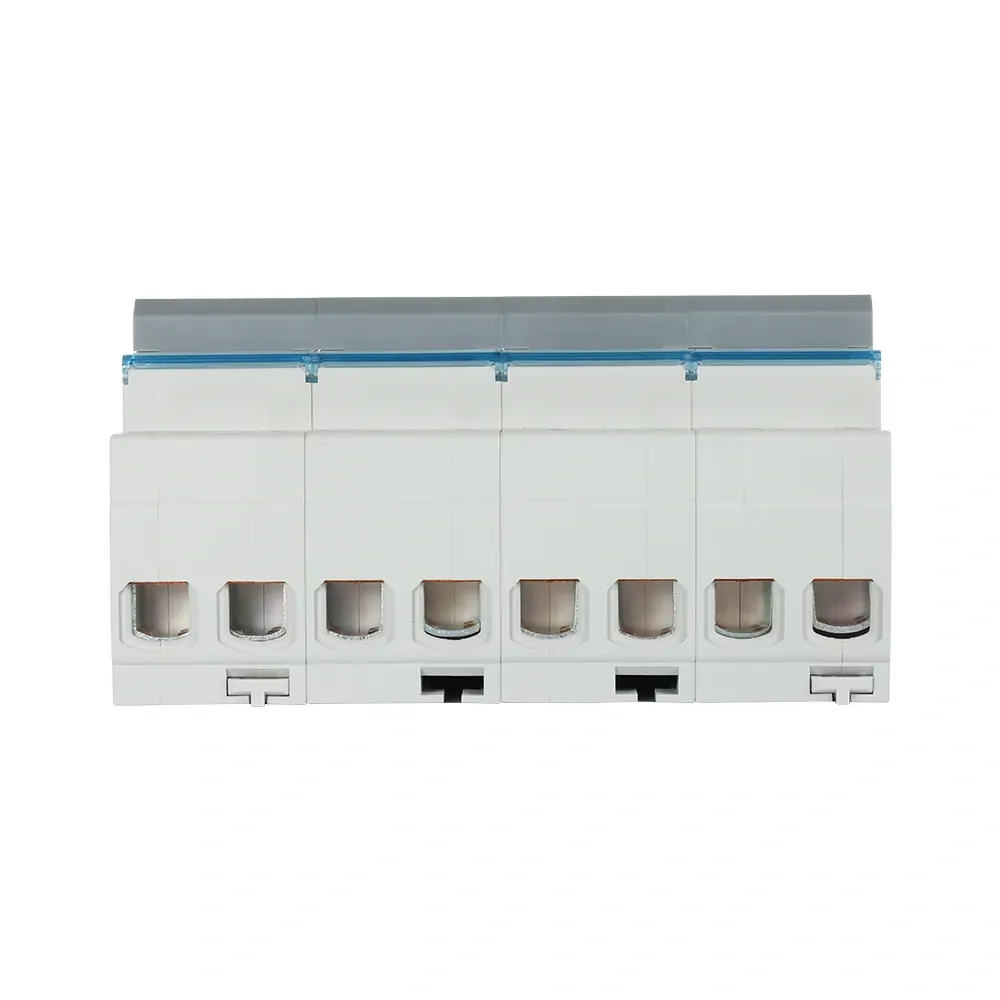

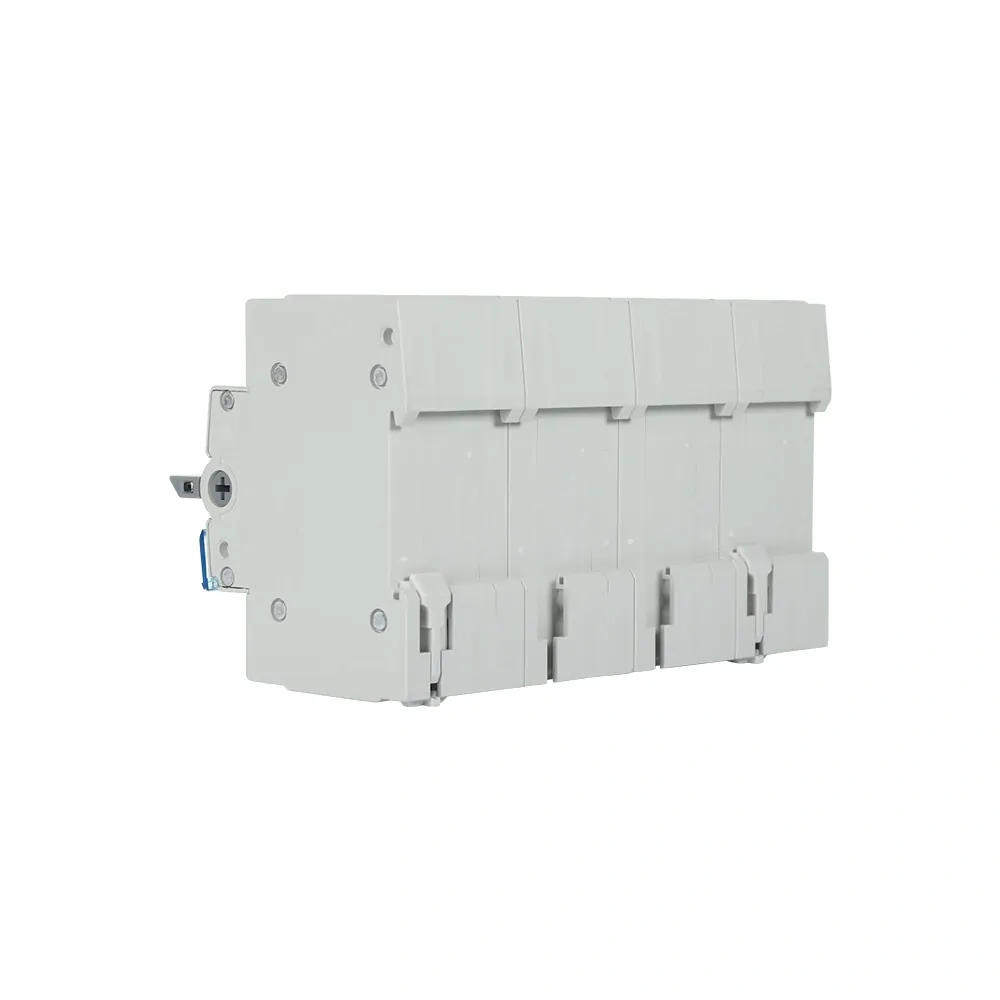

Tesla DCO4P63 | Changeover Switch 4 Pole 63 Amp

The Tesla DCO4P63 Changeover Switch provides safe and reliable switching between two power sources in AC systems. This 4 pole switch is rated at 63A and operates at 400V, making it suitable for multi-phase installations. It features a centre-off position, ensuring complete disconnection from the mains before switching to an alternative power source. Built to IEC 60947-3 standards, the DCO4P63 delivers consistent performance and operational safety.

The modular 8-module design allows for easy integration into electrical panels. With a mechanical life of 10,000 cycles and the ability to handle short circuit currents up to 3000A, this switch is built for durability. Its compact size, measuring 144mm in width, 85mm in height, and 75mm in depth, makes it ideal for a variety of applications.

Tesla DCO4P63 Features

4 pole, 63A rating
Centre-off position for safe switching
Modular 8-module design for easy installation
Operates in -20°C to 50°C environments
10,000 cycle mechanical life
Short circuit rating of 3000A

DCO4P63 FAQ

Q: What is the voltage rating of the DCO4P63 switch?
A: It operates at 400V AC with an insulation voltage of 440V.

Q: Can the switch handle short circuit conditions?
A: Yes, it supports up to 3000A short circuit current.

Q: What cable size is recommended for installation?
A: It accommodates cables up to 25mm² with a tightening torque of 2Nm.

Specifications:

Specification	Details
Model Number	DCO4P63
Number of Poles	4
Number of Modules	8
Rated Operational Voltage (Ue)	400 V
Rated Insulation Voltage	500 V
Voltage Type	AC
Frequency	50/60 Hz
Rated Current	63 A
Short Circuit Current	3000 A
Cable Size	25 mm²
Tightening Torque	2 Nm
Operating Temperature	-20°C to 50°C
Mechanical Life	10,000 Cycles
Height	85 mm
Width	144 mm
Depth	75 mm
Standard	IEC 60947-3

Warranty starts from Invoice Date

Domestic Use: 1 Year
Commercial Use: 1 Year
Warranty Method: Return to Sparky Direct

SKU: DCO4P63
