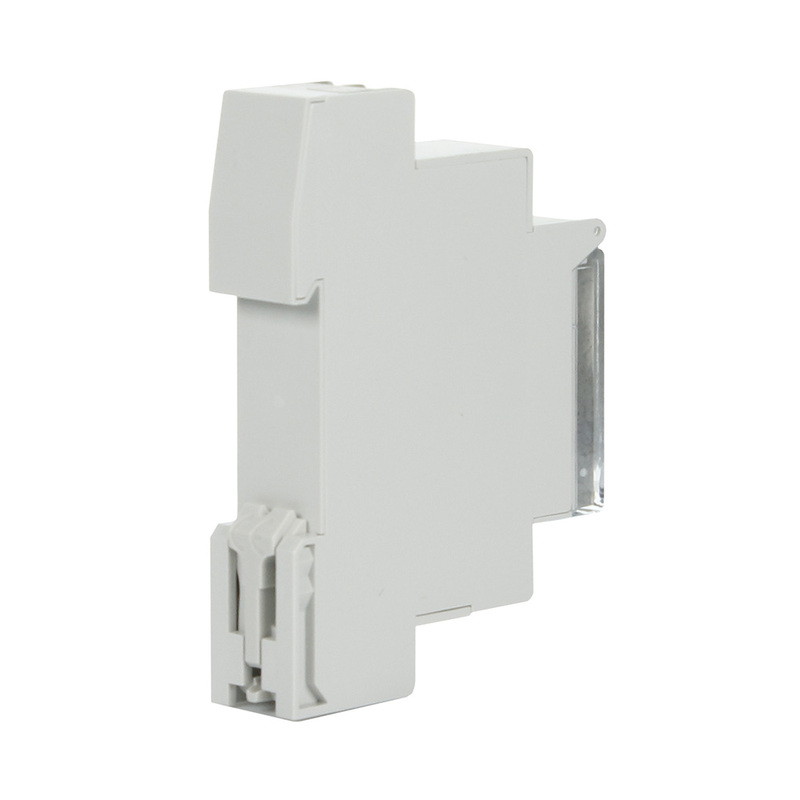

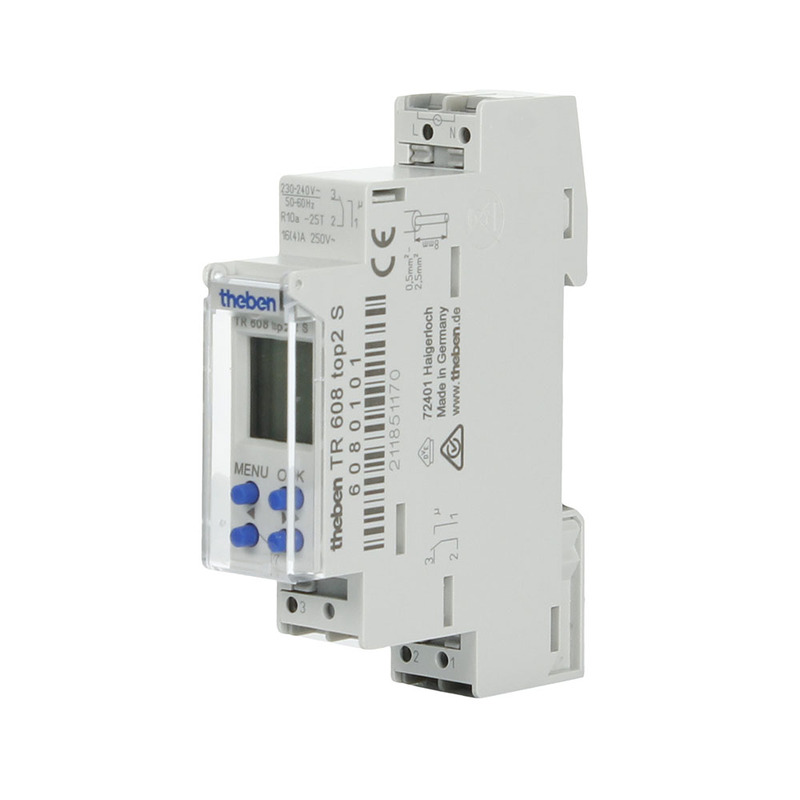

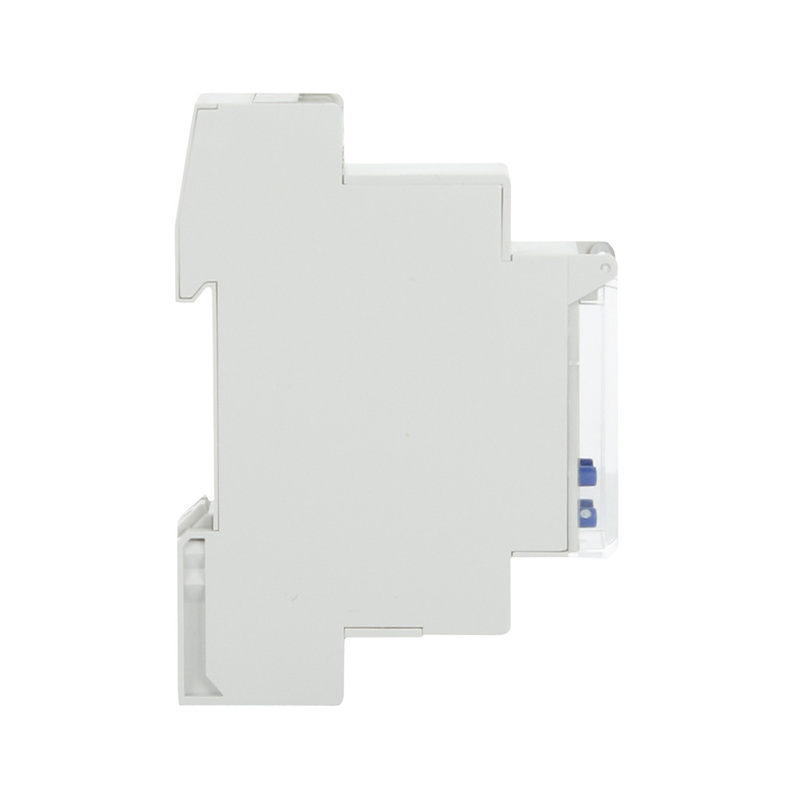

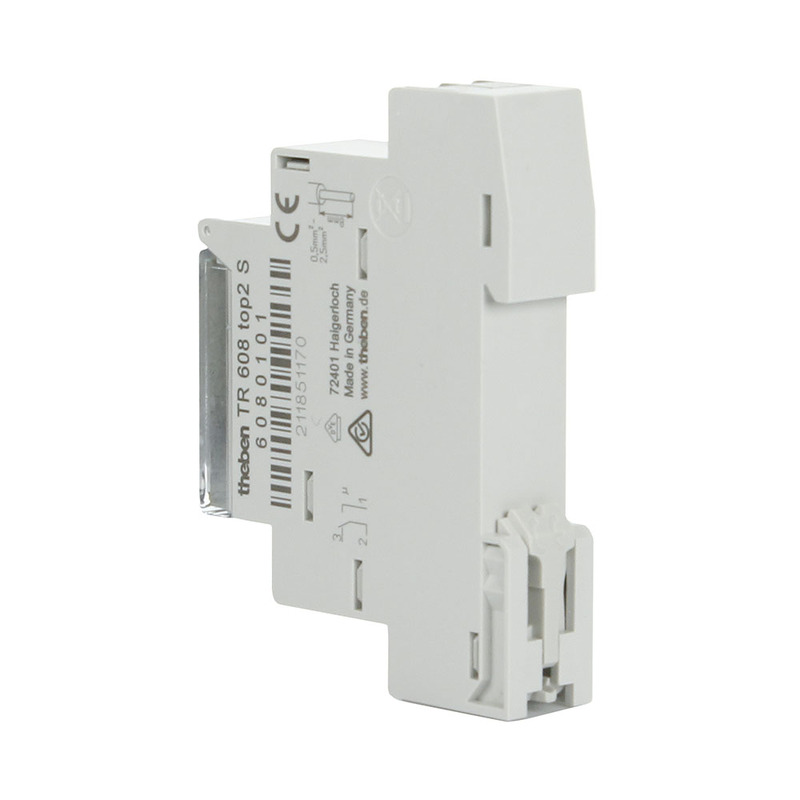

Theben TR608top2S - Digital time switch 1 channel - 7day - plug-in terminals - 1 module

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Image 8
Hurry! 11 items left!
$155.55

Collect 155 Everyday Rewards points

Log in to MyDeal to link your card
$15.95 Australia-wide

Dispatch in 2 business days

Sold & shipped by Sparky Direct Pty Ltd
Secure ways to pay at checkout
Theben TR608top2S | Digital time switch 1 channel | 7 days | plug-in terminals |1 module

Digital 1 channel time switch with weekly program and 56 memory locations

If you are controlling a motor or element, you must use a contactor otherwise you may burn the timer out.

Features

  • Digital time switch with weekly program
  • 1 channel
  • 56 memory locations
  • DuoFix spring terminals
  • For 2 conductors each
  • Wire or strand (with or without wire end sleeve)
  • Wire diameter: 0.5 - 2.5 mm²
  • Button for releasing the plug-in connection
  • Text-oriented user guidance in display
  • Preset date and time
  • fully operable without mains connection
  • Interface for OBELISK top2 memory card (PC programming)
  • 2. insertable switching program
  • Copying programs
  • Storing programs
  • 10-year power reserve (lithium battery)
  • ON-OFF switching times
  • Switching preselection
  • Permanent switching ON/OFF
  • Integrated operating hour counter
  • Reset option
  • Service function for monitoring maintenance intervals
  • Holiday program
  • Permanent switching ON/OFF
  • PIN coding
  • Automatic summer/winter time changeover
  • can be deactivated
  • Date rule options are already stored for Europe, the USA and other countries
  • own date rule options or changeover around set dates are available
  • Made in Germany

You may need to install a contactor so you do not burn out the timer especially if you are controlling motors or elements.

Specifications:

Operating voltage 230 – 240 V AC
Frequency 50 – 60 Hz
Width 1 modules
Installation type DIN rail
Type of contact Changeover contact
Switching output Phase-independent
Opening width < 3 mm (µ)
Program Weekly program
Program functions EIN-AUS
Number of channels 1
Number of memory locations 56
Power reserve 10 years
Switching capacity at 250 V AC, cos φ = 1 16 A
Switching capacity at 250 V AC, cos φ = 0,6 4 A
Incandescent/halogen lamp load 1000 W
Energy saving lamps 30 W
LED lamp < 2 W 6 W
LED lamp 2-8 W 60 W
LED lamp > 8 W 60 W
Fluorescent lamp load (conventional) not corrected 1000 W
Fluorescent lamp load (conventional) series-corrected 1000 W
Fluorescent lamp load (conventional) parallel-corrected 80 W 12 µF
Switching capacity min. ~10 mA
Shortest switching times 1 min
Time accuracy at 25 °C typical ± 0,25 s/day (quartz)
Time basis Quartz
Stand-by consumption ~0.4 W
Memory card supplied
Test approval VDE
Type of connection DuoFix spring terminals
Display LCD-Anzeige mit Textzeile
Keyboards 4 touch buttons, 1 reset button
Housing and insulation material High-temperature resistant, self-extinguishing thermoplastic
Type of protection IP 20
Protection class II according to EN 60 730-1
Voltage 230 V AC
Ambient temperature -25°C ... 55°C

Warranty starts from Invoice Date

Domestic Use: 1 Year
Commercial Use: 1 Year
Warranty Method: Return to Sparky Direct

GTIN: 4003468600115
