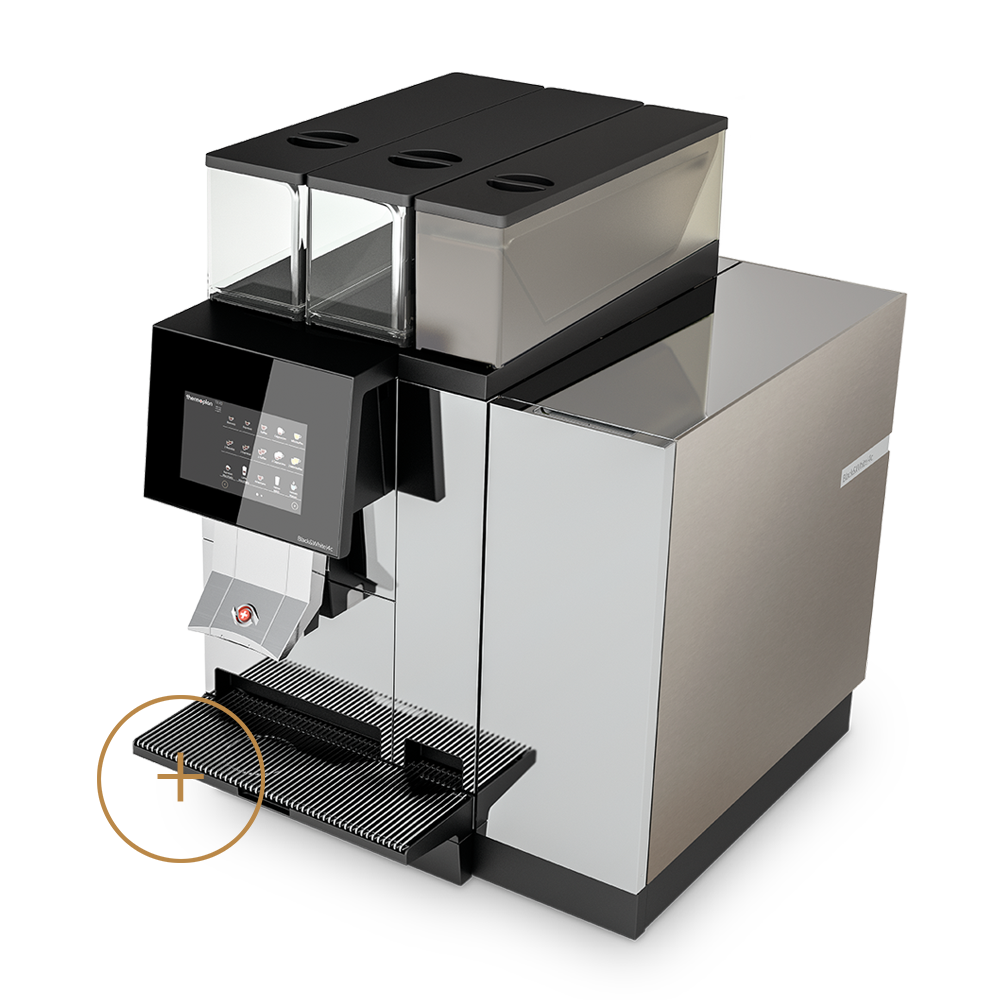

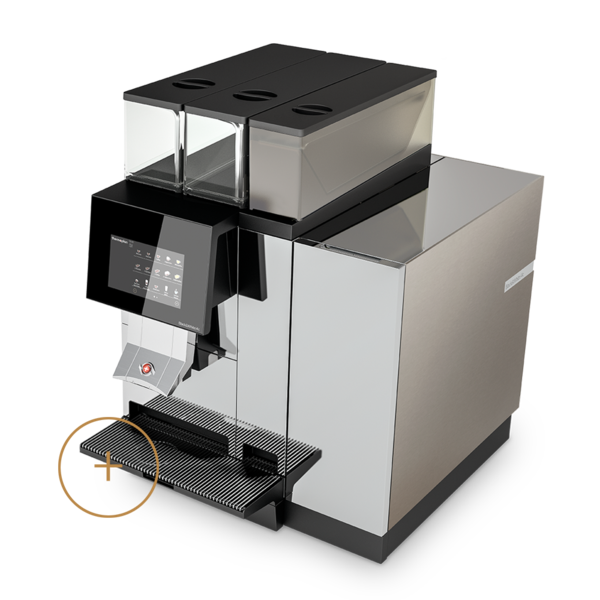

Thermoplan Black&White4 Compact CTMP Automatic Coffee Machine With 1 Grinder And Powder Unit

Image 1
Hurry! 10 items left!
$24376.55

Collect 24376 Everyday Rewards points

Log in to MyDeal to link your card
$9.95 Australia-wide
Sold & shipped by Di Pacci Coffee Company
Secure ways to pay at checkout

This fully automatic coffee machine from Thermoplan features a built-in grinder and powder unit, allowing you to brew the perfect cup every time. With its compact design and state-of-the-art technology, you can enjoy a truly convenient and customizable coffee experience. Perfect for the modern coffee lover looking for a professional-quality brew.






Brief description
The fully automatic coffee machine BW4c CTM P / CTM P RS prepares coffee specialties as well as milk-based coffee beverages in constantly high quality.
The cooling unit RS integrated on the left side holds a maximum of 4 liters of chilled milk in the plastic milk container with lid included. Alternatively, the milk
supply can come from the original package. On the right, there is the only 92 mm-wide powder unit with a capacity for 2 kg of chocolate powder for vending
machines.




Special features
The coffee machine BW4c CTM P / CTM P RS is equipped with the module system developed by Thermoplan. The modules (mechanic and hydraulic module)
can be serviced or exchanged in the shortest amount of time reducing downtimes to a minimum. The fully automatic machine is equipped with the patented
milk foam technology of Thermoplan. At the touch of a button the BW4c CTM P / CTM P RS creates milk foam, which can be varied manually to individual
needs



.
Operation
Central operating and information unit is the capacitive 7" touchscreen display. The cover glass is made of 3mm-thick tempered glass and is resistant against
scuffs and scratches. There are approximately 25 language versions of the software available in order to simplify operation of the machine. The four programmed user groups (self-service, barista, manager, technician) have different application authorizations and setting options which are regulated with access
codes.




Cleaning
The fully automatic coffee machine has an automatic cleaning system. The cleaning intervals are pre-programmed for simplification and to ensure quality of the
beverages. A complete cleaning cycle lasts approximately 25 minutes and is certified in compliance with HACCP, HCV and NSF (guarantees the safety of food
and protects consumers from health risks). The cleaning process is performed for the coffee and milk foam system each in closed circuits. The use of cleaning
keys simplifies handling and ensures exact cleaning agent dosing. The cleaning process for the powder unit must be performed after 7 days. Once this process
is manually started it is automatically performed and a sequence of the cleaning steps which must be performed manually are shown on the display. The outer
surface of the fully automatic coffee machine can be cleaned with a conventional, mild cleaning agent, however.




Overview of the advantages



* Powder unit for chocolate powder for vending machines
* Straight-line, ergonomic design
* Modular machine assembly
* Unique milk foam system
* Touchscreen with capacitive 7" display
* Intuitive operation
* Efficient tablet cleaning circuit cleaning system
* Integrated telemetry interface



Additional options



* Cold milk/foam
* External refrigerator option
* ThermoplanConnect telemetry system
* Interface for payment connection (compatible with coin checker, coin
exchanger, credit card payment, automatic beverage registration, etc.)
* Customer-specific outer material and machine color
* Lockable containers (bean, refrigerator, grounds drawer)
* Water tank operation
* 1 coffee grinder



Features






  • Dimensions (W x D x H) CTM 320 x 600 x 646 mm Weight 49 kg


  • CTM RS 490 x 600 x 646 mm Weight 69 kg


  • Coffee outlet height 85-175 mm (manually adjustable)


  • Bean hopper 1 kg each


  • Powder hopper 2 kg


  • Refrigerator RS 4 liters


  • Power connection 220-240 VAC / 50-60 Hz / 2700-3150 W / 12-13 A


  • Water connection 3/8", pressure 2-4 bar / 30-60 psi, no chlorine, TDS 70-200 ppm, hardness 5-8o dH (8-14o fH),


  • pH 6.8-7.4, alkalinity < 100 ppm, iron < 0.25 ppm





































































Capacity per hour

180 espressos
120 coffees
100 cappuccinos
90 teas
80 chocolate beverages
Amount depends on cup size and machine setting


Bean hopper
1 kg


Powder container

2 kg


Electrical connection


220-240 VAC / 50-60 Hz
2700-3150 W / 12-13 A



Dimensions



320 x 600 x 646 mm (W/D/H)




Weight







49 kg







Placement
The coffee machine is installed and operated on horizontal, level and fireproof surfaces. The device must have a safety distance of at least 50 mm on all sides.
There must be a minimum height clearance of at least 350 mm. The distance of the machine and the...

MPN: RAN3638S

Estimated Delivery Time Frame:2-7 business days
