[TL-SG1005LP] 5 Port Gigabit Desktop Switch with 4 Port PoE+ Up To 40W

Image 1
Image 2
Image 3
Limited Stock
$67.35

Collect 67 Everyday Rewards points

Log in to MyDeal to link your card
$14.95 Australia-wide (per-item)

Dispatch in 2 business days

Sold & shipped by Best Deal Computers
Secure ways to pay at checkout

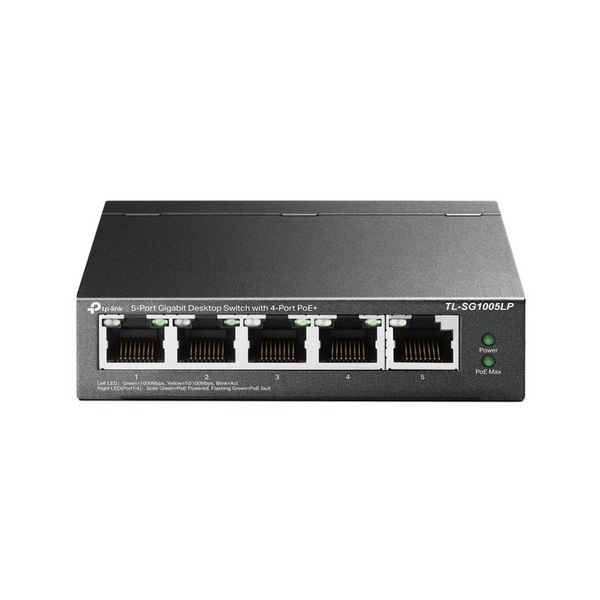

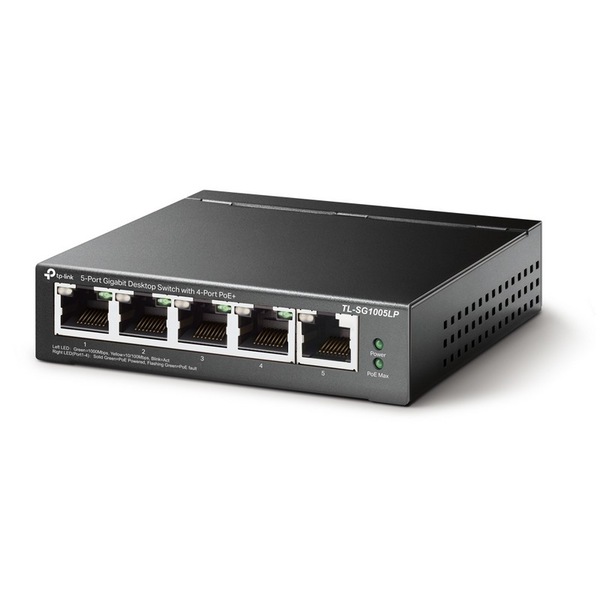

TP-Link TL-SG1005LP 5-Port Gigabit Desktop Switch with 4-Port PoE+

Features:
  • 5x 10/100/1000 Mbps RJ45 ports
  • With four PoE+ ports, transfers data and power on one single cable
  • Works with IEEE 802.3af/at compliant PDs
  • 802.1p/DSCP QoS enable smooth latency-sensitive traffic
  • Supports PoE Power up to 30 W for each PoE port
  • Supports PoE Power up to 40 W for all PoE ports*

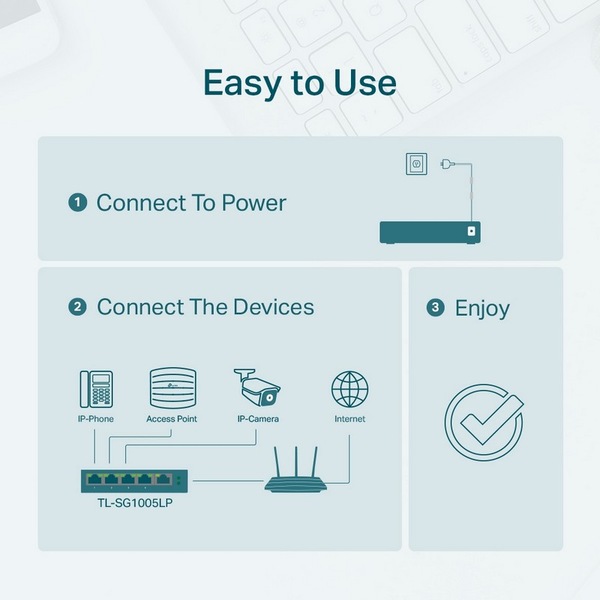

  • Plug and play, no configuration and installation required
Learn more about TP-Link PoE technology >
Specifications:

HARDWARE FEATURES

  • Interface :• 5x 10/100/1000Mbps RJ45 Ports
    • AUTO Negotiation
    • AUTO MDI/MDIX
  • Network Media :• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
    • EIA/TIA-568 100? STP (maximum 100m)
    • 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
    • EIA/TIA-568 100? STP (maximum 100m)
    • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
    • EIA/TIA-568 100? STP (maximum 100m)
  • Fan Quantity :Fanless
  • External Power Supply :External Power Adapter (Output: 53.5 VDC / 0.81 A)
  • Packet Forwarding Rate :7.44 Mpps
  • PoE Ports (RJ45) :• Standard: 802.3 af/at compliant
    • PoE Ports: Ports 1-4
    • Power Supply: 40 W
  • Mac Address Table :2K
  • Jumbo Frame :16 KB
  • Switching Capacity :10 Gbps
  • Dimensions ( W x D x H ) :3.9x3.9x1.0 in (99.8x98x25 mm)
  • Max Power Consumption :• 4.12 W (220/50 Hz. no PD connected)
    • 47.5 W (220/50 Hz. with 40 W PD connected)
  • Max Heat Dissipation :• 14.05 BTU/h (no PD connected)
    • 161.98 BTU/h (with 40 W PD connected)

SOFTWARE FEATURES

  • Advanced Features :• Compatible With IEEE 802.3af/at Compliant PDs
    • Mac Address Auto-Learning And Auto-Aging
    • IEEE 802.3x Flow Control
    • 802.1p/DSCP QoS
    • IGMP Snooping
  • Transfer Method :Store-And-Forward

OTHERS

  • Certification :FCC, CE, RoHS
  • Package Contents :• TL-SG1005LP
    • Power Adapter
    • Installation Guide
  • Environment :• Operating Temperature: 0-40 ? (32-104 ?);
    • Storage Temperature: -40-70 ? (-40-158 ?)
    • Operating Humidity: 10-90% RH non-condensing
    • Storage Humidity: 5-90% RH non-condensing

SKU: WSC-770900906633
