TP-LINK TLSF1005P 5 Port 10/100 Switch 4 X PoE+ 58W Extend Mode 250M

TP-LINK TLSF1005P 5 Port 10/100 Switch 4 X PoE+ 58W Extend Mode 250M

Hurry! 19 items left!

$49

Collect 49 Everyday Rewards points

Log in to MyDeal to link your card

Sold & shipped by Radio Parts

Secure ways to pay at checkout

Features

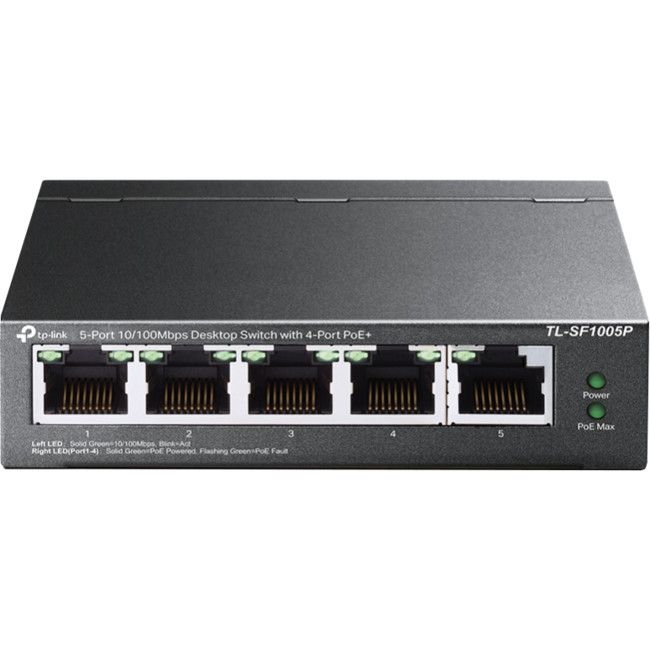

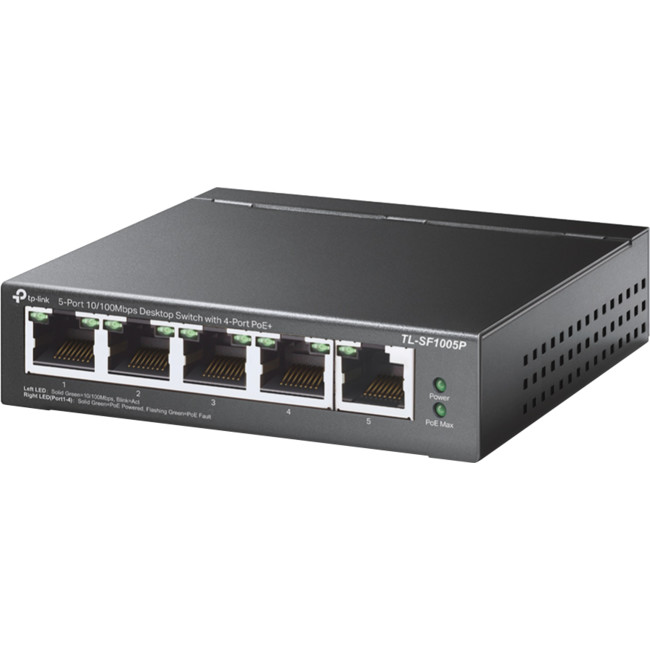

5-Port 10/100Mbps Desktop Switch with 4-Port PoE+

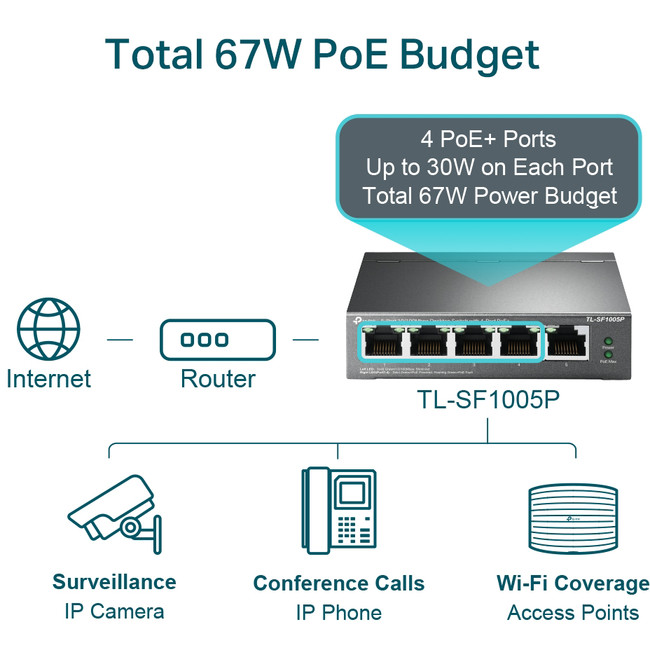

Dedicated 4-Port PoE+ Switch (67 W Budget) for Numerous Applications Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 67 W PoE power budget* for the 4× PoE ports opens up a wide range of applications, such as surveillance for offices, dormitories,and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.

Ideal for IP Surveillance ?Up to 250 m Transmissions With extend mode, the PoE transmission distance reaches up to 250 m**?perfect for IP Camera deployment in large areas.

Priority Video Quality Guaranteed Quality of sensitive applications like video monitoring in critical business areas is guaranteed by offering higher priority options for ports 1-2 when one-touch Priority Mode is on.

Intelligent Power Management When total power consumption exceeds 67 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port's power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.

Durable Metal Casing The interior components of TL-SF1005P are protected by a high-quality metal casing to ensure a long product life. Having passed anarray of stringent reliability tests, TL-SF1005P delivers switching performance you can depend on. {taab Specifications

HARDWARE FEATURES
Interface	• 5× 10/100 Mbps RJ45 Ports(4× 10/100 Mbps 802.3af/at PoE+ ports) • AUTO Negotiation • AUTO MDI/MDIX
Network Media	• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • EIA/TIA-568 100 STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum100m) • EIA/TIA-568 100 STP (maximum 100m)
Fan Quantity	Fanless
Physical Security Lock	Yes

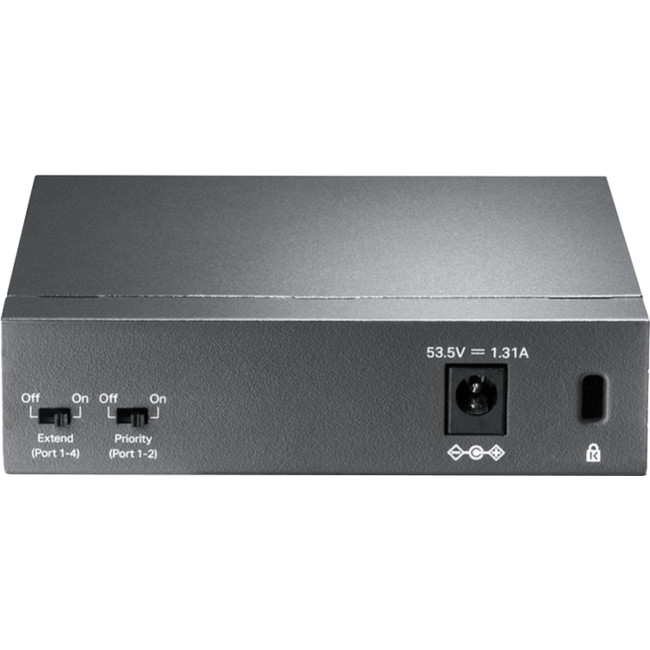

External Power Supply	External Power Adapter (Output: 53.5 VDC / 1.31 A)
Packet Forwarding Rate	0.744 Mpps
PoE Ports (RJ45)	• Standard: 802.3 af/at compliant • PoE Ports: Ports 1-4 • Power Supply: 67 W
Mac Address Table	2K
Jumbo Frame	2 KB
Switching Capacity	1 Gbps
Dimensions ( W x D x H )	3.9 x 3.9 x 1.0 in (99.8 x 98 x 25 mm)
Max Power Consumption	• 1.9 W (220 V / 50 Hz, no PD connected) • 74 W (220 V / 50 Hz, with 67 W PD connected)
Max Heat Dissipation	• 6.48 BTU/h(no PD connected) • 252.34 BTU/h(with 67 W PD connected)

SOFTWARE FEATURES
Transmission Method	Store-And-Forward
Advanced Functions	• Compatible With IEEE 802.3af/atCompliant PDs • Extend Mode Button (Ports 1-4) • Priority Mode Button (Ports 1-2) • Mac Address Auto-Learning And Auto-Aging • IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode

OTHERS
Certification	FCC, CE, RoHS
Package Contents	• TL-SF1005P • Power Adapter • Installation Guide
Environment	• Operating Temperature: 0-40 °C (32-104 °F) • Storage Temperature: -40-70 °C (-40-158 °F) • Operating Humidity: 10-90% RH non-condensing • Storage Humidity: 5-90% RH non-condensing

Weight: 0.762
