TP-LINK TLSF1024 24 Port Ethernet Switch / Hub Desk Mount 10/100M 24 PORT ETHERNET SWITCH

Image 1
Hurry! 3 items left!
$96

Collect 96 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by Radio Parts
Secure ways to pay at checkout
Overview

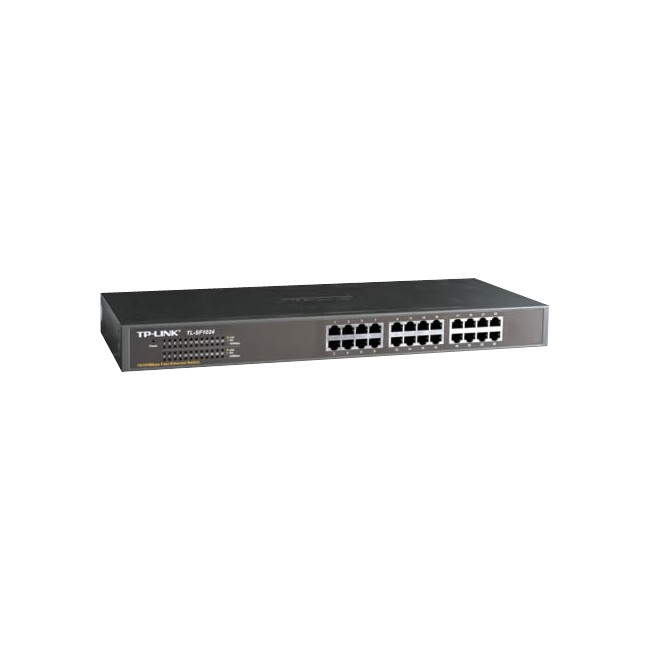

TL-SF1024 TP-LINK 24-port Unmanaged 10/100M Rackmount Switch
  • 24 × 10/100M RJ45 ports.
  • Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for half-duplex mode.
  • Supports MAC address auto-learning and auto-aging (MDI/MDIX).
  • LED indicators for monitoring power, link, activity, 100Mbps.
  • Standard 19″ rack-mountable steel case.
  • Internal universal power supply.

TL-SF1024 24-port 10/100Mbps Ethernet Switch is designed for SOHO (Small Office/Home Office) or workgroup users. Rack-mount size metal case design combined with a safety certified internal power supply make the Switch the most robust product which is very cost-effective for less than 24 users environment.

The plug-and-play and auto-negotiation capabilities allow the Switch to auto-detect its link partner (Ethernet adapter, for example) with the best speed. Each port provides full bandwidth (Maximum with 200Mbps in full duplex mode) without a traditional hub's collision phenomenon downgrading the performance.

All ports can be the uplink (cascade) port which is provided to link to another Switch for more ports expansion. Easy read LED indicators are supported for cable installation and normal operation diagnostics. The Switch can be used on desktop and rack-mount.



Specifications
Specifications

Standards and ProtocolsIEEE802.3, 802.3u, 802.3x, CSMA/CD, TCP/IP
Basic Function
  • Wire-Speed Performance
  • MAC Address Auto-Learning and Auto-Aging
  • IEEE802.3x flow control for Full-Duplex Mode and backpressure for Half-Duplex Mode
Backbound Bandwidth4.8Gbps
MAC Address Table8k
Forwarding Rate
  • 10BASE-T: 14880pps/port
  • 100BASE-TX: 148800pps/port
Transmission MethodStore-and-Forward
Ports24 × 10/100Mbps Auto-Negotiation RJ45 ports (Auto MDI/MDIX)
Network Media
  • 10Base-T: UTP category 3, 4, 5 cable (maximum 100m)
  • EIA/TIA-568 100 STP (maximum 100m)
  • 100Base-Tx: UTP category 5, 5e cable (maximum 100m)
  • EIA/TIA-568 100 STP (maximum 100m)
LED IndicatorsPower, Link/Act, 100 Mbps
Safety & EmissionFCC, CE
Operating Temperature 0°C~40°C (32°F~104°F)
Storage Temperature −40°C~70°C (−40°F~158°F)
Operating Humidity 10%~90% non-condensing
Storage Humidity 5%~90% non-condensing
Dimensions (W×D×H)440mm × 180mm × 44mm (17.3″ × 7.1″ × 1.7″)
Power100-240V AC, 50/60Hz

Weight: 2.377
