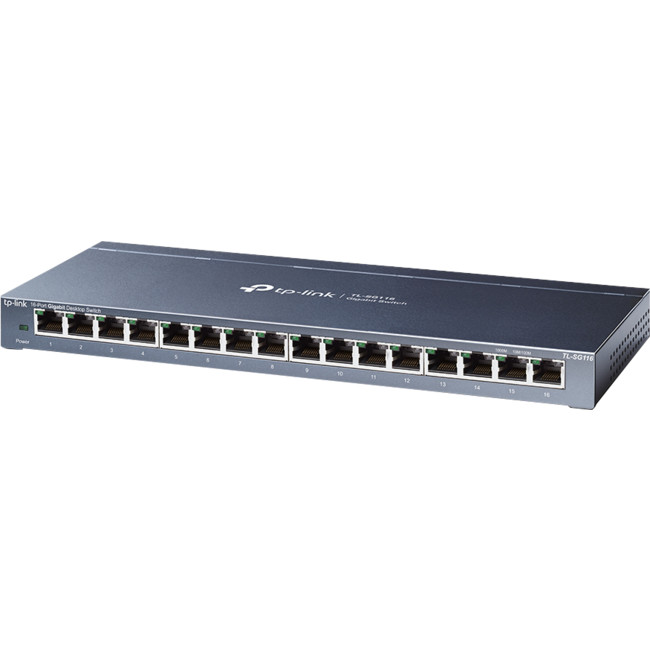

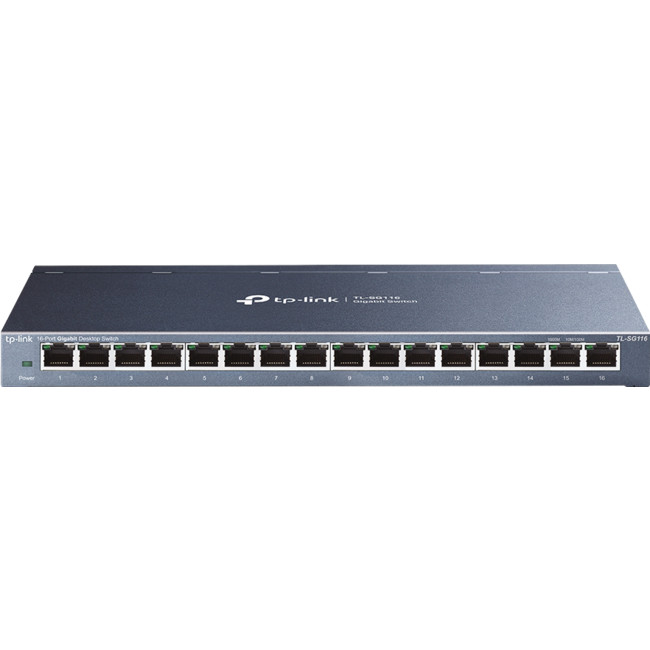

TP-LINK TLSG116 16 Port Giga Desktop Switch Auto-Negotiation Rj45 Ports Supporting Auto-Mdi/Mdix
,gravity=Center,allowExpansion)
,gravity=Center,allowExpansion)
,gravity=Center,allowExpansion)
Collect 96 Everyday Rewards points
Collect 96 Everyday Rewards points
The TP-Link 16-Port 10/100/1000 Mbps Desktop Switch provides you with an easy way to make the transition to Gigabit Ethernet. Increase the speed of your network server and backbone connections, or make Gigabit to the desktop a reality. Plug and Play design, with no configuration required, makes the product easy to use. Moreover, TL-SG116 adopts lower power consumption design. With the innovative energy-efficient technology, the TL-SG116 can save power consumption, making it an eco-friendly solution for your home or office network.
Featured with 16 10/100/1000 Mbps ports, TL-SG116 dramatically expands your network capacity, enabling instant large files transferring. So, power users in the home, office, work group, or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files across the network instantly.
You now have the choice to go green when upgrading to a gigabit network! This new generation TL-SG116 16-Port 10/100/1000 Mbps Desktop Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.
802.1p and DSCP QoS enable smooth latency-sensitive traffic such as voice and video, and IGMP Snooping optimises the Multicast data stream.
The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminate the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (either 10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance. Moreover, the fanless design ensures quiet operation.
HARDWARE FEATURES | Standards and Protocols | IEEE 802.3i / 802.3u / 802.3ab / 802.3x / 802.1p |
---|---|---|
Interface | 16 × 10/100/1000 Mbps Ports, Auto-Negotiation, Auto-MDI/MDIX | |
Fan Quantity | Fanless | |
Power Consumption | 10.0W Max. | |
External Power Supply | External Power Adapter (Output: 12V DC / 1.0A) | |
LED Indicator |
| |
PERFORMANCE | Packet Forwarding Rate | 23.8Mbps |
MAC Address Table | 8K | |
Packet Buffer Memory | 4.1Mb | |
Jumbo Frame | 10KB | |
SOFTWARE FEATURES | Advanced Features |
|
Transfer Method | Store and Forward | |
ENVIRONMENT | Operating Temperature | 0°C~40°C (32°F~104°F) |
Storage Temperature | −40°C~70°C (−40°F~158°F) | |
Operating Humidity | 10%~90%, non-condensing | |
Storage Humidity | 5%~90% non-condensing | |
GENERAL | Dimensions (W×D×H) | 286mm × 111.7mm × 25.4mm (11.26″ × 4.4″ × 1.0″) |
Package Contents |
| |
Certifications | CE, FCC, RoHS |
GTIN: 6935364084325
