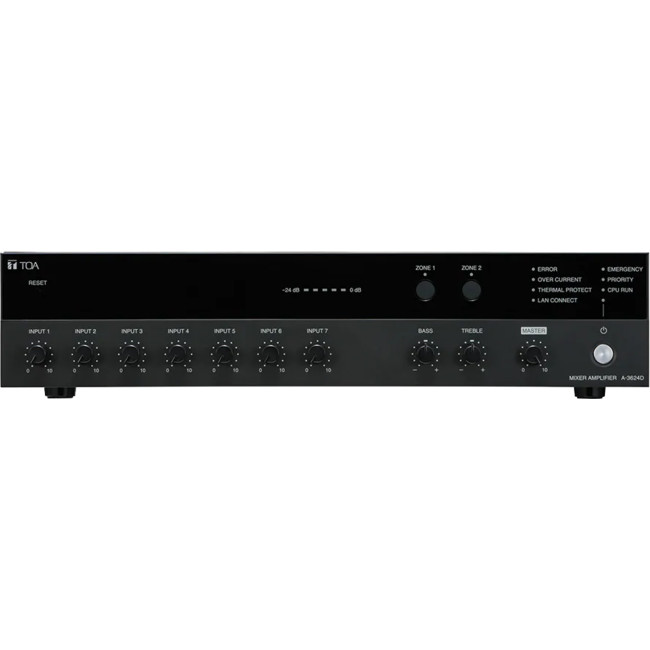

TOA A3648D 480W Network Class D Mixer Amp 2 Zone 7 Inputs 100V-18/16 Ohm

TOA A3648D 480W Network Class D Mixer Amp 2 Zone 7 Inputs 100V-18/16 Ohm

Hurry! 1 items left!

$1806

Collect 1806 Everyday Rewards points

Log in to MyDeal to link your card

Sold & shipped by Radio Parts

Secure ways to pay at checkout

TOA A3648D 240W MIXER AMPLIFIER

A-3600D Series Digital Mixer Amplifiers provide maximum flexibility with up to seven inputs, 4 microphone and 3 auxiliary inputs, and a 2-channel zone selector.

With a choice of 4 models from 60w up to 480W of power noapplication is to small or to big

The A-3600D Series mixer amplifier is ideal for paging announcement and BGM applications in schools, offices, and super markets.

Browser based control and monitoring from anywhere reduces your time troubleshooting and adjusting systems.

Feedback suppressor, input priorities, a sleek new appearance, and TOA's legendary quality and reliability makethis a perfect fit for background and foreground music, paging, and noise masking applications..

_

Key Features

TOA class D amplifiers for maximum efficiency.
Feedback Suppressor (Dynamic feedback filters).
Speaker EQ (3 points equalizer).
Assignable input priorities.
Built-in pre-announce chime.
IP protocol available

_

MODEL	POWER OUTPUT
A3606D	60W output power, high or low Z
A3612D	120W output power, high or low Z
A3624D	240W output power, high or low Z
A3648D	480W output power, high or low Z

_

Web Browser Interface

Connect the A3600D digital mixer amplifier to a network to access the on-board browser interface.

Static or dynamic host configuration protocol address assignment may be used.

Browser Interface allows access to:

Account ID (username and password) settings
System status, including real time display of input and output levels
Input priority settings
Speaker EQ settings ( 3 points equalizer )
Firmware updates

_

Remote Control

You can adjust the speaker volume either by the physical controls on the front panel of the amplifier, by the optional remote controller or on the Web browser.

IP control protocol is also available for further integrations and developments

_

Specification - A3648D

Power Source	100 - 240 V AC
Rated Output	480 W
Power/Current Consumption	601 W (rated output)
Frequency Response	50 Hz - 20 kHz ±3 dB (1/8 rated output)
Distortion	1 % or less at 1 kHz
Tone Control	Bass: ±10 dB at 100 Hz Treble: ±10 dB at 10 kHz
Signal to Noise Ratio	88 dB or more (Master volume: min) 76 dB or more (Master volume: max) 55 dB or more (INPUT 1 - 6) 72 dB or more (INPUT 7) (A-weighted)
Audio Input	INPUT 1 Note: MIC inputs are equipped with phantom power (24V DC INPUT 3 Note: Equipped with phantom power (24 V DC INPUT 5 MIC: -60 dB (1) LINE: -20 dB (1) INPUT 7: -20 dB (1) PWR AMP IN: 0 dB (1)
Input Bus	INPUT 1 - 4 : BUS 1 INPUT 5 INPUT 7 : BUS 2
Audio Output	SPEAKER OUT: Low impedance (4 - 16 )/ High impedance (DIRECT (ZONE 1/ZONE 2 is selectable REC OUT: 0 dB (*1) LINE OUT 1
Control Input	4 channels REMOTE VOLUME: Removable terminal block (4 pins) ZONE CONTROL IN: No-voltage make contact input
Control Output	POWER REMOTE OUT: Open collector output EMERGENCY OUT: Open collector output ZONE CONTROL OUT: Open collector output
Chime	1-note
Indicators	5-point LED output level meter
Operating Temperature	-10 °C to +40 °C (14 ?F to 104 ?F)
Operating Humidity	85 %RH or less (no condensation)
Finish	Panel: ABS resin Case: Surface-treated steel plate
Dimensions	420 (W) × 96.1 (H) × 313.1 (D) mm (16.54 x 3.78" x 12.33)
Weight	5.2 kg (11.46 lb)
Accessory	Power cord (2 m (6.56 ft)) ?1
Option	Rack mounting bracket: MB-25B Perforated panel : PF-013B
