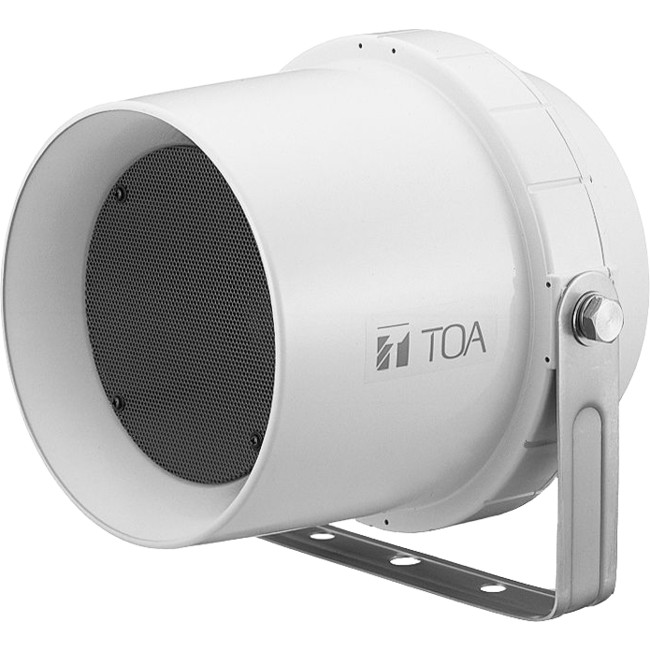

TOA CS-64BS 6W 100V LINE WD HORN AS7240.24:2018

The TOA CS Series music horn speakers,certified to Australian Standards AS 7240.24:2018 are ideal for indoor and outdoor commercial sound system applications for voice paging, background music and tone signalling distribution.

CS Series speakers offer wider frequency range up to 15kHz and superior sound quality.

Each includes a built-in 100V transformer with screwdriver-adjustable power taps.

All CS models are fully weather-resistant to withstand demanding environmental conditions with a sealed enclosure, full-range moisture-resistant cone speaker, stainless-steel mounting hardware and a protective punched net.

The enclosure is also coated with polyurethane resin paint to resist the fading effects of prolonged exposure to ultraviolet light. . 6W, 100V line. Certified to AS 7240.24:2018. Outdoor Type B. Stainless steel bracket and hardware

  • Round projection speaker for outdoor use
  • Lightweight and rugged construction
  • Exponential horn for improved directivity
  • High SPL
  • Complete with stainless steel bracket
  • Certifiedto Australian Standards AS 7240.24:2018

_

Application examples for this product:
  • Industrial facilities
  • Parking garages
  • Railway stations
  • Sport facilities
  • Stadiums
  • Highly humid locations (locker rooms of swimming pools and bathrooms)

_

Specifications

_

Frequency response

130 Hz - 13 kHz

Connection

Ceramic screw terminals, thermal fuse, externalconnection box, 5-wire BS-compliant

Sensitivity (1 W, 1 m)

96 dB (1 W, 1 m at 330 Hz to 3.3 kHz pink noise
93 dB (1 W, 1 m at 100 Hz to 10 kHz pink noise)
81 dB (1 W, 4 m at 100 Hz to 10 kHz pink noise)

Maximum sound pressure level (1 m) (value)

100 dB

Speaker component

12 cm cone-type (treated for splash proof)

Rated input (High Impedance)

6 W

Tappings

100 V : 1.7 k? (6 W) / 3.3 k? (3 W) / 10 k? (1 W)

70 V : 830 ? (6 W) / 1.7 k? (3 W) / 3.3 k? (1.5 W) / 10 k? (0.5 W)

Operating temperature

-20 ’ŠC to +55 ’ŠC ( -4 °F to 131 °F)

Finish

ABS resin, paint, papyrus white (RAL 9018 or equivalent)
Bracket: Stainless steel

Dimensions

233 x 224 x 249 mm (W x H x D)

Weight

1.7 kg

Accessory (included)

Terminal cover ...1
