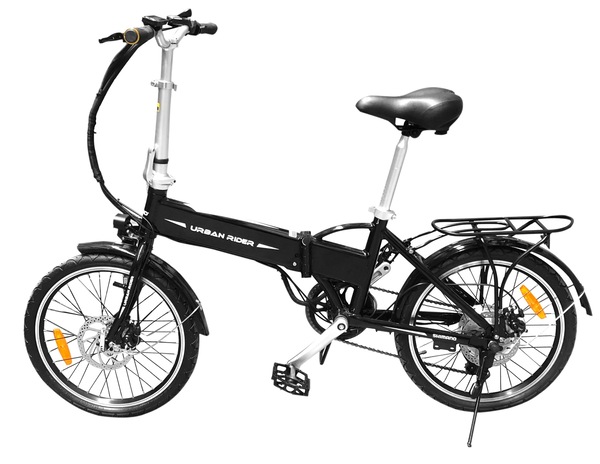

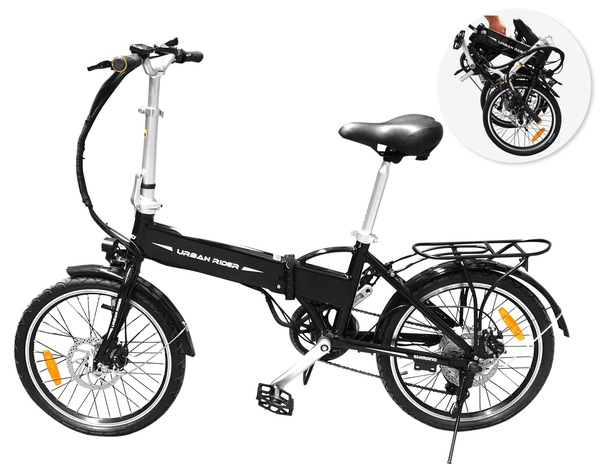

Folding Ebike Electric Bike 36V 9Ah 250W Motor Pedal Assist Shimano Gear Pas Bicycle Black

6 Reviews

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Image 8
Image 9
Image 10
Shop More Products
  • Folding E-Bike
  • Powerful Electric Motor
  • Shimano 7 Speed Gears
  • 36V 9Ah Samsung Li-ion Battery

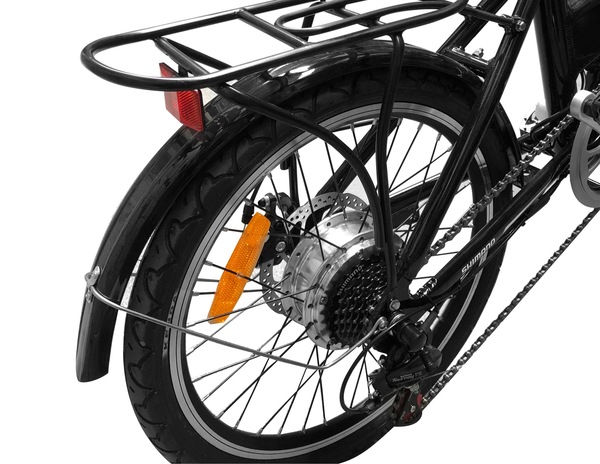

  • 36V/250W Brushless Motor
  • LCD Bike Computer
  • 25km/h Max. Speed
  • 90kg Weight Limit
  • Front / Rear Disc Brakes

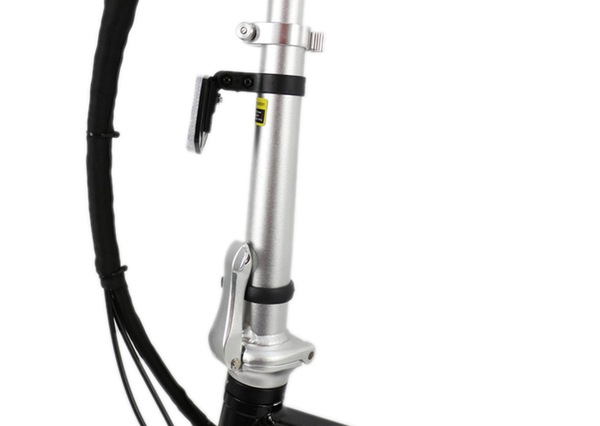

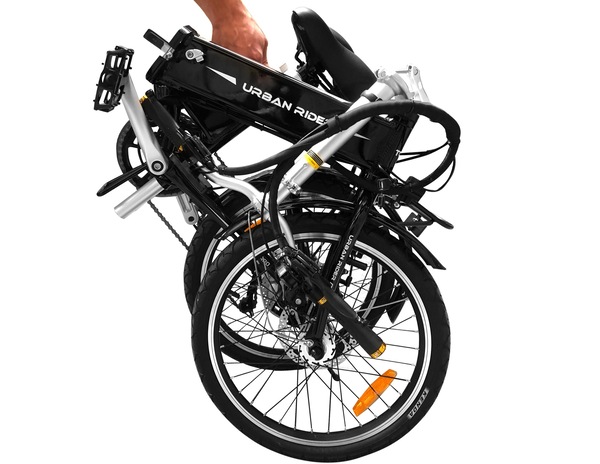

  • Quick Release Folding System

Specifications:

  • Model: A1-7
  • Wheel Size: 20”
  • Weight: 20kg
  • Dimensions (LxWxH): 1550mm x 550mm x 1030mm
  • Dimensions (Folded) (LxWxH): 800mm x 300mm x 580mm
  • Wheel Base: 1045mm
  • Frame: Aluminum Alloy
  • Load (max.): 90kg
  • Speed (max.): 25 km/h

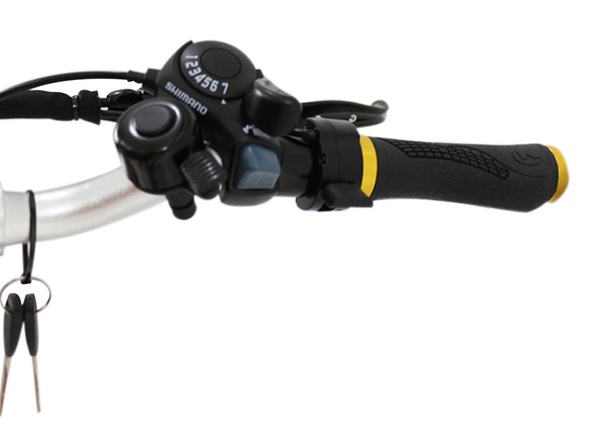

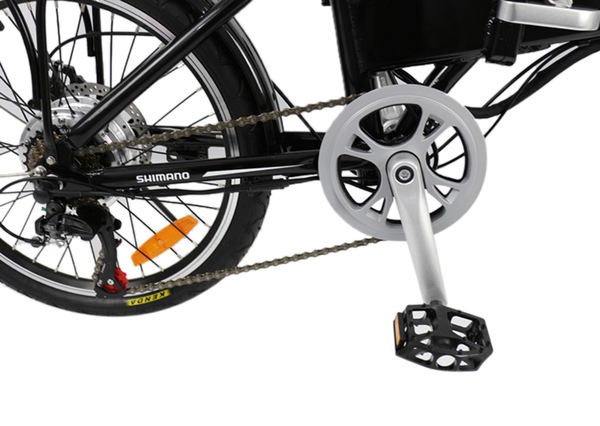

  • Gears: Shimano 7 Speed

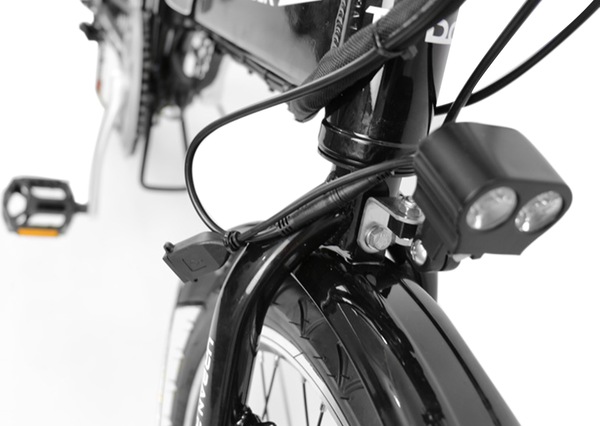

  • LED Light: 2 CREE LED (On / Off Control)
  • Motor: Mini High Speed Brushless
  • Motor Specification: 36V 250W
  • Rated Speed: 280 r/min
  • Output Torque: 7.5N.m
  • Controller - Cut-Off Voltage: 30 + 1V
  • Burst Discharge Current: 13 + 1A
  • Charger Input Voltage: AC110-240V 0.8A 50-60Hz
  • Charge Voltage/Current: DC42.0V 2A
  • Battery: 36V 9Ah Lithium-ion Rechargeable
  • Drive Mode: PAS and Throttle
  • Range: 20 - 40km (single charge, depending on conditions)
  • Bell: Yes

Bike Computer:

    • Display: LCD
    • Control: 3 Button
    • Battery Life Indicator: Yes
    • LED Headlight Status: Yes
    • Brake Display: Yes
    • Trip Time: Single / Total
    • Motor Display: Power (W) / Motor Temperature (°C/°F)
  • Environment Temperature: °C/°F
  • PAS: Status
  • Riding Speed: Km/h, MPH
  • Odometer: Total Distance
  • Trip Distance: DST
  • Distance: Km / Mil
  • Battery Voltage: Yes
  • Assist: PAS Level (1-5)

SKU: A1-7-BLK

Reference ID: 357242
