Go Super-Wide to Capture More Scene Per Frame

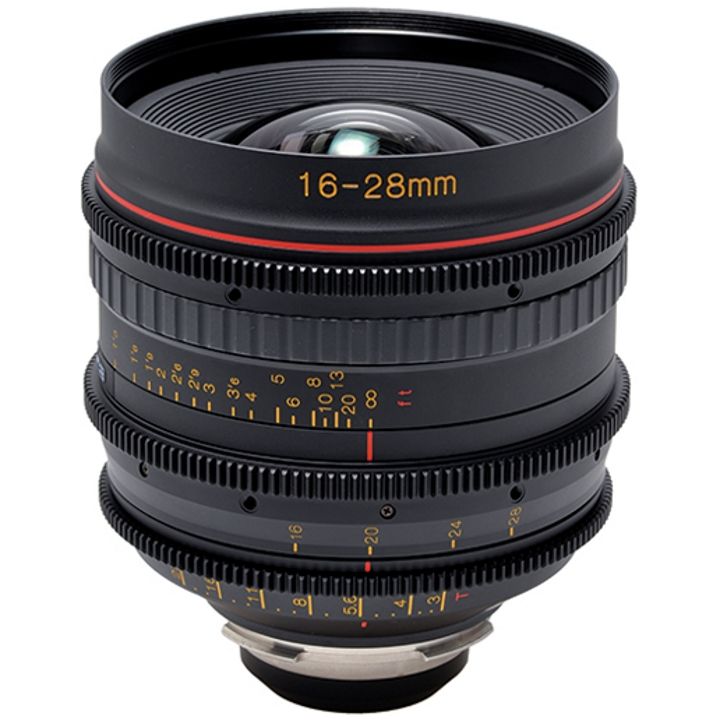

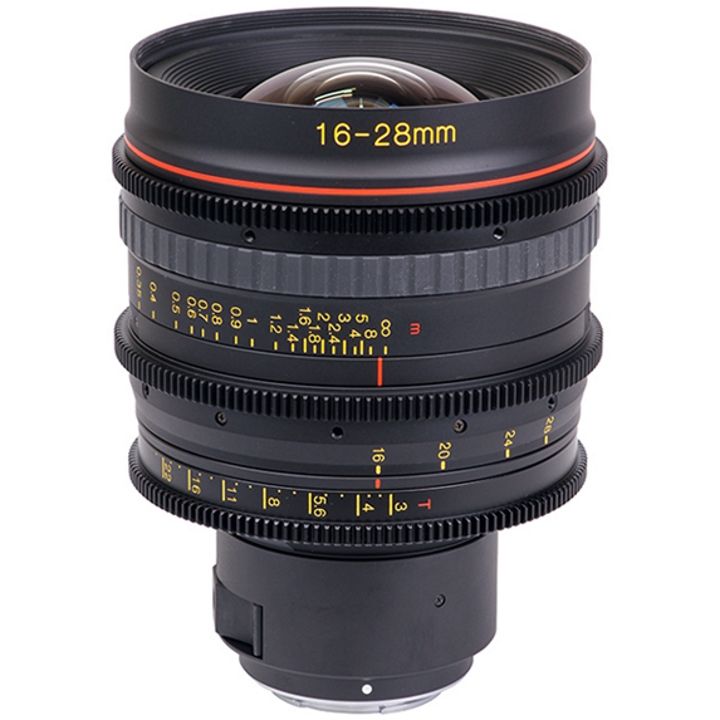

The highly innovative Tokina Cinema 16-28mm T3.0 has been re-engineered to meet the demanding needs of the professional cinematographer. Using the successful optical formula of the award winning still lens, Tokina engineers have created a lens that is Parfocal, has dramatically reduced breathing and image shift, and a de-clicked, 9-bladed, curved iris for beautiful bokeh and precise exposure control. With its 28cm close-focus capability, the lens allows you the freedom to capture a super wide-angle of view while still maintaining a tight perspective on your subject.

FEATURES:

- Full frame super-wide 16-28mm lens

- Parfocal lens design allows you to maintain precise focus while using the zoom control

- Fast constant T3.0 aperture throughout the 16mm to 28mm zoom range

- Reduced breathing so you can focus on the scene and not the lens

- Smooth, de-clicked, 9-bladed, curved iris for beautiful out-of-focus areas

- Virtually no image shift when using the zoom control during filming

- Aspherical elements and Super-Low Dispersion glass reduce distortion and increase optical performance

- 4K image ready

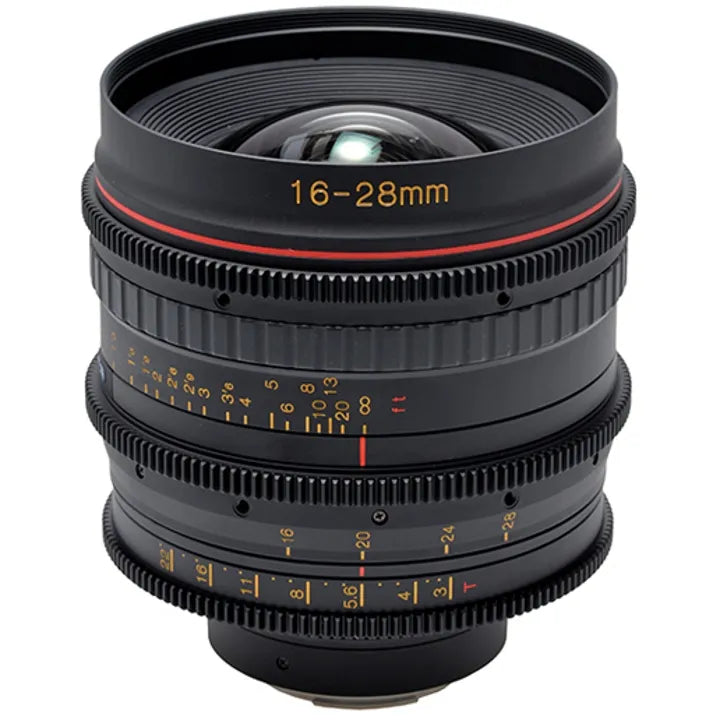

- Durable, all-metal cine-style housing with geared manual zoom, focus and aperture rings for use in follow-focus systems

- Common 114mm front diameter for use with a wide variety of matte boxes and accessories

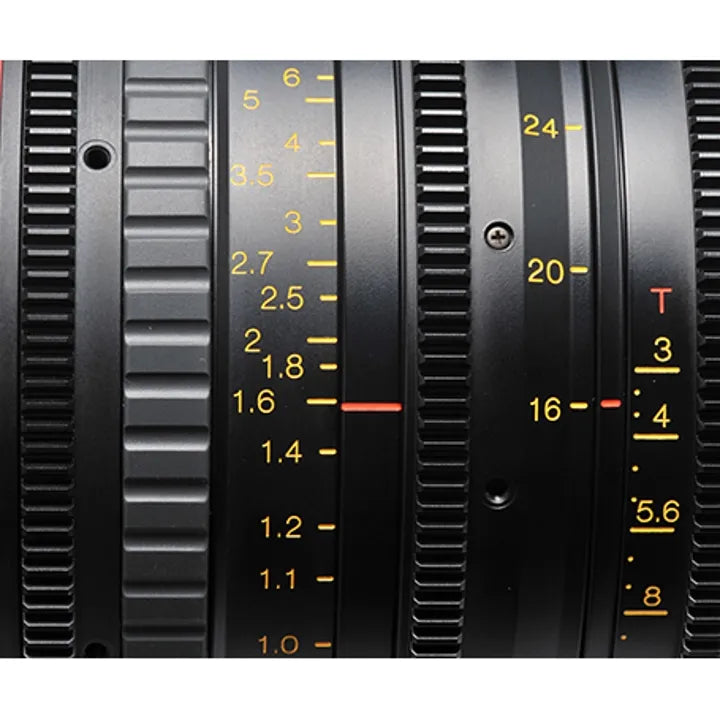

- Zoom, focus, and iris marking are on both sides of the lens for easy viewing and more mounting/follow-focus options

- LDS (Lens Data System) support is possible

Specifications:

- Focal Distance: 16 - 28mm

- Zoom Ratio: 1.75:1

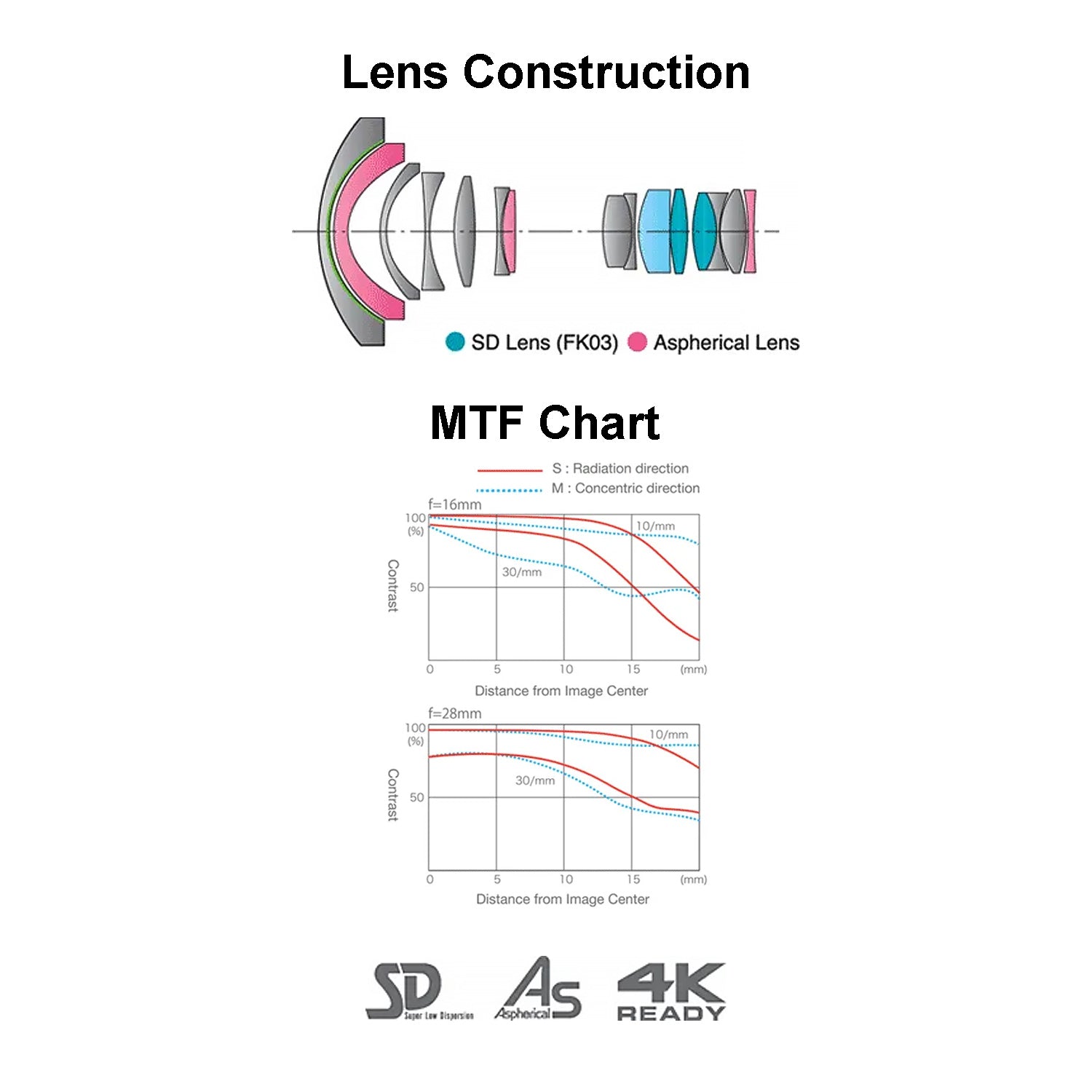

- Optical Structure: 13 groups /15 elements

- Sensor Size: Full Frame 35mm

- Minimum Focusing Distance: 0.28m

- Maximum Macro Magnification: 1:5.26

- Zoom Mode: Rotary Zoom

- Aperture/Iris Blades: 9

- Depth of Field: T3.0 - T22 (F2.8 - F22)

- Filter Size: 112 mm

- Overall Length:

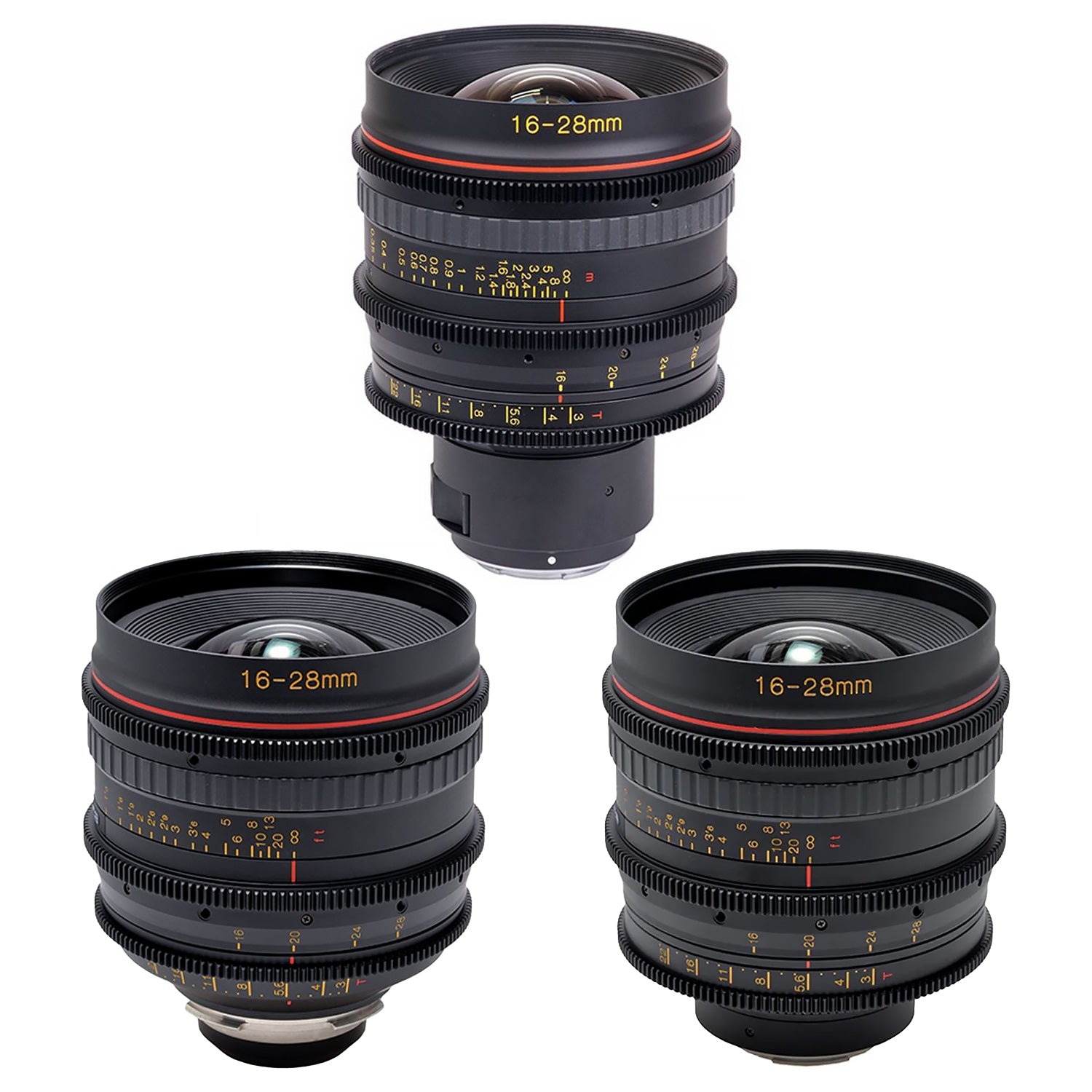

PL Mount: 144mm (from 127mm mount surface)

Canon EF Mount: 140.5mm (from 135mm mount surface)

Sony E Mount: 166.2mm (from 161mm mount surface)

- Diameter of Front Head: 114mm

- Maximum Diameter: 123mm

- Weight: 1.5kg

In the Box:

- Tokina Cinema ATX 16-28mm T3 Wide-Angle Zoom Lens

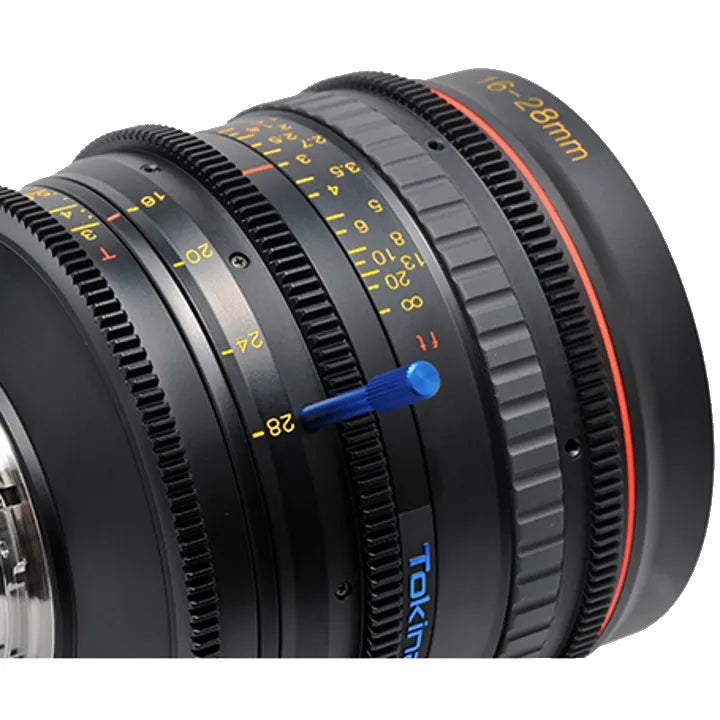

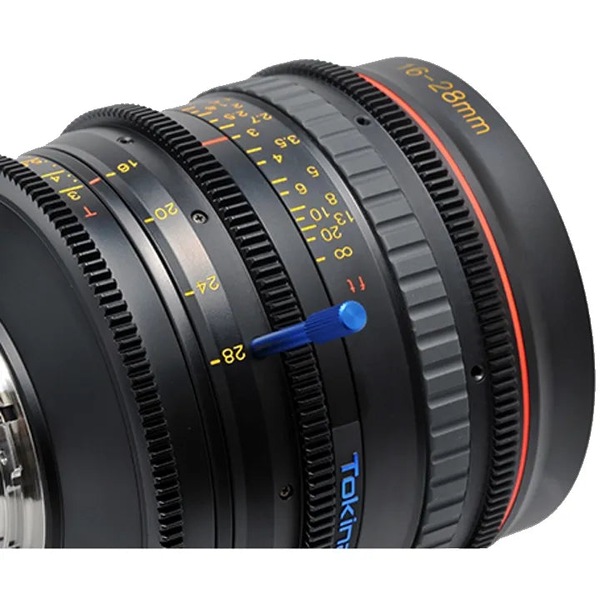

- Focus/Zoom Pin
