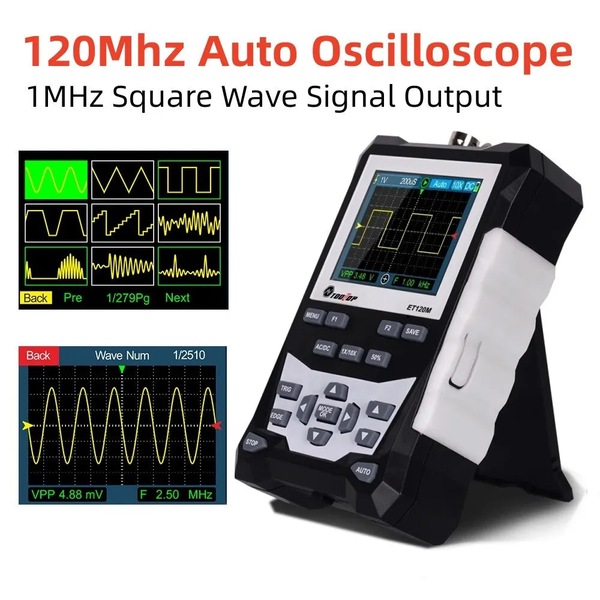

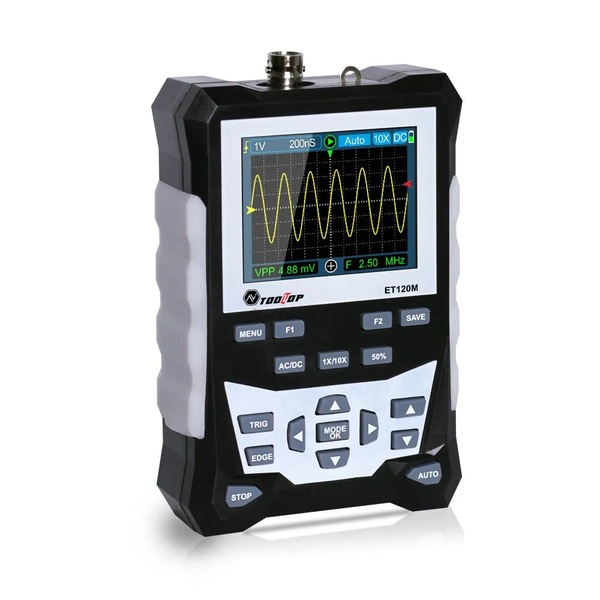

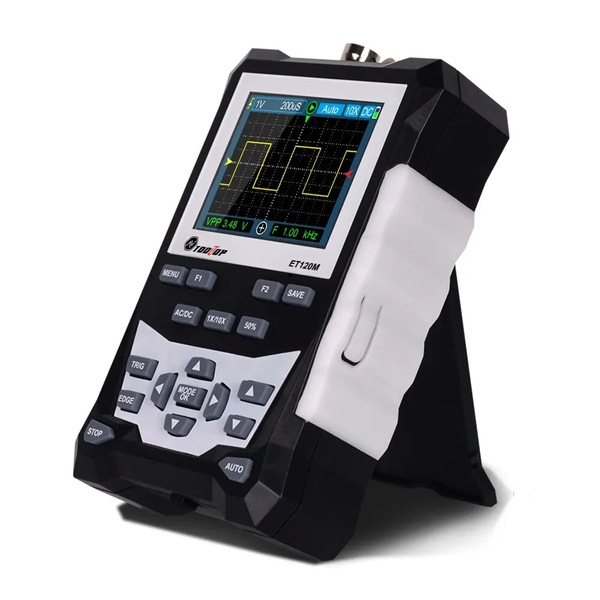

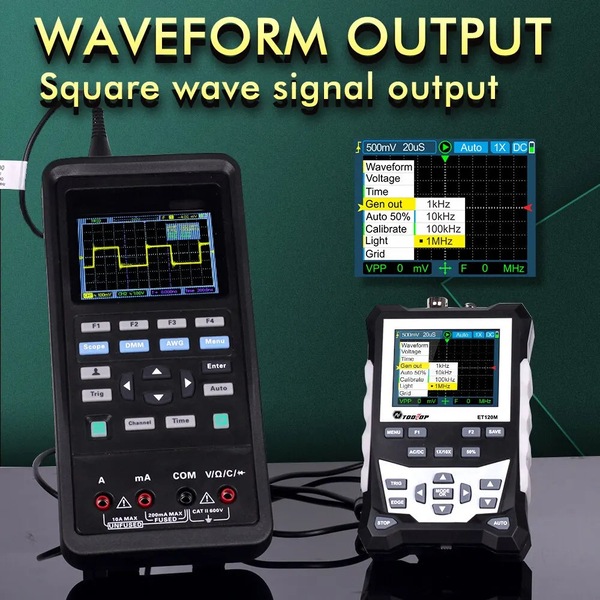

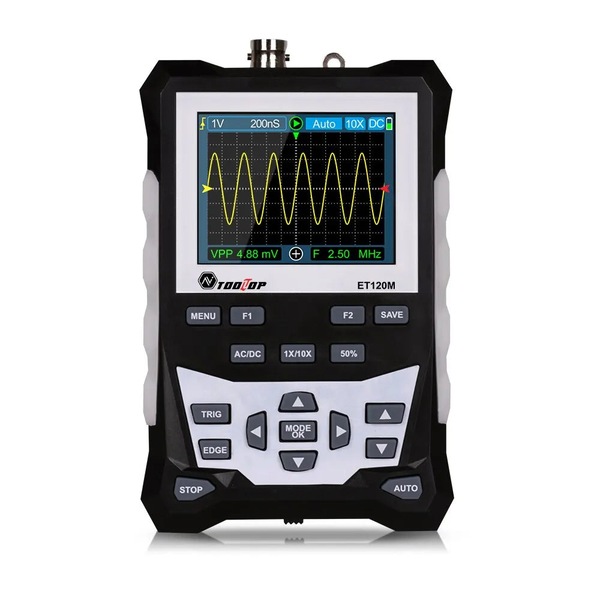

Tooltop Et120m 120mhz Handheld Oscilloscope

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Hurry! 10 items left!
$189.99

Collect 189 Everyday Rewards points

Log in to MyDeal to link your card
Free Shipping

Dispatch in 2 business days

Take 10% Off Purchases
Exclusive to Parallel Deals (Direct Import) products only. Expires 11.59pm 29/07/2025. Excludes Shipping.
Secure ways to pay at checkout
Specifications:

* Display: 320 x 240 Lcd Screen with a 50 mm x 40 mm Display Area

* Backlight: White, Adjustable Brightness

* Impedance: x 1: 1M / x 10: 10M

* Battery: 18650 Lithium Battery

* Auto Shutdown: After 15 Minutes of Inactivity

* Storage: Up to 2500 Dso Waveforms

* Size: 124 x 80 x 35 mm

* Operating Conditions: 0oC to +40oC; < 75%Rh

* Storage Conditions: -10oC to +60oC; < 90%Rh

* Analog Bandwidth: 120Mhz

* Maximum Real-Time Sampling Rate: 500Msps

* Vertical Resolution: 8 Bits

* Vertical Accuracy: (5% + 0.2Div)

* Auto Zero Reference: During Dc Measurement

* Trigger Level: 3.8Div (0.1Div Per Step)

* Trigger Position: 6Div (0.1Div Per Step)

* Cursor Function: V, T, 1/ T

* Nonlinearity: 1 Bit

* Coupling Method: Dc/Ac

* Vertical Sensitivity Range: x 1: 50Mv/Div ~ 10V/Div; x 10: 500Mv/Div ~ 100V/Div

* Time Base Range: 6Ns/Div ~ 50S/Div

* Time Base Accuracy: (0.01% + 0.1Div)

* Scan Mode: Auto/Single/Normal

* Trigger Slope: Rising/Falling

* Record Length: 12Div

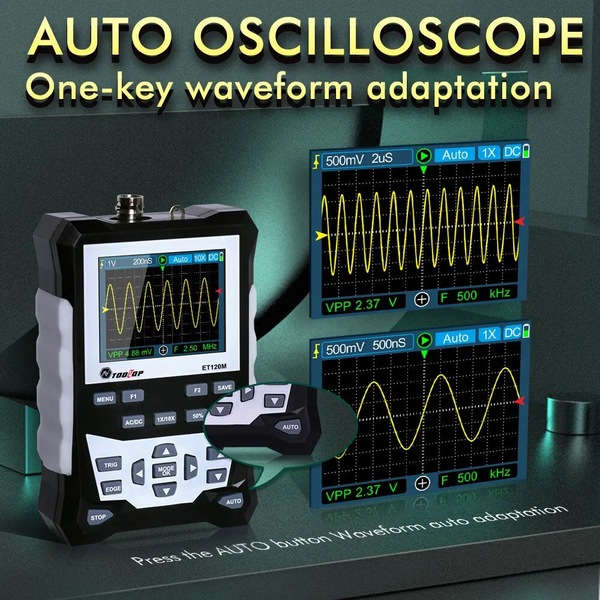

* Auto Configuration: Automatically Sets Time Base and Vertical Amplitude

* Automatic Measurement Function: Vpp, Vrms, Vavg, Vp, Vmax, Vmin, F, T, T+, T-, Du+, Du-

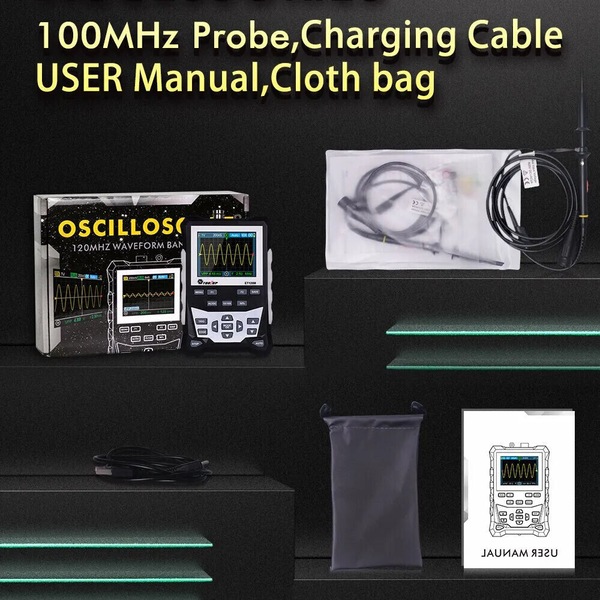

Package Includes:

* 1 x Tooltop Et120m 120mhz Handheld Oscilloscope

MPN: OBBPBBLBOLNLNNBK-1

Estimated Delivery Time Frame:7-14 business days
