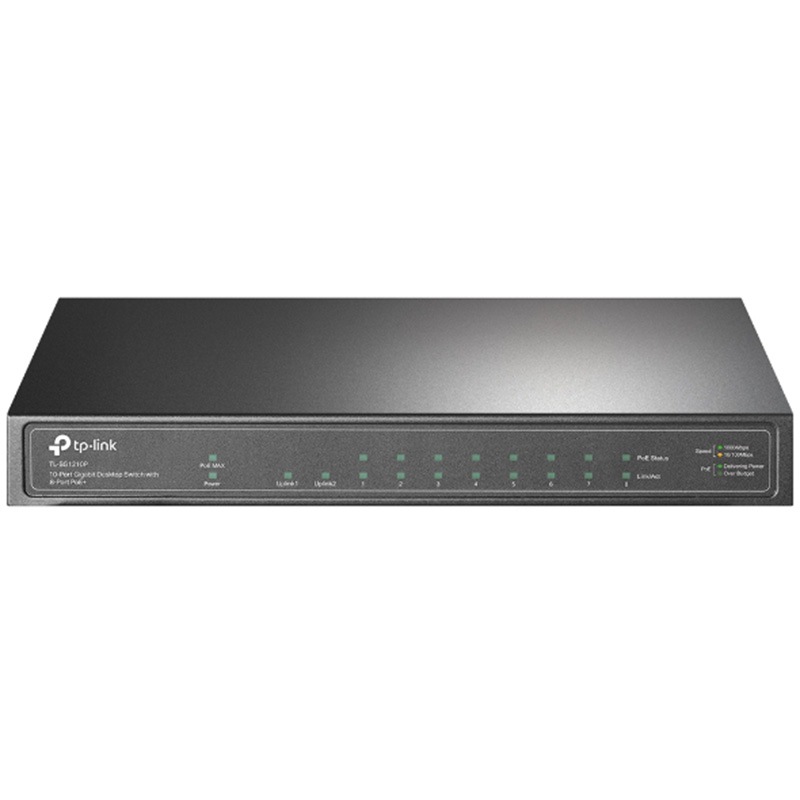

TP-Link 10 Port Gigabit Unmanaged Desktop Switch with 8-Port PoE+ (TL-SG1210P)

Image 1
Hurry! 5 items left!
$136.60

Collect 136 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by Umart Online
Secure ways to pay at checkout






SPECIFICATIONS:

HARDWARE FEATURES


Interface

8 PoE+ 10/100/1000Mbps RJ45 Ports

1 10/100/1000Mbps RJ45 Port

1 Gigabit SFP Slot

Network Media

10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

100BASE-TX: UTP category 5, 5e cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

1000BASE-X MMF, SMF

Fan Quantity

Fanless

Physical Security Lock

Yes

Power Supply

External Power Adapter(Output: 53.5VDC / 1.31A)

Packet Forwarding Rate

14.88 Mpps

PoE+ Ports(RJ45)

Standard: 802.3at/802.3af compliant

PoE Ports: Port1- Port 8

PoE Power Budget: 63W

Mac Address Table

4K

Jumbo Frame

16 KB

Switching Capacity

20 Gbps

Dimensions ( W x D x H )

209 126 26 mm

Max Power Consumption

7.11 W (220/50Hz. no PD connected)

78.13 W (220/50Hz. with 63W PD connected)

Max Heat Dissipation

24.25 BTU/h (no PD connected)

266.42 BTU/h (with 63W PD connected)

SOFTWARE FEATURES


Advanced Features

Compatible With IEEE 802.3af/at Compliant PDs

EEE802.3x Flow Control

802.1p/DSCP QoS

IGMP Snooping

Transmission Method

Store-And-Forward

OTHERS


Certification

CE, FCC, RoHS

Package Contents

TL-SG1210P, Power Adapter, Installation Guide

Environment

Operating Temperature: 0C~40C (32F~104F)

Storage Temperature: -40C~70C (-40F~158F)

Operating Humidity: 10% ~ 90% non-condensing

Storage Humidity: 5%~90% non-condensing
