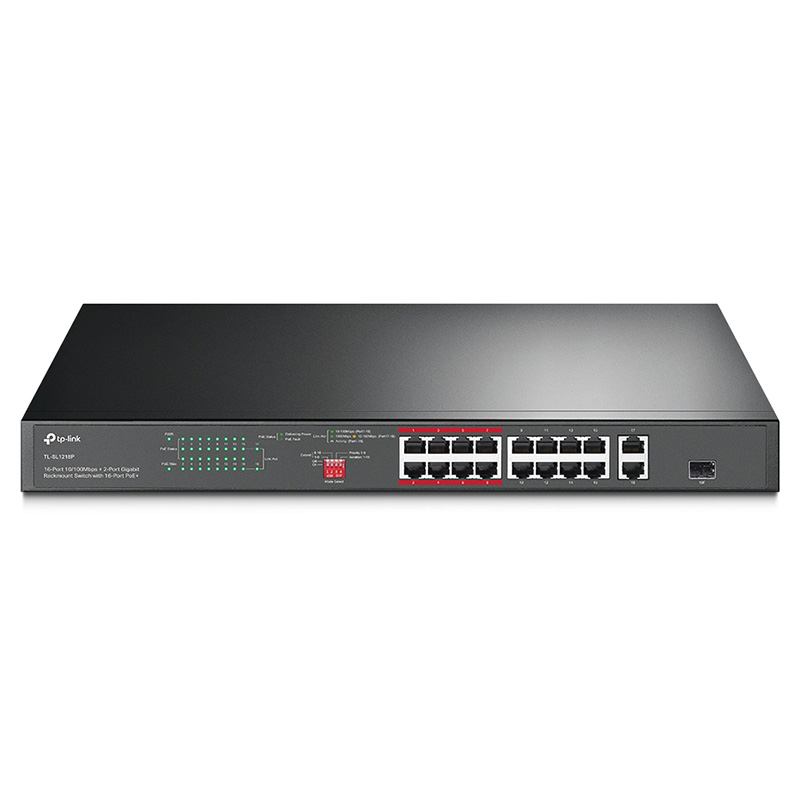

TP-Link 16-Port 10/100 Mbps + 2-Port Gigabit Rackmount Switch with 16-Port PoE+ (TL-SL1218P)

Image 1
Hurry! 5 items left!
$259.80

Collect 259 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by Umart Online
Secure ways to pay at checkout






SPECIFICATIONS:

HARDWARE FEATURES


Interface

• 16 PoE+ 10/100 Mbps RJ45 Ports

• 2 10/100/1000 Mbps RJ45 Ports

• 1 Combo Gigabit SFP Slot

Network Media

• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

• EIA/TIA-568 100Ω STP (maximum 100m)

• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)

• EIA/TIA-568 100Ω STP (maximum 100m)

• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)

• EIA/TIA-568 100Ω STP (maximum 100m)

• 1000BASE-X MMF, SMF

Fan Quantity

2 Fans

Physical Security Lock

Yes

Power Supply

100–240V AC, 50/60 Hz

PoE+ Ports(RJ45)

• Standard: 802.3at/802.3af compliant

• PoE Ports: Ports 1–16

• PoE Power Budget: 150 W

Dimensions ( W x D x H )

17.3 7.1 1.7 in (440 180 44 mm)

Max Power Consumption

• 12.71 W (220/50Hz. no PD connected)

• 172.8 W (220/50Hz. with 150 W PD connected)

Max Heat Dissipation

• 43.34 BTU/h (no PD connected)

• 589.25 BTU/h (with 150 W PD connected)

PERFORMANCE


Switching Capacity

7.2 Gbps

Packet Forwarding Rate

5.36 Mpps

MAC Address Table

8K

Jumbo Frame

10 KB

SOFTWARE FEATURES


Advanced Features

• Compatible With IEEE 802.3at/af Compliant PDs

• Extend Mode (Up to 250m PoE power supply and data transmission)

• Priority Mode

• Isolation Mode

• Mac Address Auto-Learning And Auto-Aging

• IEEE802.3x Flow Control

Transmission Method

Store-And-Forward

OTHERS


Certification

CE, FCC, RoHS

Package Contents

• TL-SL1218P

• Power Cable

• Installation Guide

• Two mounting brackets and the fittings

Environment

• Operating Temperature: 0–50 C (32–122 F)

• Storage Temperature: -40–70 C (-40–158 F)

• Operating Humidity: 10–90% RH non-condensing

• Storage Humidity: 5–90% RH non-condensing

Notes

*PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors.

**The speed of the ports which are under extend mode will be downgraded to 10 Mbps. Actual transmission distance may vary from the quality of the cables.
