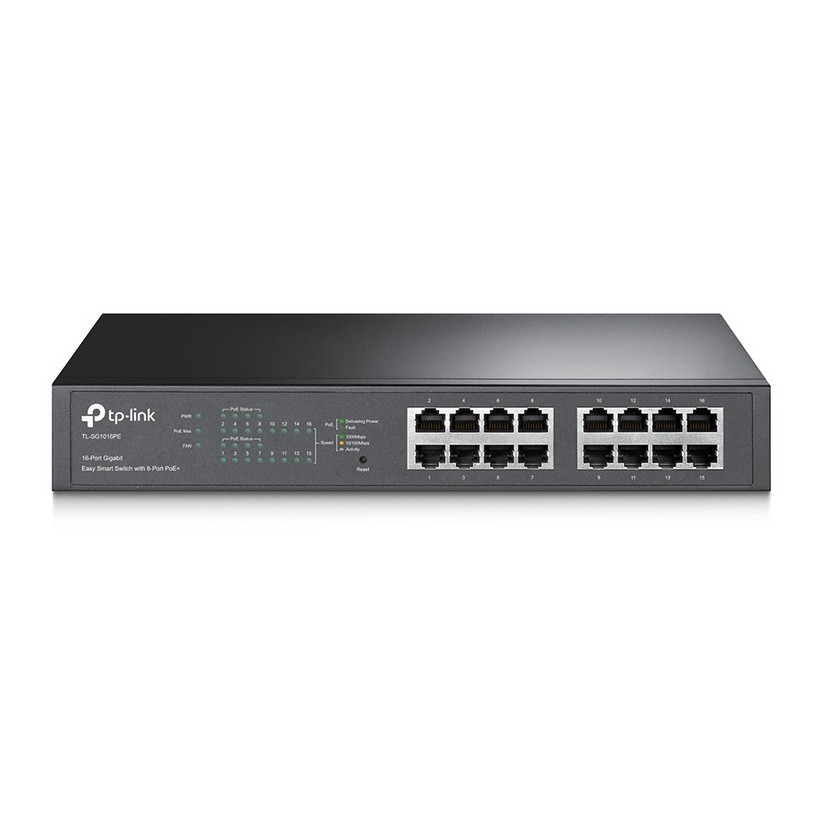

TP-Link 16-Port Gigabit Desktop/Rackmount Switch with 8-Port PoE+ (TL-SG1016PE)

Image 1
Hurry! 5 items left!
$226.20

Collect 226 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by Umart Online
Secure ways to pay at checkout



TL-SG1016PE
 16 10/100/1000Mbps RJ45 ports
 Equipped with 8 PoE+ supported ports to transfer data and power over a single cable
 Works with IEEE 802.3af/at compliant devices, expanding home and office networks
 Innovative energy-efficient technology reduces power output by up to 75%*
 Plug and play design, no configuration required
 Â
 *Actual data may vary in different usage environment.



Official Product LinkOpen Link
Interface16 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX
Network Media10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Î STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Î STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100Î STP (maximum 100m)
SpecificaitonsFan Quantity1
Power Supply100-240VAC, 50/60Hz
Power ConsumptionMaximum (PoE on): 124.4W (220V/50Hz)
Maximum (PoE off): 14.4W (220V/50Hz)
PoE+ Ports(RJ45)8 Ports
Backbound Bandwidth32 Gbps
Mac Address Table8K
Buffer Size1.5 Mbits
Dimensions ( W x D x H )11.6*7.1*1.7 in. (294*180*44 mm)
Transfer MethodStore-And-Forward
Advanced FunctionsCompatible With IEEE 802.3af/at Compliant PDs
Priority Function
Mac Address Auto-Learning And Auto-Aging
IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode
CertificationFCC, CE, RoHS
Package ContentsTL-SG1016PE
Power Cord
Installation Guide
Rackmount Kit
Rubber Feet
Consumption9.5 watts (max. no PD connected)
140.1 watts (max. with 126w PD connected)
EnvironmentOperating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

* Specifications are subject to change without notice.
  * Specifications may vary.
  * The product picture(s) is only for your reference, it may differ from the actual product.
