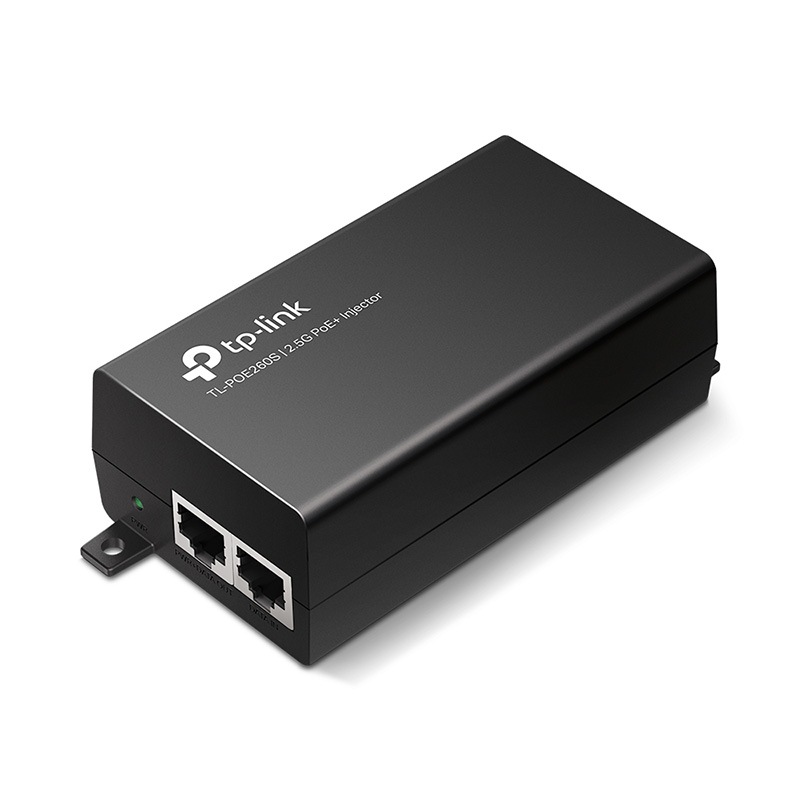

TP-Link 2.5G PoE+ Injector (TL-POE260S)

Image 1
Hurry! 5 items left!
$40.30

Collect 40 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by Umart Online
Secure ways to pay at checkout







SPECIFICATIONS:

NETWORK


Standards and Protocols

IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3bz, IEEE802.3af, IEEE802.3at

GENERAL


Certification

FCC, CE, RoHS

Environment

Operating Temperature: 0C to 40C (32F to 104F)

Storage Temperature: -40C to 70C (-40F to 158F)

Operating Humidity: 10% to 90%RH non-condensing

Storage Humidity: 5% to 90%RH non-condensing

PACKAGE CONTENTS


Package Contents

• 2.5Gbps PoE+ Injector TL-POE260S

• Installation Guide

• Power Cord

• RJ45 Cable

• Wall Mounting Kits

HARDWARE FEATURES


Network Media

• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100 m)

EIA/TIA-568 100Ω STP (maximum 100 m)

• 100BASE-TX: UTP category 5, 5e cable (maximum 100 m)

EIA/TIA-568 100Ω STP (maximum 100 m)

• 1000BASE-T: UTP category 5, 5e, 6 cable(maximum 100 m)

• 2.5GBASE-T: UTP category 5e or above cable(maximum 100 m)

Ports

• 1 10 Mbps /100 Mbps /1Gbps / 2.5Gbps RJ45 data-in port

• 1 10 Mbps /100 Mbps /1Gbps / 2.5Gbps RJ45 power+data-out port

• 1 AC socket

Power Consumption

Input: 100-240 V, 50/60 Hz

Output: Auto-determine the necessary power requirements (max. 30 W)

Basic Function

• Auto-Sensing Algorithm enables providing power with 802.3af/at PD

• Auto-determine the necessary power requirements

• Wall-mounting and desktop installation supported

• Plug-and-Play

LED Indicator

ON: Supplying power normally

OFF: No power supply

Dimensions ( W x D x H )

4.9*2.3*1.4 in (125*59.4*36.8 mm)
