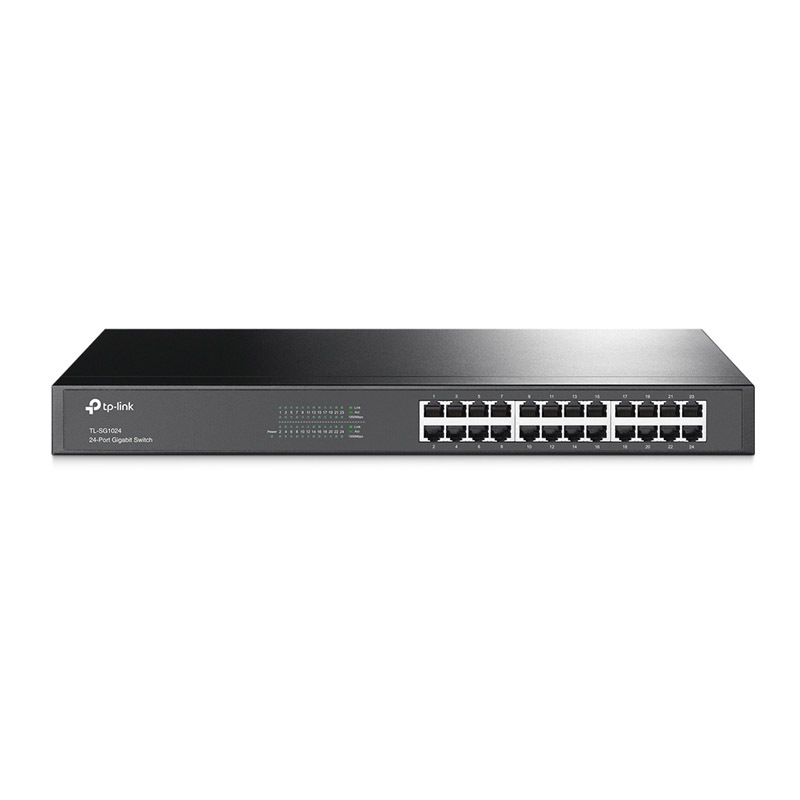

TP-Link 24 Port Gigabit 10/100/1000 Switch RackMount (TL-SG1024)

Image 1
Hurry! 5 items left!
$147.80

Collect 147 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by Umart Online
Secure ways to pay at checkout

The TL-SG1024 Gigabit Ethernet Switch provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 1000Mbps network. All 24 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SG1024 can save power consumption and 80% of the packaging material can be recycled, making it an eco-friendly solution for your business network.


  • 24 10/100/1000Mbps RJ45 ports

  • Innovative energy-efficient technology saves power consumption

  • Supports MAC address self-learning and auto MDI/MDIX

  • Standard 19-inch rack-mountable steel case






SPECIFICATIONS:

HARDWARE FEATURES


Standards and protocols

IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab , IEEE 802.3x

Interface

24 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)

Network media

10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100m)

Fan quantity

Fanless

Power supply

100-240VAC, 50/60Hz

Dimensions ( W x D x H )

17.3*7.1*1.7 in. (440*180*44 mm)

Mounting

Rack Mountable

Max power consumption

13.08W(220V/50Hz)

Max heat dissipation

44.63BTU/h

PERFORMANCE


Switching capacity

48Gbps

Packet forwarding rate

35.7Mpps

MAC address table

8K

Jumbo frame

10KB

QOS

802.1p/DSCP QoS*

*Only for V11 and later version

Green technology

Yes

Transfer method

Store-and-Forward

OTHERS


Certification

FCC, CE, RoHS

Package contents

24-Port Gigabit Rackmount Switch

Power Cord

Installation Guide

Rackmount Kits

Rubber Feet

Environment

Operating Temperature: 0~40   (32~104);

Storage Temperature: -40~70   (-40~158);

Operating Humidity: 10%~90% non-condensing;

Storage Humidity: 5%~90% non-condensing





SKU: 15616
