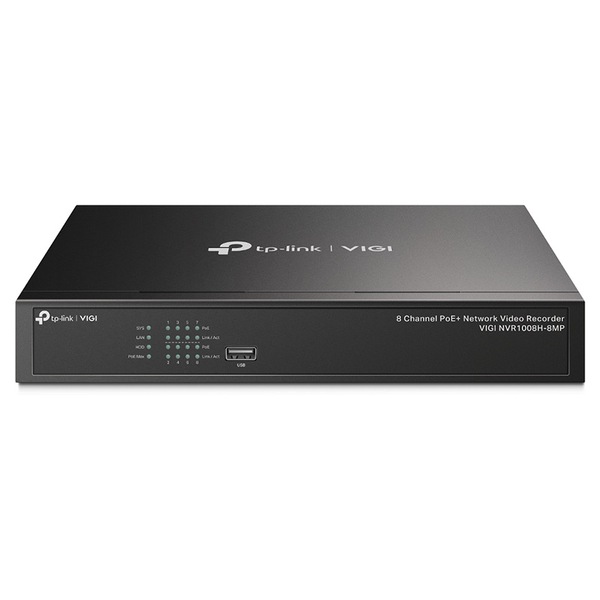

TP-Link 8 Channel PoE+ Network Video Recorder (VIGI NVR1008H-8MP)

Image 1
Shop More Products








SPECIFICATIONS:

DECODING


Decoding Format

H.265+/H.265/ H.264+/H.264

Live View/Playback Resolution

8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF

Synchronous Playback

8 Channel

Capability

2-ch @ 8MP, 4-ch @ 4MP, 8-ch @ 2MP

NETWORK


Protocol

TCP/IP, DHCP, DNS, NTP, UPnP

Incoming Bandwidth

80 Mbps

Outgoing Bandwidth

60 Mbps

INTERFACES


Network Interface

1 RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface

USB Interface

2 USB 2.0

HARD DISK


SATA

1 SATA Interface

Capacity

Up to 10 TB

GENERAL


Package Contents

VIGI Network Video Recorder

Power Adapter

HDD Screws

Quick Installation Guide

Operating Temperature

-10–55 C

Dimensions( W X D X H )

294 180 44 mm

PoE

Standard: 802.3af/at

PoE Ports: Ports 1-8

PoE Budget: 113 W

External Power Supply

53.5V DC/2.43 A

Power Consumption

4.82 W (without disk)

VIDEO/IMAGE


Video Input

8-Channel IP Video Input, up to 8 MP Resolution

Recording Resolution

8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF

HDMI Output Resolution

1 Channel, Resolution: 3840x2160/30Hz,1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1024x768/60Hz, 1280x720/60Hz

VGA Output Resolution

1 Channel, Resolution: 1920x1080/60Hz,1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz

OTHERS


Notes

†Rack-mounting accessories are not   included.

Calculations based on laboratory testing using VIGI cameras.

§PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors.

Some features may operate sub-optimally due to compatibility issues. For best performance, we recommend using VIGI NVR with VIGI cameras.

*Fewer or no channels may be available for playback if the total resolution is 16MP.

**Calculations based on laboratory testing using a 3MP VIGI camera. Actual performance may vary according to the amount of activity recorded, resolution, and other variables.




SKU: 73027

Reference ID: 14448461
