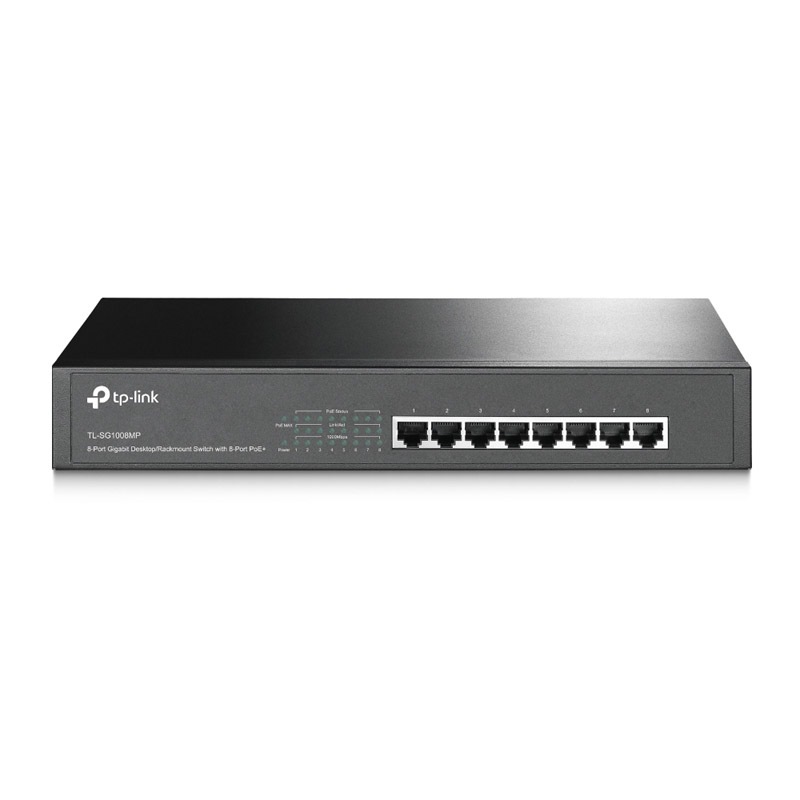

TP-Link 8 Port PoE+ Gigabit Desktop Rackmount Switch (TL-SG1008MP)

Image 1
Hurry! 5 items left!
$170.20

Collect 170 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by Umart Online
Secure ways to pay at checkout

TP-Link 8 Port PoE+ Gigabit Desktop Rackmount Switch (TL-SG1008MP)

The TL-SG1008MP is an 8-Port Gigabit Desktop/Rack mountable Switch with all 8 ports supporting the IEEE 802.3af/at, PoE+ standard. It provides a simple way to expand a wired network by transferring power and data over a single Ethernet Cable. With a total power budget of 126W, up to 30W per port, TL-SG1008MP can power more high-powered devices such as wireless Access Points (APs), IP Cameras or IP Phones. Moreover, with innovative energy-efficient technology, the TL-SG1008MP reduces power consumption, making it an eco-friendly solution for your business network.


  • 8 10/100/1000Mbps RJ45 ports

  • Equipped with 8 PoE+ ports to power 8 PoE devices at the same time

  • Works with IEEE 802.3af or 802.3at compliant up to 30W per port device

  • Innovative energy-efficient technology reduces power consumption

  • Rack mountable with included rack mount bracket

  • Total PoE power budget up to 126W

  • Plug and play design, no configuration required





SPECIFICATIONS:

HARDWARE FEATURES

Interface

8 10/100/1000Mbps RJ45 Ports

AUTO Negotiation/AUTO MDI/MDIX

Network media

10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

100BASE-TX: UTP category 5, 5e cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

Fan quantity

1

Physical security lock

No

Power supply

100-240VAC, 50/60Hz

POE+ Ports(RJ45)

Standard: 802.3at/af (30W)

PoE+ Ports: 8 Ports

Total PoE Budget: 126W

Backbound bandwidth

16Gbps

MAC address table

4K

Buffer size

1.5Mbits

Dimensions ( W X D X H )

11.6 7.1 1.7 in.
(294 180 44 mm)

Mounting

13" and 19" 1U rack mountable

Max power consumption

9.9W(no PD load)
144.4W(with 124W PD load)

Max heat dissipation

33.7BTU/h(no PD load)
492.6BTU/h(with 124W PD load)

SOFTWARE FEATURES

Advanced features

Compatible With IEEE 802.3af/at Compliant power devices (PD)
Port Priority Function
MAC Address Auto-Learning And Auto-Aging
IEEE802.3x Flow Control

Transfer method

Store-And-Forward

OTHERS

Certification

FCC, RoHS

Package contents

TL-SG1008MP
Power Cord
Installation Guide
Rackmount Kit
Rubber Feet

Consumption

9.5 watts (max. no PD connected)
140.1 watts (max. with 126w PD connected)

Environment

Operating Temperature: 0~40   (32~104)
Storage Temperature: -40
~70   (-40~158)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing




SKU: 52238
