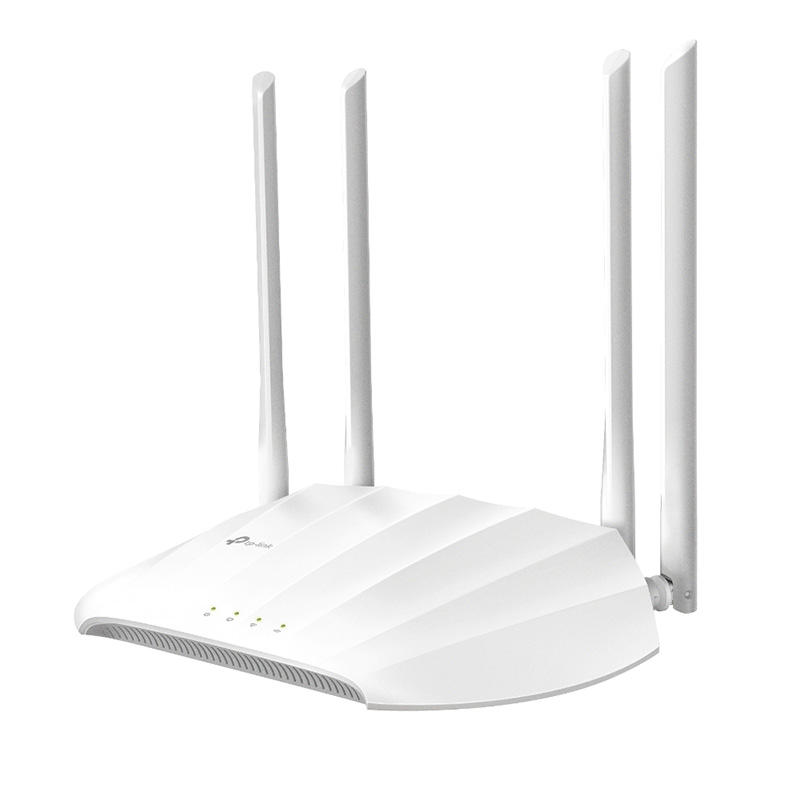

TP-Link AC1200 Wi-Fi Access Point (TL-WA1201)

Image 1
Hurry! 5 items left!
$79.50

Collect 79 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by Umart Online
Secure ways to pay at checkout







SPECIFICATIONS:

HARDWARE FEATURES


Interface

1 10/100/1000 Mbps Ethernet Port

(Supports Passive PoE)

Button

Power On/Off Button, WPS Button, Reset Button

External Power Supply

12V/1.5A

Wireless Standards

IEEE802.11b/g/n 2.4 GHz, IEEE 802.11ac/n/a 5 GHz

Dimensions ( W x D x H )

8.9 5.7 1.5 in

(225145.537 mm)

Antenna Type

4 Fixed High Performance Antennas

WIRELESS FEATURES


Frequency

2.4 GHz and 5 GHz

Signal Rate

867 Mbps at 5 GHz, 300 Mbps at 2.4 GHz

Reception Sensitivity

5 GHz:

11a 6 Mbps: -95 dBm, 11a 54 Mbps: -81 dBm

11ac VHT20(MCS0): -94 dBm, 11ac VHT20(MCS8): -71 dBm

11n HT40(MCS0): -91 dBm, 11n HT40(MCS7): -71 dBm

11ac VHT80(MCS0): -88 dBm, 11ac VHT80(MCS9): -63 dBm



2.4 GHz:

11g 54Mbps: -78 dBm

11n HT20(MCS0): -92 dBm, 11n HT20(MCS7): -74 dBm

11n HT40(MCS0): -88 dBm, 11n HT40(MCS7): -72 dBm

Transmit Power

CE: <20dBm(2.4GHz), <23dBm(5.15GHz~5.25GHz)

FCC: <30dBm(2.4GHz&5GHz)

Wireless Modes

Access Point, Range Extender, Client, Multi-SSID

Wireless Functions

Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics, Wireless Multicast Forwarding, DHCP Server, Access Control

Wireless Security

64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA-PSK2 encryptions

DHCP

Server, DHCP Client List

Quality of Service

WMM

Advanced Functions

Captive Portal

OTHERS


Certification

CE, FCC, RoHS

Package Contents

Wireless Access Point TL-WA1201

Power Adapter

RJ45 Ethernet Cable

Quick Installation Guide

PoE Power Injector

System Requirements

Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX or Linux

Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other

Java-enabled browser

Environment

Operating Temperature: 0C ~ 40C(32F ~ 104F)

Storage Temperature: -40C ~ 70C (-40F ~ 158F)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing

Protocol Support

IPv4, IPv6

Notes

*Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local   interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection, quality, and client condition.

Use of MU-MIMO requires clients to also support MU-MIMO.
