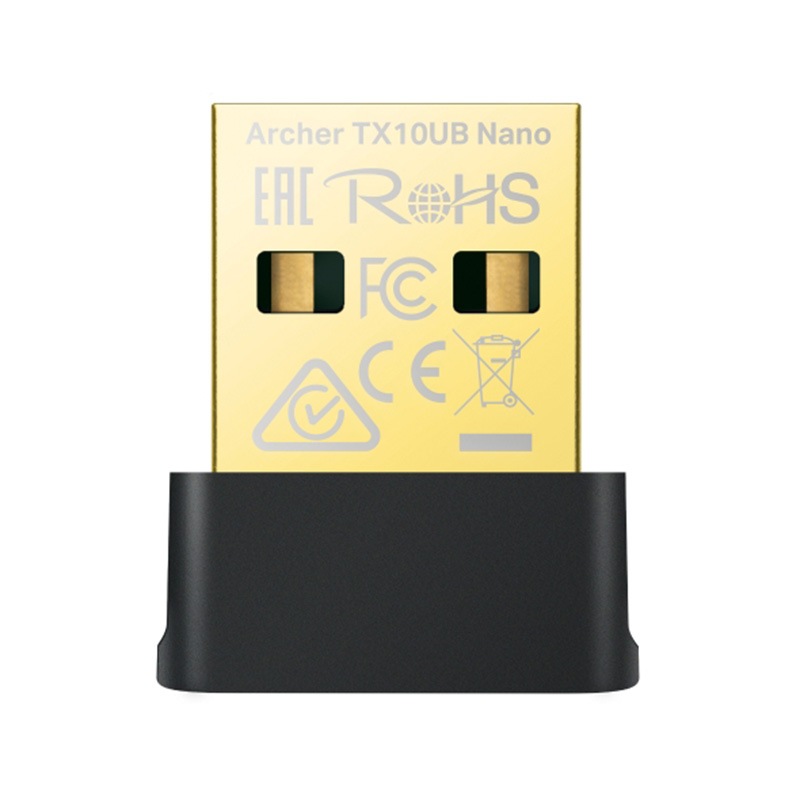

TP-Link Archer AX900 Nano Wi-Fi 6 Bluetooth 5.3 USB Adapter (ARCHER TX10UB NANO)

Image 1
Hurry! 5 items left!
$34.70

Collect 34 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by Umart Online
Secure ways to pay at checkout






SPECIFICATIONS:

HARDWARE FEATURES


Interface

USB 2.0

Dimensions ( W x D x H )

19.2*15.7*7.4mm

Antenna Type

Omni Directional

WIRELESS FEATURES


Wireless Standards

IEEE 802.11b/g/n/ax 2.4 GHz, IEEE 802.11a/n/ac/ax 5 GHz

Frequency

5GHz

2.4GHz

Signal Rate

5GHz

11ax: Up to 600Mbps(dynamic)

11ac: Up to 433Mbps(dynamic)

11n: Up to 150Mbps(dynamic)

11a: Up to 54Mbps(dynamic)



2.4GHz

11ax: Up to 287Mbps(dynamic)

11n: Up to 200Mbps(dynamic)

11g: Up to 54Mbps(dynamic)

11b: Up to 11Mbps(dynamic)

Reception Sensitivity

5GHZ:

11a6M:-94dBm;

11ax HE80 MCS11:-59dBm;

11ax HE80 MCS0:-87dBm;



2GHZ:

11g6M:-95dBm;

11ax HE40 MCS11:-65dBm;

11ax HE40 MCS0:-93dBm;

Wireless Modes

Infrastructure Mode

Wireless Security

WEP, WPA/WPA2/WPA3, WPA-PSK/ WPA2-PSK

Modulation Technology

DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM, 1024-QAM

OTHERS


Certification

CE, FCC, RoHS

Package Contents

AX900 Nano Wi-Fi 6 Bluetooth 5.3 USB Adapter Archer TX10UB Nano

Quick Installation Guide

System Requirements

Windows 11/10

Environment

Operating Temperature: 0~40 (32 ~104)

Operating Humidity: 10%~90% non-condensing

Notes

†Maximum   wireless signal rates are the physical rates derived from IEEE Standard   802.11 specifications. Actual wireless data throughput and wireless coverage, and number of connected devices are not guaranteed and will vary as a result of network conditions, AP limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and AP location.

‡Use of Wi-Fi 6 (802.11ax), and features including OFDMA, MU-MIMO, and 1024-QAM   require APs to also support the corresponding features.

§To ensure compatibilty, you may need to update the adapter's drivers after an OS   update. You can check the full list of supported operating systems in the download center at tp-link.com/download-center.

Use of WPA3 requires AP to also support the corresponding feature.

*Actual network speed may be limited by the rate of the product's USB port, PCI Express Interface, Ethernet WAN or LAN port, the rate supported by the network cable, internet service provider factors, and other environmental conditions.
