DESCRIPTION

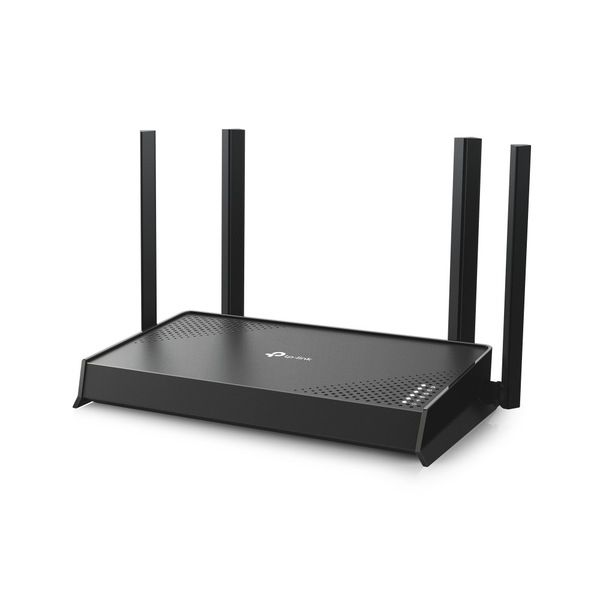

TP-Link Archer BE220 BE3600 Dual-Band Wi-Fi 7 Router

• 3.6 Gbps Dual-Band Wi-Fi 7: BE3600 Dual-Band Wi-Fi delivers Wi-Fi speeds up to 3.6 Gbps.†‡
• Full Gigabit Ports: 1× 1 Gbps WAN port + 4× 1 Gbps LAN ports offer high-speed data transmissions.§
• Maximised Coverage: 4× external antennas along with Beamforming deliver more capacity, stronger and more reliable connections, and less interference.
• EasyMesh-Compatible: Works with EasyMesh routers and range extenders to form seamless whole home Mesh Wi-Fi, preventing drops and lag when moving between signals.*
• Easy Setup and Use: Network management has never been easier with the Tether app.
• TP-Link HomeShield: Enhanced security defends against the latest cyber threats.**

Warranty Period: 3-Year

WIRELESS

WiFi Speeds BE3600

• 5 GHz: 2882 Mbps (802.11be)
• 2.4 GHz: 688 Mbps (802.11be)

WiFi Range

3 Bedroom Houses

• 4× External Antennas
• Multiple antennas form a signal-boosting array to cover more directions and large areas

Beamforming

• Concentrates wireless signal strength towards clients to expand WiFi range

WiFi Capacity

High

• Dual-Band
• Allocate devices to different bands for optimal performance

2×2 MU-MIMO

• Simultaneously communicates with multiple MU-MIMO clients

OFDMA

• Simultaneously communicates with multiple clients

Airtime Fairness

• Improves network efficiency by limiting excessive occupation

DFS

• Access an extra band to reduce congestion

4 Streams

• Connect your devices to more bandwidth

Advanced Features

• Multi-Link Operation (MLO)
• 4K-QAM
• Multi-RUs
• EasyMesh-Compatible
• Works with Alexa and Google Assistant
• IoT Network

Wireless Mode

• Router Mode
• Access Point Mode

SECURITY
Network Security

• SPI Firewall
• Access Control
• IP & MAC Binding
• Application Layer Gateway

HomeShield Security

• Real-Time IoT Protection
• Malicious Site Blocker
• Intrusion Prevention System
• DDoS Attack Prevention
• Home Network Scanner

Guest Network

• 1× 5 GHz Guest Network
• 1× 2.4 GHz Guest Network

VPN Server

• OpenVPN Server
• PPTP VPN Server
• L2TP VPN Server
• WireGuard VPN Server

VPN Client

• Open VPN Client
• PPTP VPN Client
• L2TP VPN Client
• WireGuard VPN Client

WiFi Encryption

• WPA
• WPA2
• WPA3
• WPA/WPA2-Enterprise (802.1x)

HARDWARE

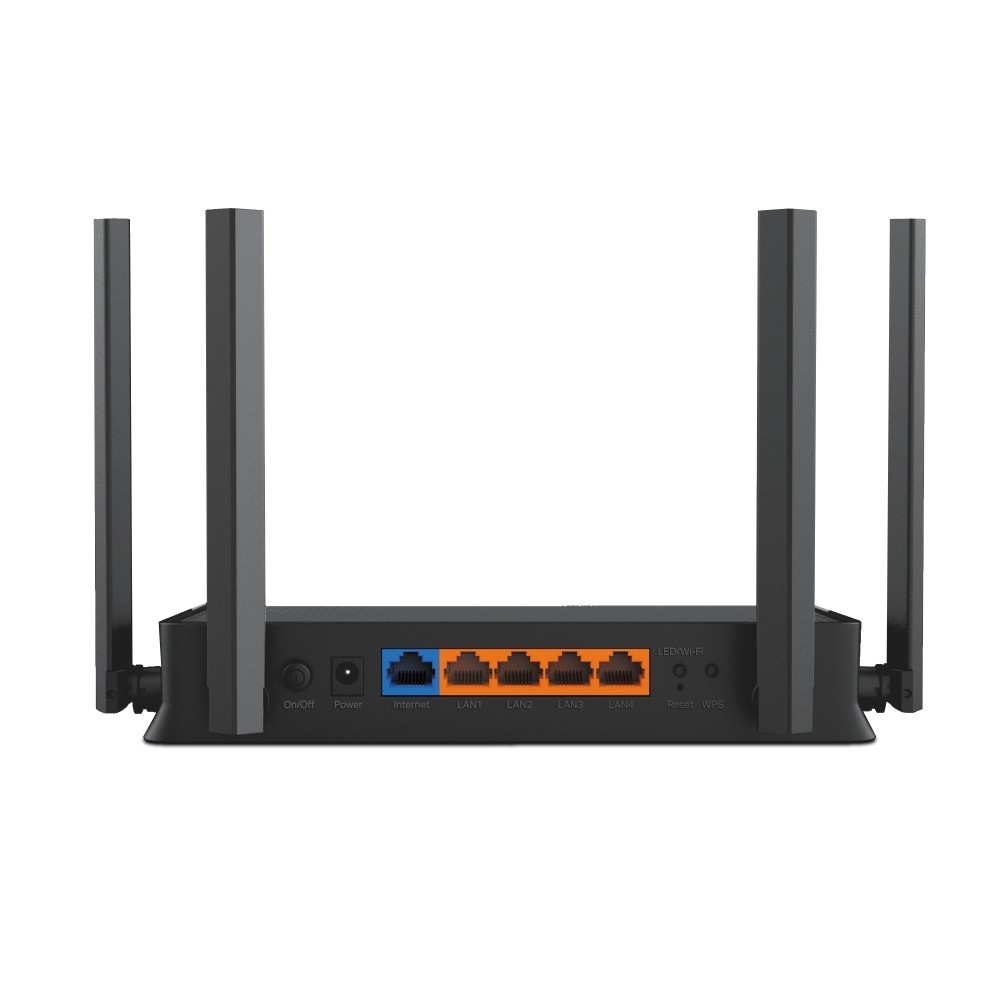

Ethernet Ports

• 1× 1 Gbps WAN
• 4× 1 Gbps LAN

Buttons

• Power On/Off Button
• LED/Wi-Fi Button
• WPS Button
• Reset Button

Power

• 12 V ⎓ 2 A (US)
• 12 V ⎓ 1.5 A (EU)

SOFTWARE
Protocol

• IPv4
• IPv6

Service Kit: HomeShield

EasyMesh: Compatible with EasyMesh

Parental Controls

• HomeShield Parental Controls
• Custom Profiles
• Professional Content Filter Library
• Family Time
• Bedtime
• Off Time
• Time Rewards
• Family Online Time Ranking
• Pause the Internet
• Weekly and Monthly Reports

WAN Type

• Dynamic IP
• Static IP
• PPPoE
• PPTP
• L2TP

Quality of Service: QoS by Device
Cloud Service

• Auto Firmware Upgrade
• TP-Link ID
• DDNS

NAT Forwarding

• Port Forwarding
• Port Triggering
• DMZ
• UPnP

IPTV

• IGMP Proxy
• IGMP Snooping
• Bridge
• Tag VLAN

DHCP

• Address Reservation
• DHCP Client List
• Server

DDNS

• TP-Link
• NO-IP
• DynDNS

Management Features

• Tether App
• Webpage

OTHER

System Requirements

• Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
• Cable or DSL Modem (if needed)
• Subscription with an internet service provider (for internet access)

Certifications: CE, FCC, RoHS
Environment

• Operating Temperature: 0℃~40℃ (32℉ ~104℉)
• Operating Humidity: 10%~90% non-condensing
