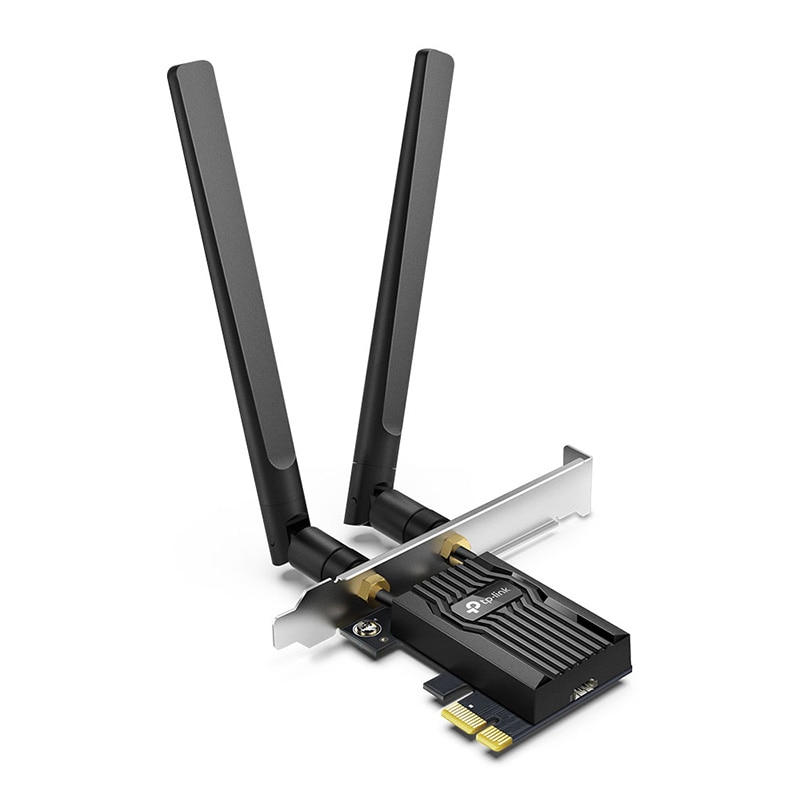

TP-Link AX3000 Wi-Fi 6 Bluetooth 5.2 PCIe Adapter (Archer TX55E)

Image 1
Hurry! 5 items left!
$68.30

Collect 68 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by Umart Online
Secure ways to pay at checkout

*Disclaimer: Bluetooth functionality requires an available USB 2.0 header on the user's motherboard







SPECIFICATIONS:

HARDWARE FEATURES


Dimensions

2.4 x 1.4 x 0.45 in

(55 x 36 x 11.5 mm)

Antenna Type

Two High-Gain Dual Band Antennas

Chipset

Intel Wi-Fi 6 Chipset

BLUETOOTH FEATURES


Standards and Protocols

Bluetooth 5.2, Bluetooth 5.0, Bluetooth 4.2, Bluetooth 4.0

Interface

F_USB 2.0

WIRELESS FEATURES


Wireless Standards

IEEE 802.11ax/ac/n/a 5 GHz

IEEE 802.11ax/n/g/b 2.4 GHz

Bluetooth 5.2/5.0/4.2/4.0

WLAN Signal Rate

5 GHz

11ax: Up to 2402 Mbps(dynamic)

11ac: Up to 1733 Mbps(dynamic)

11n: Up to 300 Mbps(dynamic)

11a: Up to 54 Mbps(dynamic)



2.4 GHz

11ax: Up to 574 Mbps(dynamic)

11n: Up to 300 Mbps(dynamic)

11g: Up to 54 Mbps(dynamic)

11b: Up to 11 Mbps(dynamic)

WLAN Reception Sensitivity

5 GHz :

11ax HT160:-56.25dBm

11ax HT80: -59dBm

11ax HT40: -62.25dBm

11ax HT20: -65dBm



11ac HT160:-62dBm

11ac HT80: -65.5dBm

11ac HT40: -69.75dBm

11ac HT20: -73.75dBm

11n HT40: -74.5dBm

11n HT20: -77.5dBm

11a 54Mbps: -77.75dBm

11a 6Mbps: -94.5dBm



2.4GHz :

11ax HT40: -60.75dBm

11ax HT20: -63.75dBm

11n HT40: -73dBm

11n HT20: -76.25dBm

11g 54Mbps: -76.5dBm

11b 11Mbps: -89dBm

WLAN Transmit Power

5 GHz : 27dBm(FCC) / 23dBm(CE) (EIRP)

2.4 GHz : 26dBm(FCC) / 20dBm(CE) (EIRP)

WLAN Modes

Infrastructure mode

Wireless Security

Support 64/128 bit WEP, WPA/WAP2/WPA3, WPA-PSK/WPA2-PSK, 802.1x

Modulation Technology

DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM, 1024QAM

OTHERS


Certification

CE, FCC, RoHS

Package Contents

Archer TX55E V2

Two High-Gain Antennas

Low-Profile Bracket

Standard Bluetooth Header Cable

Quick Installation Guide

Resource CD

System Requirements

Windows 10(64-bit) only

Environment

Operating Temperature: 0~40 (32~104)

Storage Temperature: -40~70 (-40~158)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing




SKU: 71410
