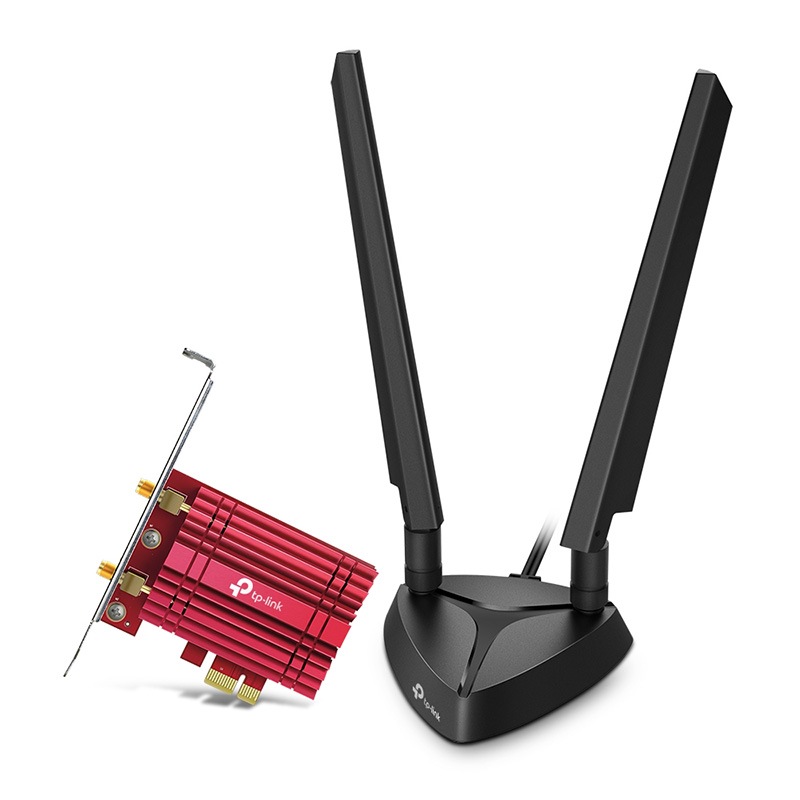

TP-Link AXE5400 Wi-Fi 6E Bluetooth 5.3 PCIe Adapter (Archer TXE75E)
,gravity=Center,allowExpansion)
Collect 96 Everyday Rewards points
Collect 96 Everyday Rewards points
SPECIFICATIONS:
HARDWARE FEATURES | |
Dimensions       | 3.7 4.8 0.8 in (95.2 120.8 21.5 mm) |
Antenna Type   | 2 High-Gain Tri-Band Antennas |
WIRELESS FEATURES | |
Wireless Standards        | IEEE 802.11a/b/g/n/ac/ax |
WLAN Signal Rate           | 6 GHz: 11ax: Up tp 2402Mbps 5 GHz:  11ax: Up to 2402 Mbps(dynamic)            11ac: Up to 1732 Mbps(dynamic)            11n: Up to 300 Mbps(dynamic) 11a: Up to 54 Mbps(dynamic)   2.4 GHz:              11ax: Up to 574 Mbps(dynamic) 11n: Up to 400 Mbps(dynamic) 11g: Up to 54 Mbps(dynamic)   11b: Up to 11 Mbps(dynamic)   |
WLAN Reception Sensitivity      | 6 GHz: 11ax HE160 MCS0:-86  11ax HE160 MCS11:-56 5 GHz:  11ax HE80 MCS0: -90 dBm          11ax HE80 MCS11: -59 dBm       11a 54Mbps: -77 dBm   11ac VHT80 MCS0: -92dBm        11ac VHT80 MCS9: -64dBm        2.4 GHz:              11ax HE40 MCS0: -91 dBm          11ax HE40 MCS11: -60 dBm       11g 54Mbps: -76 dBm   11n HT40 MCS7: -72dBm            |
WLAN Transmit Power | 5 GHz: 20dBm(FCC) /15dBm(CE) (EIRP) 2.4 GHz: 20dBm(FCC) / 16dBm(CE) (EIRP) 6 GHz: 12dBm(FCC)       |
WLAN Modes   | Infrastructure mode |
Wireless Security           | WEP, WPA/WPA2/WPA3, WPA-PSK/WPA2-PSK |
OTHERS | |
Certification      | FCC, CE, RoHS |
Package Contents           | Archer TXE75E V3 Magnetized Antenna Base with 1m RF Cable        2 High-Gain Antennas Low-Profile Bracket         Bluetooth Header Cable Quick Installation Guide Resource CD      |
System Requirements  | Supported operating systems include Windows 10, 11(64-bit). Currently 6 GHz Band only supported on Windows 11.    |
Environment    | Operating Temperature: 0~40 (32 ~104) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing       |
Notes | †Maximum wireless signal rates are the physical rates derived from  IEEE Standard 802.11 specifications. Actual wireless data throughput and  wireless coverage, and number of connected devices are not guaranteed and will  vary as a result of network conditions, AP limitations, and environmental  factors, including building materials, obstacles, volume and density of  traffic, and AP location. ‡Use of Wi-Fi 6 (802.11ax), Wi-Fi 6E, and features including OFDMA, MU-MIMO, 1024-QAM, or HE160 require APs to also support the corresponding features. The 160 MHz bandwidth may be unavailable in the 5 GHz band in some regions/countries due to regulatory restrictions. §Functionality of Archer TXE75E may be restricted on some computing systems and platforms. Please try to update the device’s driver for feature compatibility. Based on IEEE 802.11ax specification Intel Engineering simulation. 160 MHz channels and Wi-Fi 6/6E technology advantages related to network-managed traffic enable lower latencies, more efficient operation, and higher reliability vs. random contention-based traffic of standard Wi-Fi 5 networks. Intel and the Intel logo are trademarks of Intel  Corporation or its subsidiaries in the U.S. and/or other countries. *Use of WPA3 requires APs to also support the corresponding feature. **Several new features are introduced in the Bluetooth Core Specification 5.0 and 5.2 Release, including 2 faster speed and 4 broader coverage compared with Bluetooth 4. Actual network speed may be limited by the rate of the product's Ethernet WAN or LAN port, the rate supported by the network cable, Internet service provider factors and other environmental conditions. |
