TP-Link CAP1750 AC1750 Wireless Dual Band Gigabit Ceiling Mount Access Point Simultaneous 450Mbps 2.4GHz/1300Mbps 5GHz totals 1750Mbps Speeds CAP 1750
,gravity=Center,allowExpansion)

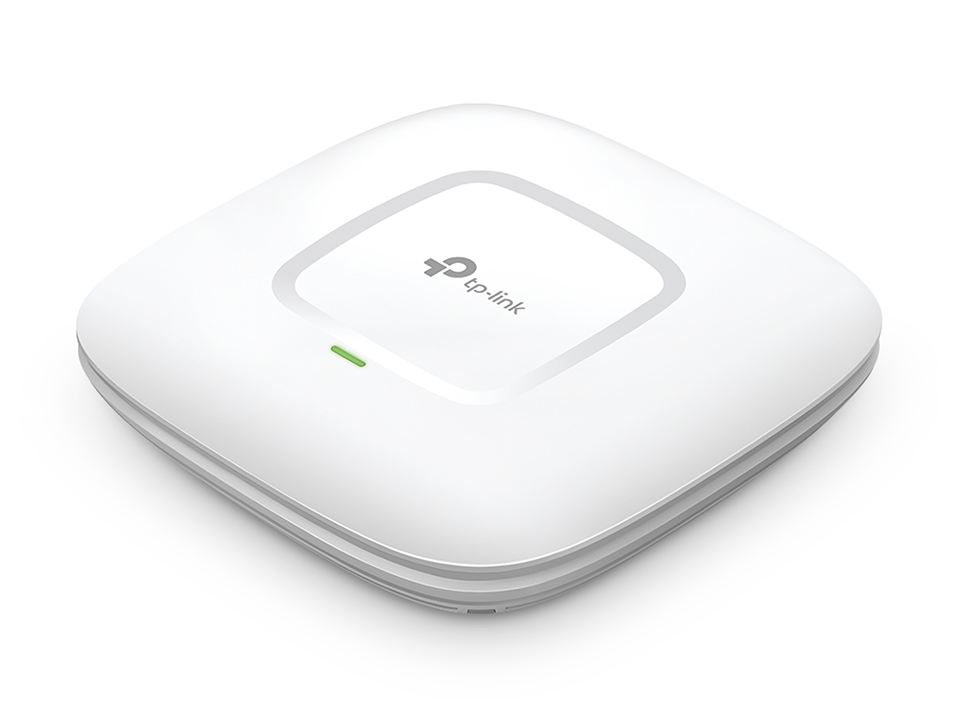

TP-Link CAP 1750 AC1750 Wireless Dual Band Gigabit Ceiling Mount Access Point
Simultaneous 450Mbps on 2.4GHz and 1300Mbps on 5GHz totals 1750Mbps Wi-Fi speeds
Hardware wireless controller enables administrators to easily manage hundreds of CAPs
Support Power over Ethernet (802.3at) for convenient and affordable installation
Simple mounting design for easy attachment to a wall or ceiling
Captive portal provides one convenient method of authentication for Wi-Fi guests
Enterprise class Wi-Fi security helps to decrease network security threats
Multi-SSID divides multiple wireless networks for different user types
Band Steering automatically moves dual band devices onto the wider 5GHz band for faster connections
Load balance ensures large numbers of users have smooth network experiences in high density business networks
FAT/FIT mode switchable provides a range of network possibilities
HARDWARE FEATURES
InterfaceGigabit Ethernet (RJ-45) Port *1(Support IEEE802.3at PoE)
Physical Security LockKensington Lock Slot
ButtonReset, FIT/FAT
Power SupplyPoE or external 12VDC/1.5A power supply
Power Consumption12.7W
Dimensions ( W x D x H )(180*180*47.5mm)
Antenna Type2.4GHz 3*4dBi
5GHz 3*4Bi
MountingCeiling /Wall Mounting (Kits included)
Watch DogYes
WIRELESS FEATURES
Wireless StandardsIEEE 802.11ac, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, IEEE 802.11a
Frequency2.4GHz and 5 GHz
Transmit PowerCE:
≤19dBm(2.4GHz)
≤23dBm(5GHz)
FCC:
≤25dBm(2.4GHz)
≤27dBm(5GHz)
SOFTWARE FEATURES
Wireless FunctionsMultiple SSIDs (Up to 16 SSIDs)
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
WDS
Maximum Client Connections Setting
Wireless SecurityGuest Network
Wireless MAC Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
WPA / WPA2-Enterprise,WPA-PSK / WPA2-PSK
SKU: CAP 1750
Reference ID: 899350
