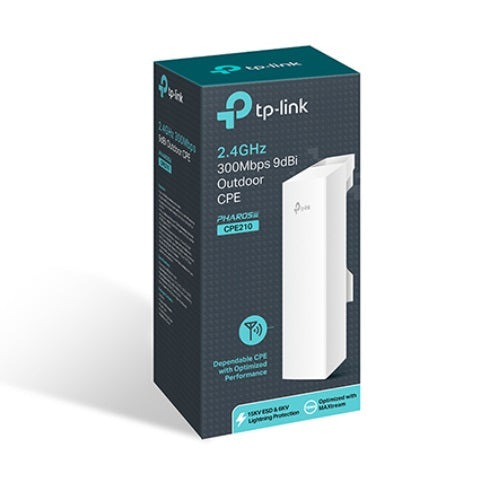

TP-Link CPE210 2.4GHz 300Mbps 9dBi Outdoor CPE Access Point 27dBm 5km Passive PoE MIMO antenna

• TP-Link CPE210 2.4GHz 300Mbps 9dBi Outdoor CPE Access Point
• Built-in 9dBi 2x2 dual-polarized directional MIMO antenna
• Adjustable transmission power from 0 to 27dBm/500mw
• System-level optimizations for more than 5km long range wireless transmission
• TP-LINK Pharos MAXtream TDMA (Time-Division-Multiple-Access) technology improves product performance in throughput, capacity and latency performance, ideal for PTMP applications
• Centralized Management System – Pharos Control
• AP / Client / Bridge / Repeater / AP Router / AP Client Router (WISP) operation modes
• Passive PoE Adapter supports up to 60 meter (200 feet) Power over Ethernet deployment and allows the device to be reset remotely
• HARDWARE FEATURES
• ProcessorQualcomm Atheros 560MHz CPU, MIPS 74Kc
• Memory64MB DDR2 RAM, 8MB Flash
• Interface1 10/100Mbps Shielded Ethernet Port (LAN0,Passive PoE in)
• 1 10/100Mbps Shielded Ethernet Port (LAN1, Passive PoE Passthrough)
• 1 Grounding Terminal
• 1 Reset Button
• Power SupplyPassive Power over Ethernet via LAN0 (+4,5pins; -7,8pins)
• Voltage range: 16-27VDC
• Power Consumption10.5 Watts Max
• Note: When deployed using Passive PoE, the power drawn from the power source will be higher by some amount depending on the length of the connecting cable.
• Dimensions ( W x D x H )224 x 79 x 60 mm
• Antenna TypeBuilt-in 9dBi 2x2 Dual-polarized Directional Antenna
• Beam Width: 65° (H-Plane) / 35° (E-Plane)
• Note: For more details, please refer to datasheet
• Protection15KV ESD Protection
• 6KV Lightning Protection
• EnclosureOutdoor ASA stabilized plastic material
• IPX5 waterproof Certification
• WIRELESS FEATURES
• Wireless StandardsIEEE 802.11b/g/n (with Pharos MAXtream disabled)
• Proprietary ProtocolTDMA Mode (with Pharos MAXtream enabled)
• Wireless SpeedsUp to 300Mbps (40MHz,Dynamic)
• Up to 144.4Mbps (20MHz,Dynamic)
• Up to 72.2Mbps (10MHz,Dynamic)
• Up to 36.1Mbps (5MHz,Dynamic)
• Frequency2.4~2.483GHz
• Note: Available operating frequency may vary depending on the limitation
