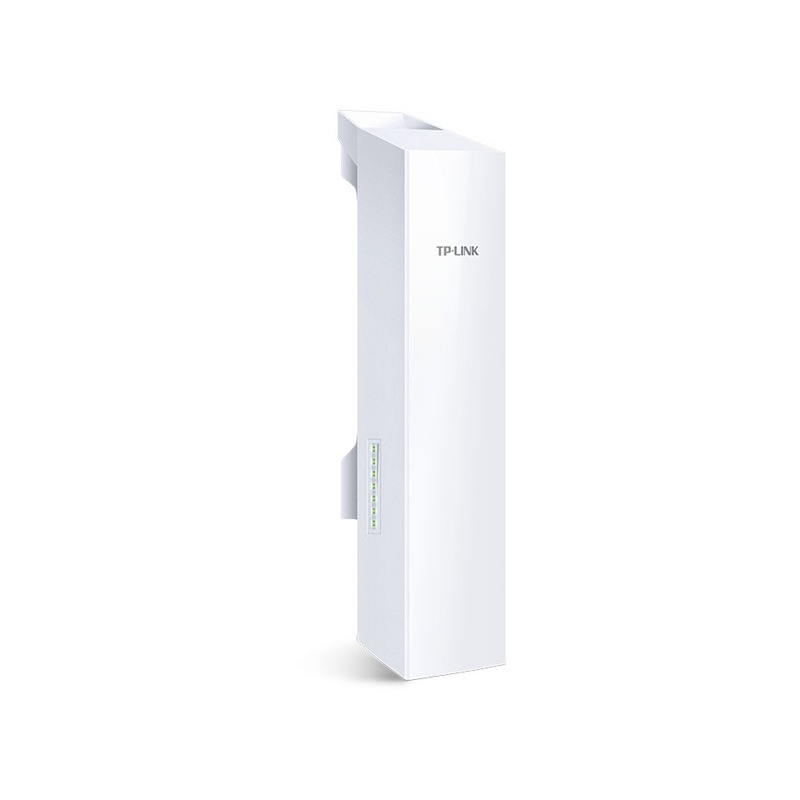

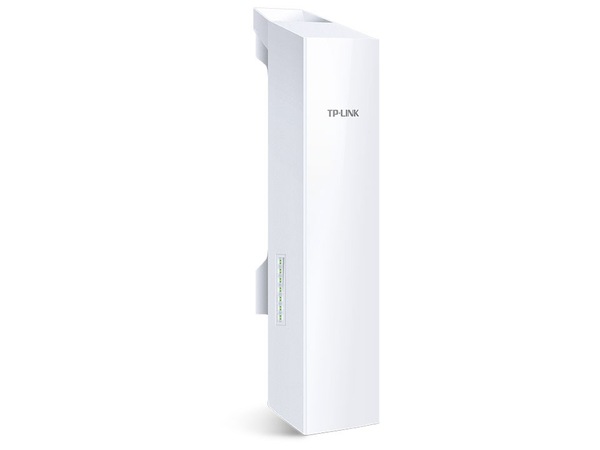

TP-Link CPE220 2.4GHZ 300Mbps 12dBi Outdoor CPE

Image 1
Hurry! 6 items left!
$85

Collect 85 Everyday Rewards points

Log in to MyDeal to link your card
Free Shipping
Sold & shipped by ARC Online
Secure ways to pay at checkout

Overview

  • TP-Link CPE220 2.4GHZ 300Mbps 12dBi Outdoor CPE
  • Built-in 12dBi Dual-Polarized Directional Antenna
  • 6KV Lightning Protection
  • 15KV ESD Protection
  • Passive PoE Adapter
  • Weather Proof Enclosure
  • Multiple Operating Modes
  • 3 Years Limited Warranty

TP-Link CPE220 2.4GHZ 300Mbps 12dBi Outdoor CPE

  • Built-in 12dBi 2x2 dual-polarized directional MIMO antenna
  • Adjustable transmission power from 0 to 30dBm/1000mw
  • System-level optimizations for more than 13km long-range wireless transmission
  • TP-LINK Pharos MAXtream TDMA (Time-Division-Multiple-Access) technology improves product performance in throughput, capacity and latency performance, ideal for PTMP applications
  • Centralised Management System – Pharos Control
  • AP / Client / AP Router / AP Client Router (WISP) operation modes
  • Passive PoE Adapter supports up to 60 meters (200 feet) Power over Ethernet deployment and allows the device to be reset remotely



Hardware Features

  • Processor Qualcomm Atheros 560MHz CPU, MIPS 24Kc
  • Memory 64MB DDR2 RAM, 8MB Flash
  • Interface 1 10/100Mbps Shielded Ethernet Port (LAN0,Passive PoE in)
  • 1 10/100Mbps Shielded Ethernet Port (LAN1)
  • 1 Grounding Terminal
  • 1 Reset Button
  • Power Supply Passive Power over Ethernet via LAN0 (+4,5pins; -7,8pins)
  • Voltage range: 16-27VDC
  • Power Consumption 10.8 Watts Max

Note: When deployed using Passive PoE, the power drawn from the power source will be higher by some amount depending on the length of the connecting cable.

  • Dimensions ( W x D x H ) 11×3.1×2.1 inch (276×79×60 mm)
  • Antenna Type Built-in 12dBi 2x2 Dual-polarized Directional Antenna
  • Beam Width: 60° (H-Plane) / 30° (E-Plane)
  • Note: For more details, please refer to datasheet
  • Protection 15KV ESD Protection
  • 6KV Lightning Protection
  • Enclosure Outdoor ASA stabilized plastic material
  • IPX5 waterproof Certification

Wireless Features

  • Wireless Standards IEEE 802.11b/g/n (with Pharos MAXtream disabled)
  • Proprietary Protocol TDMA Mode (with Pharos MAXtream enabled)
  • Wireless Speeds
    • Up to 300Mbps (40MHz,Dynamic)
    • Up to 144.4Mbps (20MHz,Dynamic)
    • Up to 72.2Mbps (10MHz,Dynamic)
    • Up to 36.1Mbps (5MHz,Dynamic)
  • Frequency 2.4~2.483GHz

Note: Available operating frequency may vary depending on the limitations of the countries or regions in which the device is used.

  • Transmission Power 30dBm/1000mw (Adjustable power by 1dBm)

Note: Maximum transmission power may vary across different channels depending on the limitations of the countries or regions in which the device is used.

Software Features

  • Wireless Configurations Pharos MAXtream TDMA Technology
  • 802.11b/g/n Modes
  • Selectable Channel Width: 5/10/20/40MHz
  • Automatic Channel Selection
  • Transmission Power Control
  • Dynamic Frequency Selection (DFS)
  • WDS Enable/Disable
  • Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-bit WEP Encryption
  • SSID Broadcast Enable/Disable
  • Multi-SSID with VLAN Tagging (AP mode only)
  • Distance/ACK Timeout Setting
  • Wireless MAC Address Filter
  • Wireless Advanced:
    > Beacon Interval/RTS Threshold/Fragmentation
    >Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia
  • Management Discovery and Remote Management via Pharos Control application
  • HTTP/HTTPS Web-based management
  • System Log
  • SNMP Agent(v2c)
  • Ping Watch Dog
  • Dynamic DDNS
  • SSH Server
  • System Tools Wireless Signal Quality Indicators:
  • Signal Strength/Noise/Transmit CCQ/CPU/Memory
  • Monitors: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP
  • Spectrum Analyzer
  • Speed Test
  • Ping
  • Traceroute
  • System-level Optimizations Optimized IGMP Snooping/Proxy for multicast applications
  • Hardware watch dog

POE Adapter Features

  • Dimensions(W x D x H) 85.8×43.9×31.9 mm
  • Interfaces
    • 1 AC Jack with Earth Ground
    • 1 10/100/1000Mbps Shielded Ethernet Port (Power + Data)
    • 1 10/100/1000Mbps Shielded Ethernet Port (Data)
  • Button Remote Reset Button
  • Power Status LEDs Green
  • Input 100-240VAC, 50/60Hz
  • Output 24VDC, 0.5A Max
  • +4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet)
  • Efficiency >80%
  • Certifications CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark

Others

  • Certification CE, FCC, RoHS, IPX5
  • Package Contents Outdoor Wireless CPE
  • 24V 0.5A Passive PoE Adapter
  • Pole Mounting Straps
  • AC Power Cord
  • Installation Guide
  • System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 10, Windows 8, Windows 7,
  • MAC OS, NetWare, UNIX or Linux.

Note: We recommend you to use one of following Web browsers for an improved user experience: Google Chrome, Safari, and Firefox. IE browsers are not recommended.

  • Environment Operating Temperature: -40?~70? (-40?~158?)
  • Storage Temperature: -40?~70? (-40?~158?)
  • Operating Humidity: 10%~90% non-condensing
  • Storage Humidity: 5%~95% non-condensing

Specifications

  • GTIN 6935364091583
  • Weight 1.1880
  • Brand TP-Link





GTIN: 6935364091583
