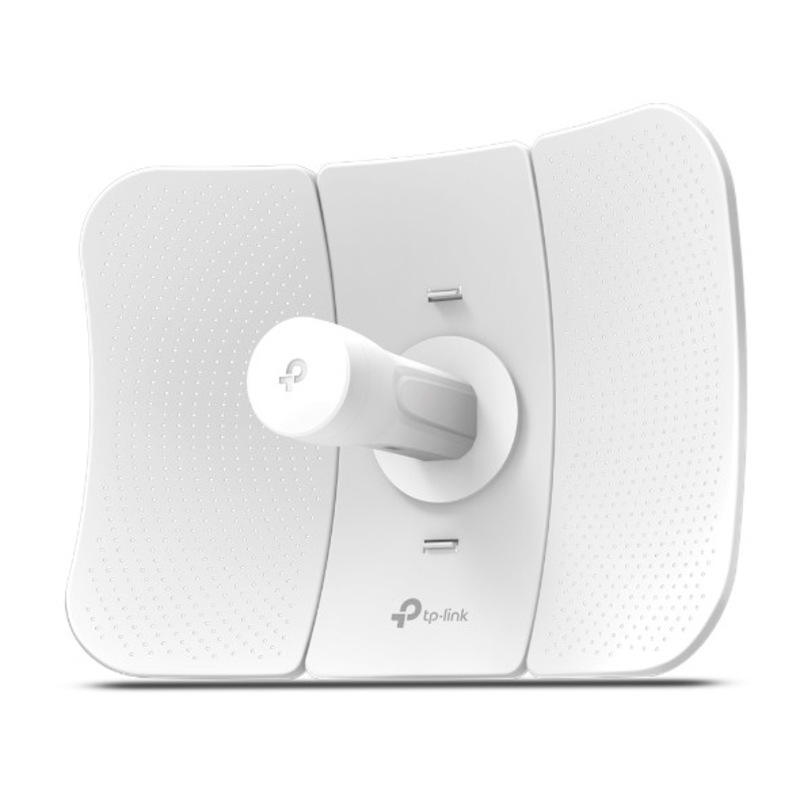

TP-Link CPE605 5GHz 150Mbps 23dBi Outdoor CPE

Image 1
Hurry! 8 items left!
$99

Collect 99 Everyday Rewards points

Log in to MyDeal to link your card
Free Shipping
Sold & shipped by ARC Online
Secure ways to pay at checkout

Overview

  • TP-Link CPE605 5GHz 150Mbps 23dBi Outdoor CPE
  • Processor: Qualcomm 560MHz CPU, MIPS 74Kc
  • Memory: 64MB DDR2 RAM,8MB Flash
  • 1x 10/100Mbps Shielded Ethernet Port (LAN/POE)
  • Power: Passive Power over Ethernet via LAN, Voltage range: 16-27VDC
  • Antenna Gain: 23dBi
  • Protection: 15KV ESD Protection, 6KV Lightning Protection
  • IEEE 802.11a/n
  • CPE605
  • 3 Years Limited Warranty

Features

  • Up to 150Mbps on 5GHz wireless data rates
  • 23dBi high-gain directional antenna and a dedicated metal reflector, ideal for long-distance application
  • Innovative snap-lock parts make for fast assembly and a sturdy structural design keeps CPE605 stable even in strong winds
  • Durable IP65 weatherproof enclosure along with 15 kV ESD and 6 kV lightning protection ensures all-weather suitability
  • Passive PoE supports to allow flexible deployment and convenient installation

With 23dBi high-gain directional Cassegrain antenna and dedicated metal reflector, the CPE605 provides excellent beam directivity, improved latency and noise immunity. Professional performance, coupled with user-friendly design, makes the 5GHz 150Mbps 23dBi Outdoor CPE605 an ideal choice and cost-effective solution for outdoor wireless networking applications.

Hardware Features

  • Processor Qualcomm 560MHz CPU, MIPS 74Kc
  • Memory 64MB DDR2 RAM,8MB Flash
  • Interface 1 10/100Mbps Shielded Ethernet Port (LAN/POE)
  • 1 Reset Button
  • Power Supply Passive Power over Ethernet via LAN (+4,5pins; -7,8pins)
  • Voltage range: 16-27VDC
  • Dimensions ( W x D x H ) 350 x 255 x 207 mm (13.8 x 10.0 x 8.1 in.)
  • Antenna Gain 23dBi
  • Antenna Beamwidth 7°(Azimuth), 10°(Elevation)
  • Protection 15KV ESD Protection
  • 6KV Lightning Protection
  • Enclosure Material: Outdoor PC stabilized plastic
  • Weatherproof: IP65 water and dust proof design

Wireless Features

  • Wireless Standards IEEE 802.11a/n
  • Proprietary Protocol TDMA Mode (with Pharos MAXtream enabled)
  • Wireless Speeds
    • Up to 150Mbps (40MHz,Dynamic)
    • Up to 72.2Mbps (20MHz,Dynamic)
    • Up to 36.1Mbps (10MHz,Dynamic)
    • Up to 18.05Mbps (5MHz,Dynamic)
  • Frequency 5.15~5.85GHz

Note: Available operating frequency may vary depending on the limitations of the countries or regions in which the device is used.
Transmit Power Max. 23dBm (Adjustable power by 1dBm)

Software Features

  • IPv6 Yes
  • Network Configuration WAN: Static/Dynamic/PPPoE/L2TP/PPTP
  • LAN: Static/Dynamic/DHCP
  • Forwarding: ALG/UPnP/Virtual Server/Port Trigger
  • Security: SPI Firewall/ Ping Forbidden/DoS Protection
  • Access Control
  • Static Routing
  • Bandwidth Control
  • IP & MAC Binding
  • Wireless Configurations Pharos MAXtream TDMA Technology
  • Selectable Channel Width: 5/10/20/40MHz
  • Auto Channel Selection
  • Transmit Power Control
  • Dynamic Frequency Selection(DFS)
  • WDS Enable/Disable
  • Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-bit WEP Encryption
  • SSID Broadcast Enable/Disable
  • Multi-SSID with VLAN Tagging(AP Mode only)
  • Distance/ACK Timeout Setting
  • Wireless MAC Address Filter
  • Wireless Advanced:
  • Beacon Interval/RTS Threshold/Fragmentation Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia
  • Long Range PtP
  • Management Discovery and Remote Management via Pharos Control application
  • HTTP/HTTPS Web-based management
  • System log
  • SNMP Agent(v2c)
  • Ping Watch Dog
  • Dynamic DDNS
  • SSH Server
  • System Tools Indicators:Signal Strength/Noise/Transmit CCQ/CPU/Memory
  • Monitors: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP
  • Spectrum Analyzer
  • Speed Test
  • Ping
  • Traceroute
  • Antenna Alignment
  • System-level Optimizations Optimized IGMP Snooping/Proxy for multicast applications

Others

  • Certification CE, FCC, RoHS, IP65
  • Package Contents
    • Outdoor Wireless CPE
    • 24V 0.25A Passive PoE Adapter
    • Pole Mounting Kits
    • AC Power Cord
    • Installation Guide
  • System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 10, Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux.

Note: We recommend you to use one of following Web browsers for an improved user experience: Google Chrome, Safari, and

  • Firefox. IE browsers are not recommended.
  • Environment Operating Temperature: -40?~70? (-40?~158?)
  • Storage Temperature: -40?~70? (-40?~158?)
  • Operating Humidity: 10%~90% non-condensing
  • Storage Humidity: 5%~95% non-condensing

Specifications

  • GTIN: 6935364089887
  • Weight: 1.7390
  • Brand: TP-Link





GTIN: 6935364089887
