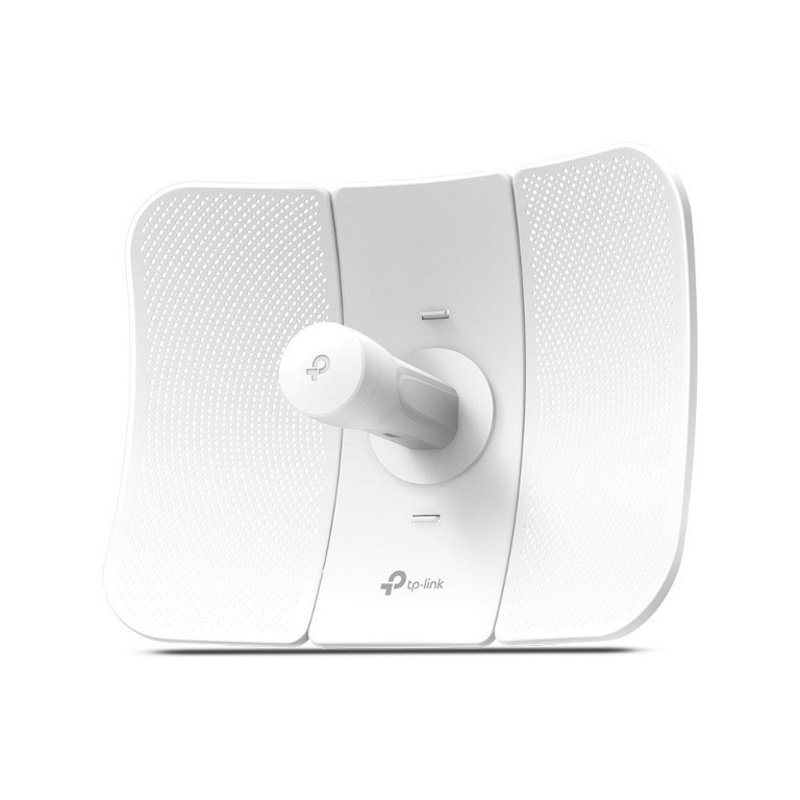

TP-Link CPE610 5GHz 300Mbps 23dBi Outdoor CPE

Image 1
Hurry! 8 items left!
$115

Collect 115 Everyday Rewards points

Log in to MyDeal to link your card
Free Shipping
Sold & shipped by ARC Online
Secure ways to pay at checkout

Overview

  • TP-Link CPE610 5GHz 300Mbps 23dBi Outdoor CPE
  • Qualcomm 560MHz CPU, MIPS 74Kc Processor
  • 64MB DDR2 RAM, 8MB Flash Memory
  • 1x 1/10/100Mbps Shielded Ethernet Port (LAN/POE)
  • Passive Power over Ethernet via LAN (+4, 5pins; -7, 8pins)
  • Antenna Beamwidth: 9 Degree (Azimuth), 7 Degree (Elevation)
  • IEEE 802.11a/n Wireless Standards
  • 15KV ESD Protection, 6KV Lightning Protection
  • Weatherproof: IP65 water and dust proof design
  • CPE610
  • 3 Years Limited Warranty

TP-Link CPE610 5GHz 300Mbps 23dBi Outdoor CPE MIMO antenna Access Point Client Bridge Repeater AP Router AP Client Router Passive PoE Weatherproof

  • Up to 300Mbps on 5GHz wireless data rates
  • 23dBi high-gain directional 2×2 MIMO antenna and a dedicated metal reflector, ideal for long-distance application
  • Excellent beam directivity, improved latency and noise cancellation
  • Innovative snap-lock parts make for fast assembly and a sturdy structural design keeps CPE610 stable even in strong winds
  • Durable IP65 weatherproof enclosure along with 15 kV ESD and 6 kV lightning protection ensures all-weather suitability
  • TP-Link Pharos MAXtream TDMA technology improves throughput, capacity and latency performance
  • Pharos Control gives administrators a free, centralized management system
  • AP / Client / Bridge / Repeater / AP Router / AP Client Router (WISP) operation modes
  • Passive PoE supports to allow flexible deployment and convenient installation

Hardware Features

  • Processor Qualcomm 560MHz CPU, MIPS 74Kc
  • Memory 64MB DDR2 RAM,8MB Flash
  • Interface 1 1 10/100Mbps Shielded Ethernet Port (LAN/POE)
  • 1 Reset Button
  • Power Supply Passive Power over Ethernet via LAN (+4,5pins; -7,8pins)
  • Voltage range: 16-27VDC
  • Dimensions 360 × 280 × 207 mm (14.4 × 11.0 × 8.1 in.) (No mount)
  • Antenna Gain 23dBi
  • Antenna Beamwidth 9°(Azimuth), 7°(Elevation)
  • Protection 15KV ESD Protection
  • 6KV Lightning Protection
  • Enclosure Material: Outdoor PC stabilized plastic
  • Weatherproof: IP65 water and dust proof design

Wireless Features

  • Wireless Standards IEEE 802.11a/n
  • Proprietary Protocol TDMA Mode (with Pharos MAXtream enabled)
  • Wireless Speeds Up to 300Mbps (40MHz,Dynamic)
  • Up to 144.4Mbps (20MHz,Dynamic)
  • Up to 72.2Mbps (10MHz,Dynamic)
  • Up to 36.1Mbps (5MHz,Dynamic)
  • Frequency 5.15~5.85GHz
  • Transmit Power Max. 29dBm/790mW (Adjustable power by 1dBm)

Software Features

  • Operating Modes AP / Client / Bridge / Repeater / AP Router / AP Client Router (WISP Client)

Specifications

  • GTIN: 6935364081027
  • Weight: 2.1630
  • Brand: TP-Link



GTIN: 6935364081027
