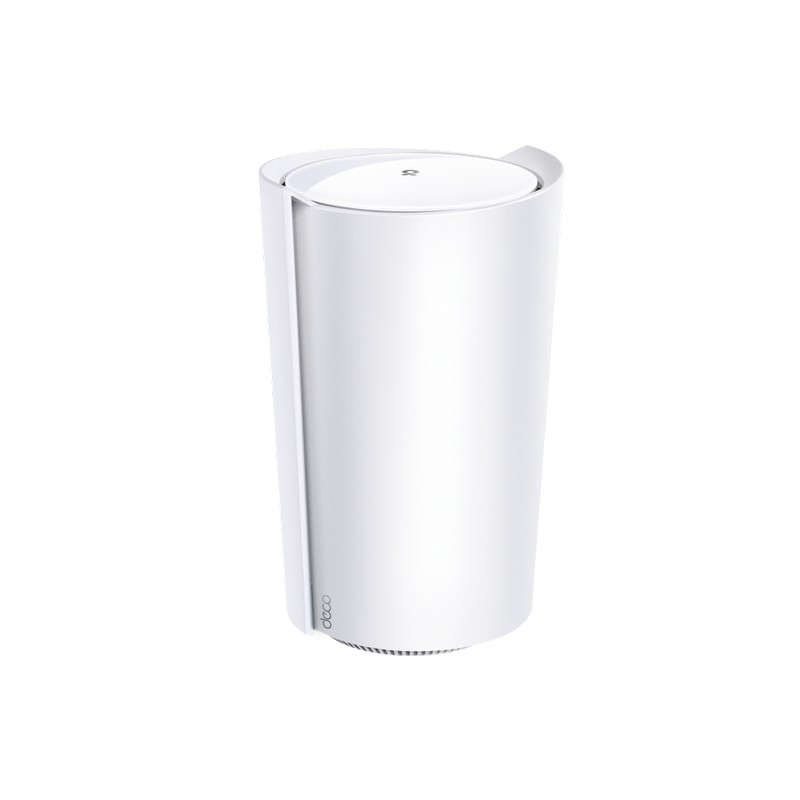

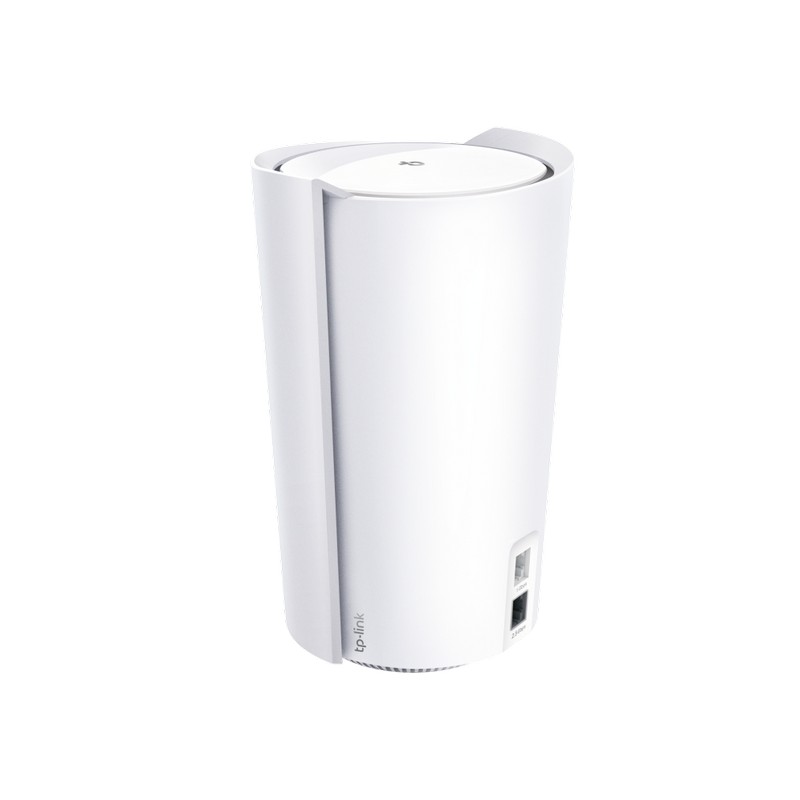

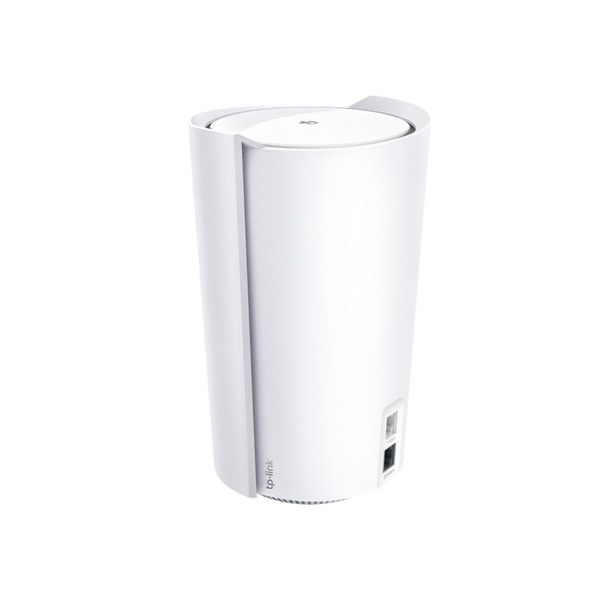

TP-Link Deco X90(1-pack) AX6600 Whole Home Mesh Wi-Fi System (WIFI6), 4-6 Bedroom Home, WPA3, TP-Link Homecare, OFDMA, MU-MIMO...
TP-Link Deco X90(1-pack) AX6600 Whole Home Mesh Wi-Fi System (WIFI6), 4-6 Bedroom Home, WPA3, TP-Link Homecare, OFDMA, MU-MIMO
WIRELESS
Standards Wi-Fi 6
IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11ax/n/b/g 2.4 GHz
WiFi Speeds AX6600
5 GHz: 4804 Mbps (802.11ax, HE160)
5 GHz: 1201 Mbps (802.11ax)
2.4 GHz: 574 Mbps (802.11ax)
WiFi Range 4-6+ Bedroom Houses (2-pack)
TP-Link Mesh Technology
Optional Ethernet backhaul work together to link Deco units to provide seamless coverage
AI-Driven Mesh
Intelligently learns the network environment to provide ideal Wi-Fi unique to your home
4x High-Gain Antennas (Internal)
Multiple antennas form a signal-boosting array to cover more directions and large areas
2x Smart Antennas (Internal)
Smart antennas auto-detect other Deco units to establish a stronger backhaul between one another to boost WiFi coverage
Tri-Band
Provides an extra 5 GHz band working exclusively as the strong backhaul, strengthening the WiFi coverage
Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range
WiFi Capacity Very High
Tri-Band
Distribute devices to different bands for optimal performance
4x4 MU-MIMO
Simultaneously communicates with multiple MU-MIMO clients
OFDMA
Simultaneously communicates with multiple WiFi 6 clients
8 Streams
More than enough bandwidth for connected devices
Working Modes Router Mode
Access Point Mode
HARDWARE
Processor 1.5 GHz Quad-Core CPU
Ethernet Ports 1x 2.5 Gbps Port
1x Gigabit Port
*Per Deco Unit
Supports WAN/LAN auto-sensing
Buttons Reset Button
Power 12 V ? 2.5 A
SECURITY
WiFi Encryption WPA
WPA2
WPA3
Network Security SPI Firewall
Access Control
HomeShield Security
Real-Time IoT Protection
Malicious Site Blocker
Intrusion Prevention System
DDoS Attack Prevention
Home Network Scanner
Guest Network 1x 5 GHz Guest Network
1x 2.4 GHz Guest Network
SOFTWARE
Protocols IPv4
IPv6
Service Kits HomeShield
Learn More>
Parental Controls HomeShield Parental Controls
Custom Profiles
Professional Content Filter Library
Family Time
Bedtime
Off Time
Time Rewards
Family Online Time Ranking
Pause the Internet
Weekly and Monthly Reports
WAN Types Dynamic IP
Static IP
PPPoE
PPTP
L2TP
Quality of Service HomeShield QoS
QoS by Device
Cloud Service OTA Firmware Upgrade
TP-Link ID
DDNS
NAT Forwarding Port Forwarding
UPnP
IPTV IGMP Proxy
IGMP Snooping
Bridge
Tag VLAN
DHCP Address Reservation
DHCP Client List
Server
DDNS TP-Link
Management Deco App
PHYSICAL
Dimensions (WxDxH) 5.1 x 4.8 x 8.3 in
(130 x 123 x 210 mm)
Package Contents Deco X90 (2-pack)
2 Deco X90 Units
1 RJ45 Ethernet Cable
2 Power Adapters
1 Quick Installation Guide
Deco X90 (1-pack)
1 Deco X90 Unit
1 RJ45 Ethernet Cable
1 Power Adapter
1 Quick Installation Guide
OTHERS
System Requirements Android 4.4 or later
iOS 9.0 or later
Certifications CE, EAC, FCC, IC, RoHS, RCM
Environment Operating Temperature: 0?~40? (32? ~104?)
Storage Temperature: -40?~70? (-40? ~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
TEST DATA
WiFi Transmission Power CE:
<20 dBm (2.4 GHz)
<30 dBm (5 GHz)
FCC:
<30 dBm (2.4 GHz)
<30 dBm (5 GHz)
