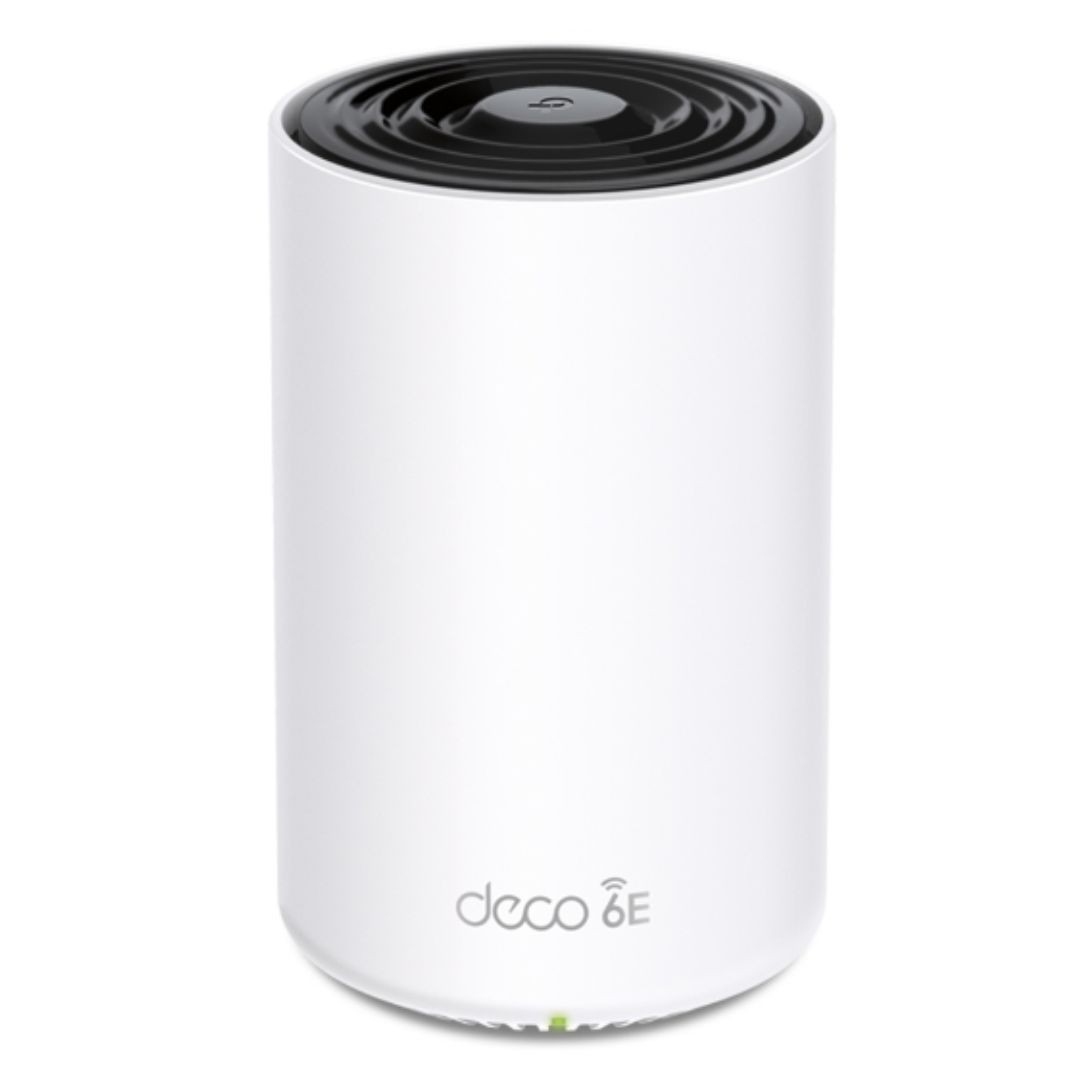

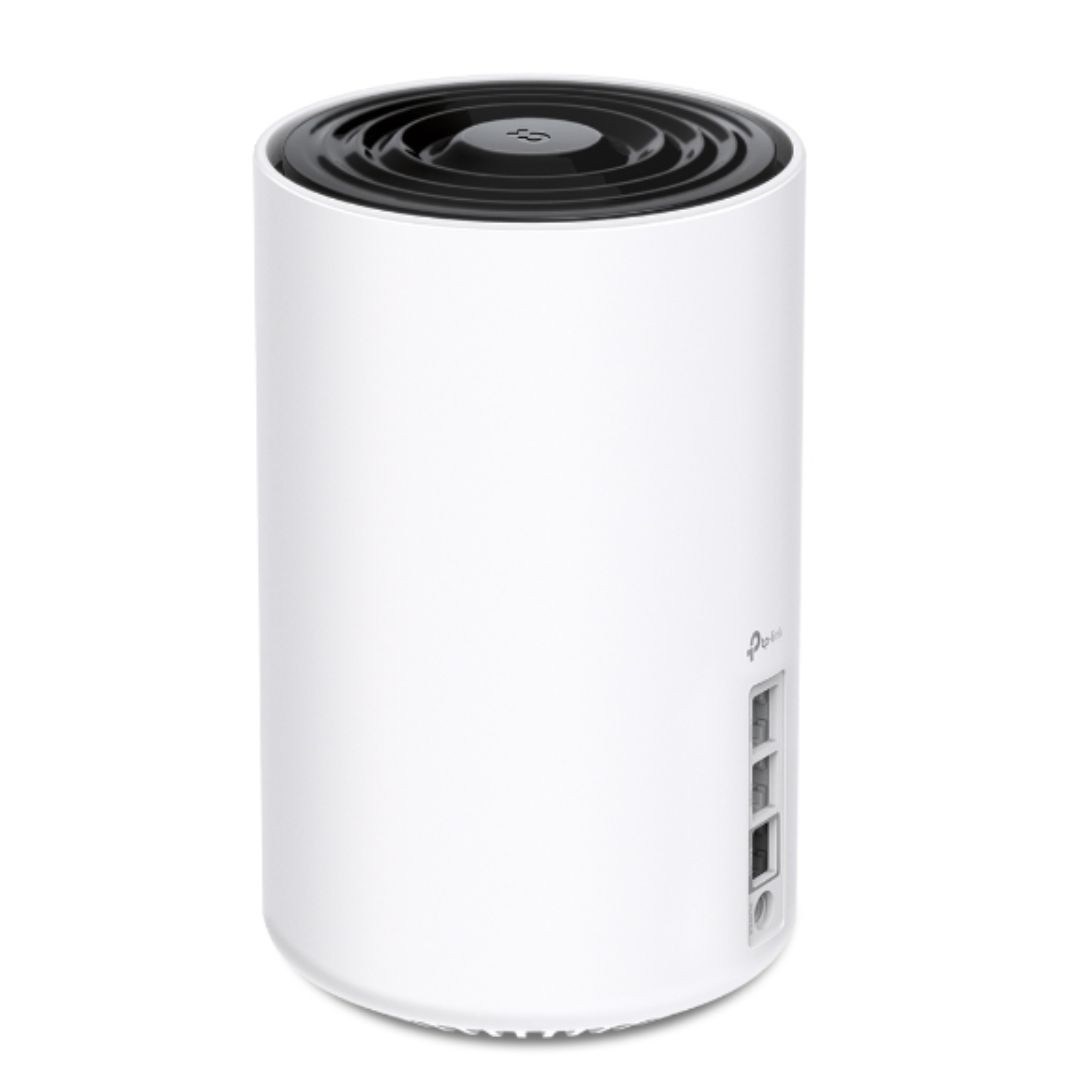

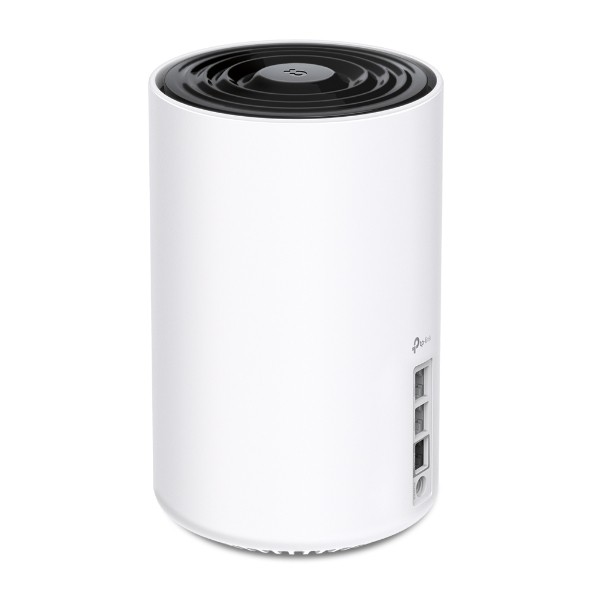

TP-Link Deco X73-DSL AX5400 VDSL Whole Home Mesh Wi-Fi 6 System

Key Features

• Whole Home WiFi 6E: Covers up to 670 m² with seamless, high-performance WiFi—eliminate dead zones and buffering.

• 6 GHz Band: Brand-new frequency band reduces interference and provides a strong dedicated backhaul.

• True Tri-Band Speed: Combined speeds up to 5400 Mbps for up to 200 connected devices.

• AI-Driven Mesh: Intelligent, adaptive mesh system provides optimal connectivity as you move around your home.

• TP-Link HomeShield: Advanced network and IoT protection, including intrusion prevention and malicious site blocking.

• Easy Setup: Guided step-by-step through the Deco app.

• Universal Compatibility: Works with all internet service providers and supports all WiFi generations.

Wireless Specifications

• WiFi Standard: Wi-Fi 6E (802.11ax)

• Bands:

  • 6 GHz: 2402 Mbps (HE160)

  • 5 GHz: 2402 Mbps (HE160)

  • 2.4 GHz: 574 Mbps

• Coverage:

  • 3-Pack: 4–7+ Bedroom Houses

  • 2-Pack: 3–5 Bedroom Houses

  • 1-Pack: 1–3 Bedroom Houses

• Antennas: 4× Internal High-Gain Antennas

• Beamforming: Yes

• WiFi Capacity: Very High – 6 Streams, Tri-Band, OFDMA, MU-MIMO

• Mesh Technology: TP-Link Mesh with optional Ethernet backhaul

• Operating Modes: Router Mode, Access Point Mode

Security Features

• Network Security: SPI Firewall, Access Control

• HomeShield Security Suite:

  • Real-Time IoT Protection

  • Malicious Site Blocker

  • Intrusion Prevention System

  • DDoS Attack Prevention

  • Home Network Scanner

• WiFi Encryption: WPA/WPA2/WPA3-Personal

• Guest Network: 6 GHz, 5 GHz, and 2.4 GHz guest networks

VPN Support

• VPN Server: OpenVPN, PPTP, L2TP/IPSec

• VPN Client: OpenVPN, PPTP, L2TP/IPSec

Hardware

• Ethernet Ports (per unit): 1× 2.5 Gbps Port, 2× Gigabit Ports (WAN/LAN auto-sensing)

• Buttons: Reset Button

• Dimensions: 4.1 × 4.1 × 6.7 in (105 × 105 × 169 mm)

Software Features

• Protocols: IPv4, IPv6

• WAN Types: Dynamic IP, Static IP, PPPoE, PPTP, L2TP

• QoS: HomeShield QoS (by device)

• Cloud Services: OTA Firmware Upgrade, TP-Link ID, DDNS

• NAT Forwarding: Port Forwarding, UPnP

• IPTV: IGMP Proxy, IGMP Snooping, Bridge, Tag VLAN

• DHCP: Address Reservation, Client List, Server

• Management: Deco App

Parental Controls

• Custom Profiles

• Professional Content Filter Library

• Family Time, Bedtime, Off Time

• Time Rewards

• Online Time Ranking

• Pause the Internet

• Usage Reports (Weekly/Monthly)

WiFi Transmission Power

• CE: <20 dBm (2.4 GHz), <23 dBm (5 GHz/6 GHz)

• FCC: <30 dBm (2.4 GHz/5 GHz/6 GHz)

Package Contents

• 3-Pack: 3 Deco XE75 Pro units, 3 Power Adapters, 1 RJ45 Cable, Quick Installation Guide

• 2-Pack: 2 Deco XE75 Pro units, 2 Power Adapters, 1 RJ45 Cable, Quick Installation Guide

• 1-Pack: 1 Deco XE75 Pro unit, 1 Power Adapter, 1 RJ45 Cable, Quick Installation Guide

Certifications

• CE, FCC, RoHS

Environment

• Operating Temperature: 0°C~40°C (32°F~104°F)

• Storage Temperature: -40°C~60°C (-40°F~140°F)

• Operating Humidity: 10%~90% RH (non-condensing)

• Storage Humidity: 5%~90% RH (non-condensing)
