TP-LINK EAP100 Wireless Bridge Kit 2.4Ghz Outdoor Ap 0.5Km Omada

Image 1
Image 2
Image 3
Image 4
Hurry! 12 items left!
$106

Collect 106 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by Radio Parts
Secure ways to pay at checkout

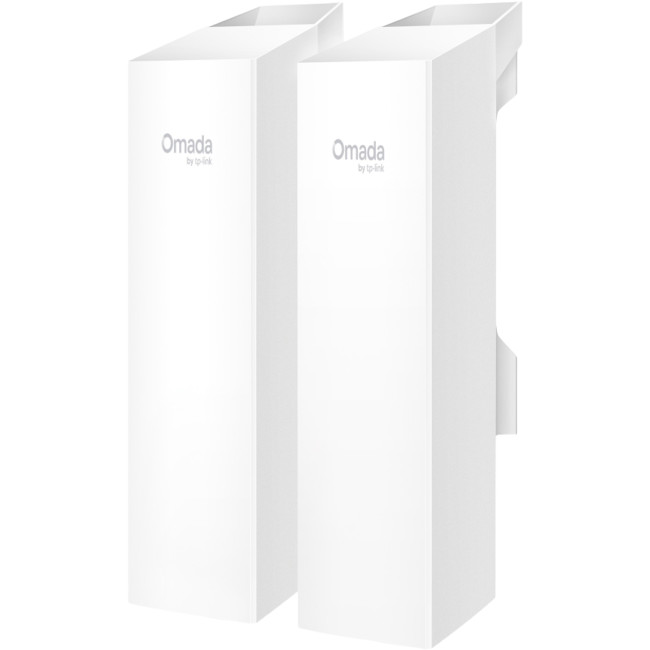

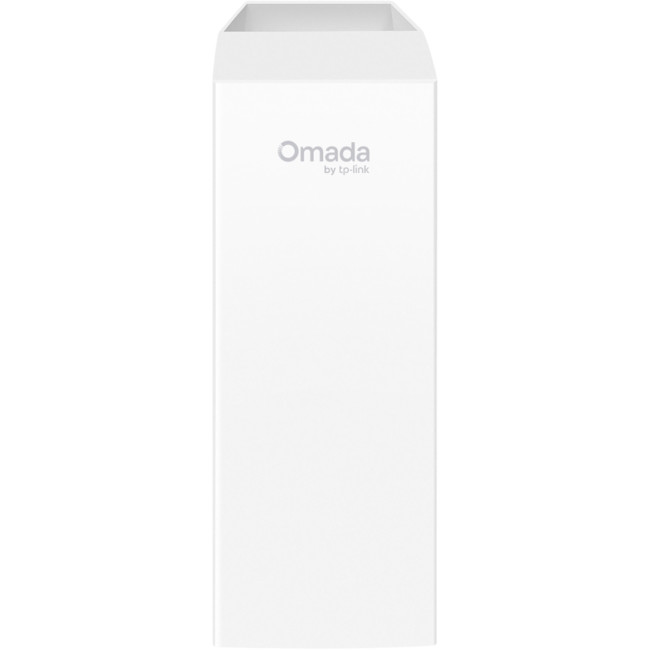

Omada 2.4GHz 300Mbps Indoor/Outdoor Wireless Bridge
  • Up to1640 ft (500 m) Wi-Fitransmission
  • Equipped with OmadaSmartBridging: Our unique design for the most effortless and easy bridge setup ever.
  • Plug-and-Play Preconfigured Kit: Preconfigured for instant auto-pairing, the bridges deliver instant connectivity right out of the box. Simply power on and go.Ideal for quick deployments.
  • App-Guided Alignment: Visualized App-Guided Alignment for long-distance setups and Instant Speed Testing for installation verification.
  • Flexible Power Supply:802.3af PoE, 24VPassive PoE, and12V DC(compatible with TP-Link solar power supply systems).
  • 3× Fast Ethernet Ports:Connects more cameras and devices without an extra switch.?
  • Built for Tough Outdoor Conditions:Features an IP65 weatherproof enclosure andoperating range of -40°Fto +158°F.
  • Remote Monitoring & Management:Choose Standalone mode or Omada SDN mode for remotecentralized management via Web UI or app

Specifications
HARDWARE FEATURES

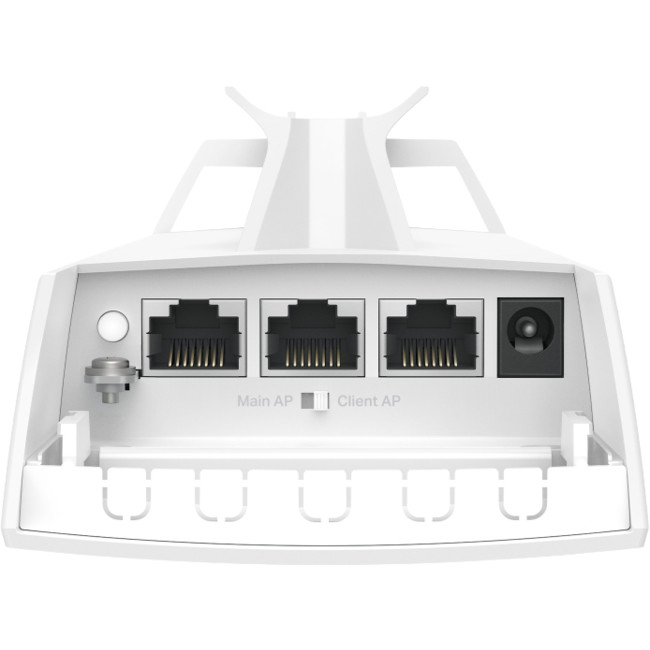

Interface 3x 10/100 Mbps Ethernet Ports
Button Reset
Power Supply 12V DC / 802.3af PoE / 24V Passive PoE / 48V Passive PoE
Max. Power Consumption 4.8 W
Dimensions ( W x D x H ) 3.1 x 2.4 x 8.8 in (79 × 60 × 224 mm)
Antenna Internal 2×2 Dual-polarized directional MIMO antennas
2.4 GHz: 8.0 dBi
Horizontal:70°, Vertical: 70°
Weatherproof Enclosure IP65

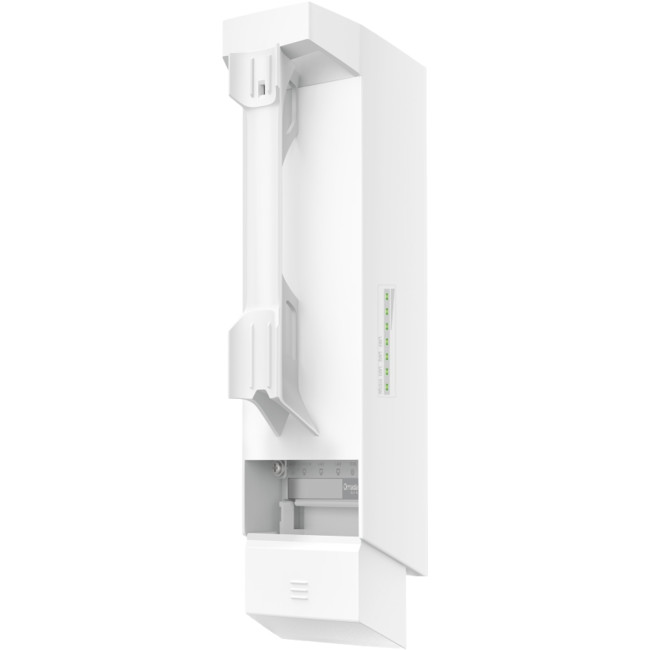

Mounting Pole and wall mounting ( Pole accessories included)
WIRELESS FEATURES
Coverage 500 m (0.31 mi)*
Wireless Standards IEEE 802.11b/g/n
Frequency 2.4 GHz
Signal Rate 2.4 GHz: Up to 300 Mbps
Wireless Functions • MIMO: 2.4G 2 × 2 MIMO
• Mesh
• Beamforming
• Channel: 1-11 (US); 1-13 (EU)
• Multiple SSIDs:8
• Wireless Statistics
• Wireless Schedule
• Reboot Schedule
• RADIUS Accounting
• Static IP/Dynamic IP
• Rate Limit
• Guest Network
• Enable/Disable Wireless Radio
• Enable/Disable SSID Broadcast
Wireless Security • VLAN
• Rogue AP Detection
• Maximum number of MAC Filter: 4,000
• Wireless Encryption
Transmission Power • CE:
<20dBm (2.4 GHz, EIRP);

• FCC:
<22dBm (2.4 GHz)
Management Features
Omada App Yes
Restore & Backup Yes
Firmware update via Web Yes
NTP Yes
Centralized Management • Omada Hardware Controller
• Omada Software Controller
• Omada App
Email Alerts Yes
LED ON/OFF Control Yes
SNMP Yes
System Logging Local/Remote Syslog Yes
SSH Yes
Web-based Management Yes
OTHERS
Certification CE, FCC, RoHS
Package Content • EAP100-Bridge KIT
• Installation Guide
• Pole Mounting Kit
Environment • Operating Temperature: -40 °C-70 °C (-40 °F-158 °F);
• Storage Temperature: -40 °C-70 °C (-40 °F-158 °F);
• Operating Humidity: 10%-90% non-condensing;
• Storage Humidity: 5%-90% non-condensing

Weight: 0.785
