TP-LINK EAP610-OUTDOOR Ax1800 Indoor Outdoor Access Point Omada

Image 1
Image 2
Image 3
Image 4
Image 5
Hurry! 2 items left!
$236

Collect 236 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by Radio Parts
Secure ways to pay at checkout
Overview

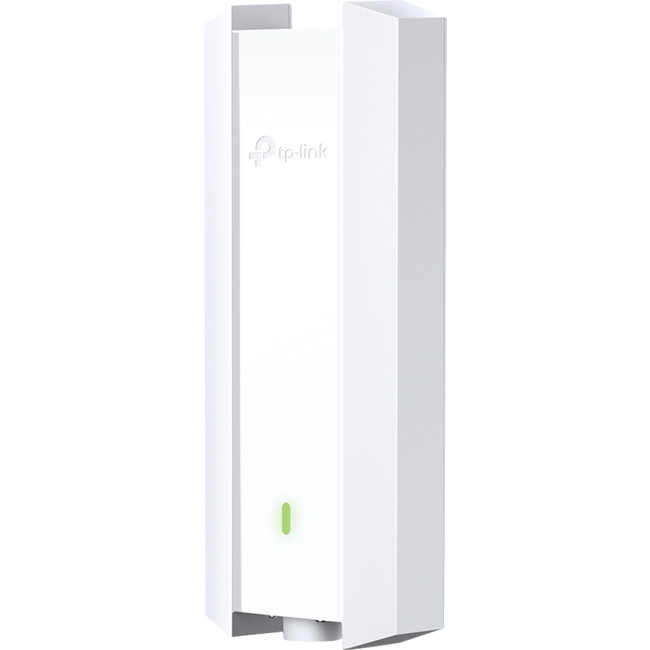

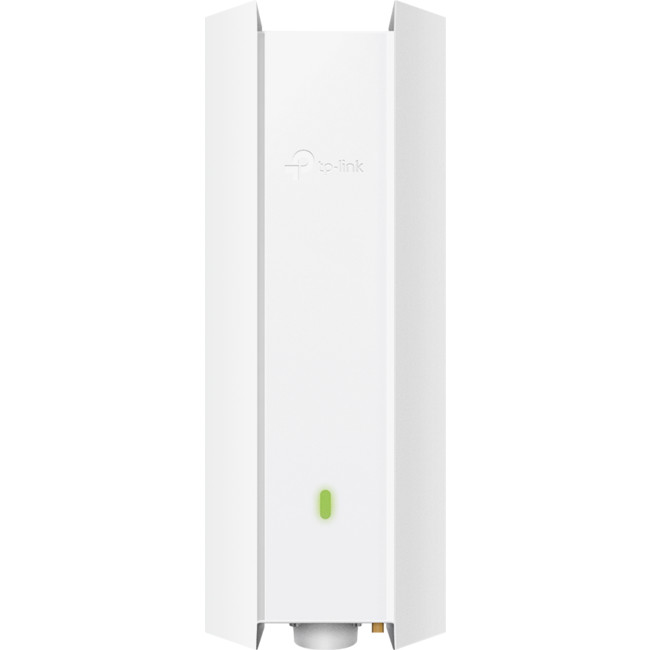

TP-Link EAP610-Outdoor Omada AX1800 Indoor/Outdoor WiFi 6 Access Point, 1.8 Gbps, Long Range Coverage, IP67 Weatherproof, OFDMA, MU-MIMO
  • Superior WiFi 6 Speeds: Delivers dual-band speeds of up to 1.8 Gbps powered by the latest WiFi 6 technology*¹
  • Higher Network Efficiency: Enjoy faster speeds on more devices with less lag via OFDMA and MU-MIMO

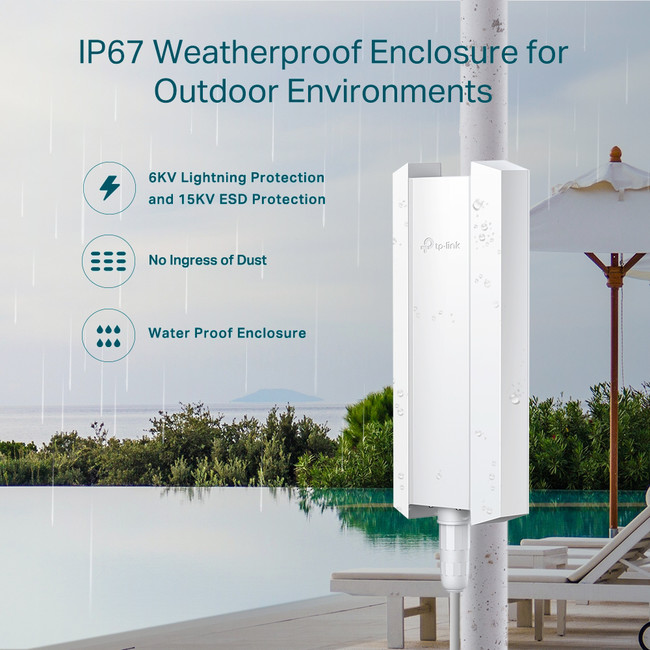

  • Long-Range Coverage: Dedicated high-power amplifier and professional antennas with IP67 weatherproof enclosure

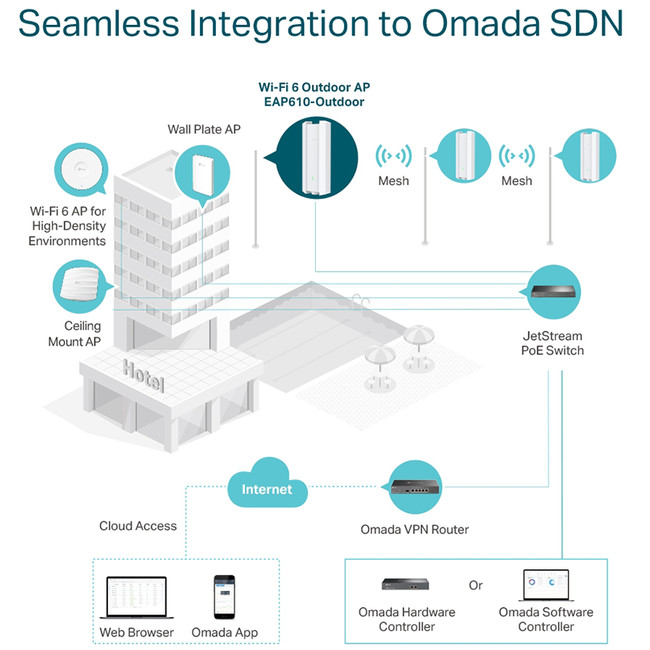

  • Omada Mesh Technology: Enables wireless connectivity between access points for extended range and flexible deployment*²
  • Stay Smooth with Fast Roaming: Users can enjoy seamless streaming across the property with their devices switching effortlessly between access points*²
  • Centralised Cloud Management: Integrates into Omada SDN for cloud access and remote management

1: Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.

2: Zero-Touch Provisioning requires the use of Omada Cloud-Based Controller.

Specifications
Specifications

HARDWARE FEATURES
Interface 1× Gigabit Ethernet (RJ-45) Port (Support 802.3at PoE and Passive PoE)
Button Reset
Power Supply
  • 802.3at PoE
  • 48V/0.5A Passive PoE (PoE Adapter Included)
Power Consumption
  • EU: 12.5W (802.3at PoE or Passive PoE)
  • US: 14.7W (802.3at PoE or Passive PoE)
Dimensions (W×D×H) 280.4mm × 106.5mm × 56.8mm (without antenna & mounting kit)
Antenna
  • 2.4 GHz: 2 × 4 dBi
  • 5 GHz: 2 × 5 dBi
Weatherproof Enclosure IP67

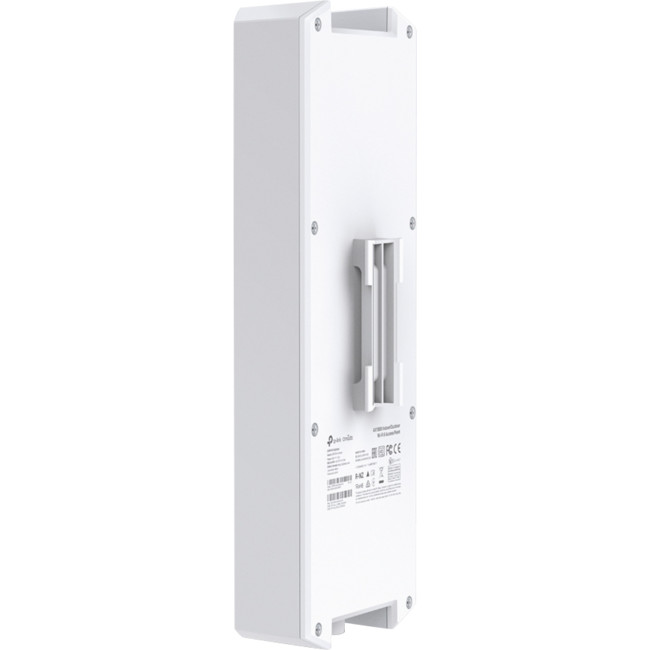

Mounting Pole/Wall Mounting (Kits included)
WIRELESS FEATURES
Wireless Client Capacity 250+
Concurrent Clients 250+
Wireless Standards IEEE 802.11ax/ac/n/g/b/a
Frequency 2.4 GHz, 5 GHz
Signal Rate
  • 802.11ax: 8 Mbps to 1201 Mbps (MCS0-MCS11, NSS = 1 to 2 HE20/40/80)
  • 802.11ac: 6.5 Mbps to 867 Mbps (MCS0-MCS9, NSS = 1 to 2 VHT20/40/80)
  • 802.11n: 6.5 Mbps to 300 Mbps (MCS0-MCS15, VHT 20/40)
  • 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
  • 802.11b: 1, 2, 5.5, 11 Mbps
  • 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
Transmit Power
  • CE: 20 dBm (2.4 GHz, EIRP), <30 dBm(5 GHz, EIRP)
  • FCC: <25 dBm (2.4 GHz), <25 dBm(5 GHz)
Wireless Functions
  • 1024-QAM
  • 4 × Longer OFDM Symbol
  • OFDMA
  • Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
  • Enable/Disable Wireless Radio
  • Automatic Channel Assignment
  • Transmit Power Control (Adjust Transmit Power on dBm)
  • QoS (WMM)
  • MU-MIMO
  • Omada Mesh*²
  • Seamless Roaming*²
  • Band Steering
  • Load Balance
  • Airtime Fairness
  • Beamforming
  • Rate Limit
  • Reboot Schedule
  • Wireless Schedule
  • Wireless Statistics based on SSID/AP/Client
Wireless Security
  • Captive Portal Authentication*²
  • Access Control
  • Wireless Mac Address Filtering
  • Wireless Isolation Between Clients
  • SSID to VLAN Mapping
  • Rogue AP Detection
  • 802.1X Support
  • WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
MANAGEMENT
Omada App Yes
Centralised Management
  • Omada Cloud-Based Controller (Supported by EAP610-Outdoor v1.20 and above, while not supported by EAP610-Outdoor v1.0)
  • Omada Hardware Controller (OC300)
  • Omada Hardware Controller (OC200)
  • Omada Software Controller
Cloud Access Yes, through
  • Omada Cloud-Based Controller (Supported by EAP610-Outdoor v1.20 and above, while not supported by EAP610-Outdoor v1.0)
  • OC300
  • OC200
  • Omada Software Controller
Email Alerts Yes
Management MAC Access Control Yes
SNMP v1, v2c
System Logging Local/Remote Syslog Yes
SSH Yes
Web-based Management Yes
L3 Management Yes
Multi-site Management Yes
Management VLAN Yes
Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller (Supported by EAP610-Outdoor v1.20 and above, while not supported by EAP610-Outdoor v1.0).
OTHERS
Certification CE, FCC, RoHS
Package Contents
  • Access Point EAP610-Outdoor
  • Passive PoE Adapter
  • Power Cord
  • Mounting Kits
  • Waterproof Kits
  • Installation Guide
System Requirements Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
Environment
  • Operating Temperature: −30°C to 70°C (−22°F to 158°F)
  • Storage Temperature: −40°C to 70°C (−40°F to 158°F)
  • Operating Humidity: 10% to 90% RH non-condensing
  • Storage Humidity: 5% to 90% RH non-condensing

1: Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.

2: Zero-Touch Provisioning requires the use of Omada Cloud-Based Controller.


Weight: 0.785
