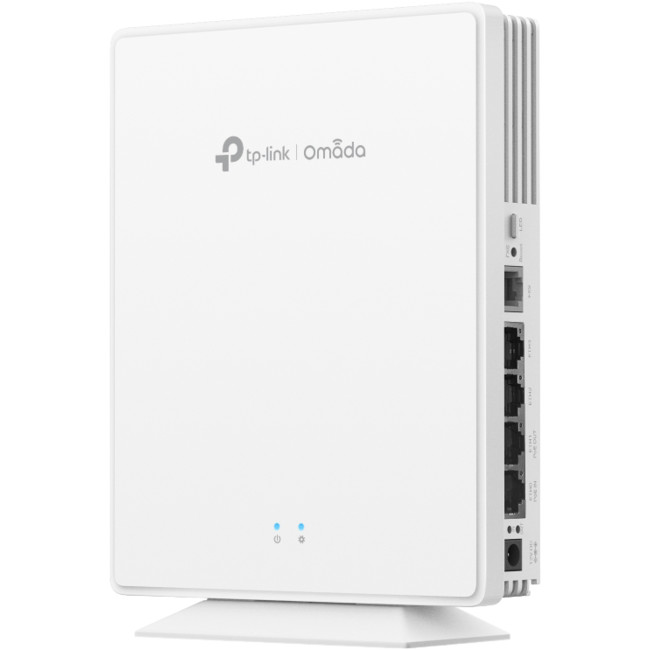

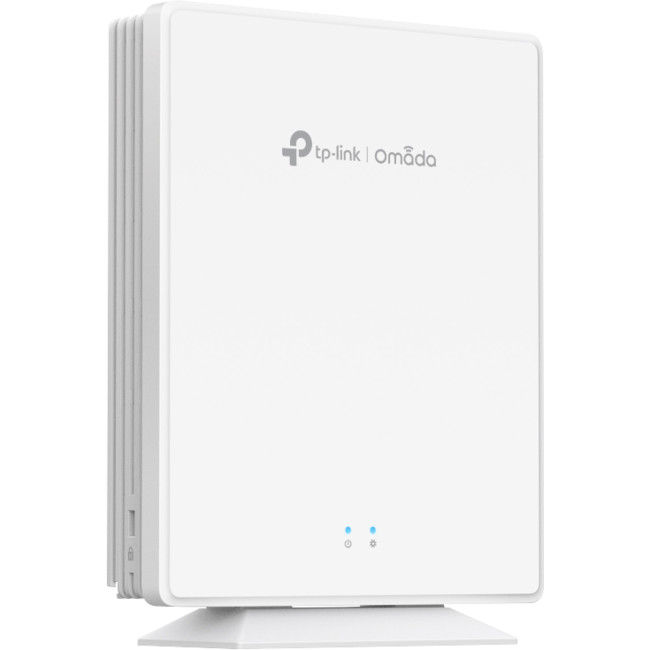

TP-LINK EAP650-DESKTOP Ax3000 Desktop WiFi 6 Access Point Omada

Name: TP-LINK EAP650-DESKTOP Ax3000 Desktop WiFi 6 Access Point Omada
Brand: TP-Link
SKU: 09051881
Price: 196 AUD
Availability: InStock

TP-LINK EAP650-DESKTOP Ax3000 Desktop WiFi 6 Access Point Omada

Hurry! 6 items left!

$196

Collect 196 Everyday Rewards points

Log in to MyDeal to link your card

Is this location right? Update for more accurate shipping cost.

Free Shipping to SYDNEY 2000

Dispatch in 24-48 hours

Sold & shipped by Radio Parts

Secure ways to pay at checkout

Pay in 4 interest-free payments of $49.00 with PayPal

Overview

Omada EAP650-DESKTOP AX3000 Desktop Wi-Fi 6 Access Point

Blazing-Fast AX3000 Wi-Fi 6 Speeds: 574 Mbps on 2.4 GHz and 2402 Mbps on 5GHz totals 2976 Mbps Wi-Fi speeds*¹.
Multiple Gigabit Ports: Connect multiple devices with 4 × Gigabit Ethernet Ports.
Convenient Deployment: Supports both 802.3bt PoE++ and DC (adapter included) for easy and quick deployment.
No Installation Needed: Supports desktop installation without the need for additional setup.
High Flexibility: Provide flexible installation solutions for both desktop and wall mounting.
Stay Smooth with Seamless Roaming: Users can enjoy seamless streaming across the property with their devices switching effortlessly between access points*³.
Centralised Cloud Management: Integrates with the Omada SDN platform for Centralised Management.

1: Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection, quality, and client condition.

2: Use of Wi-Fi 6 (802.11ax) and its features like MU-MIMO, requires clients to support the corresponding features.

3: Seamless Roaming, and Captive Portal require the use of Omada SDN controllers.

Specifications

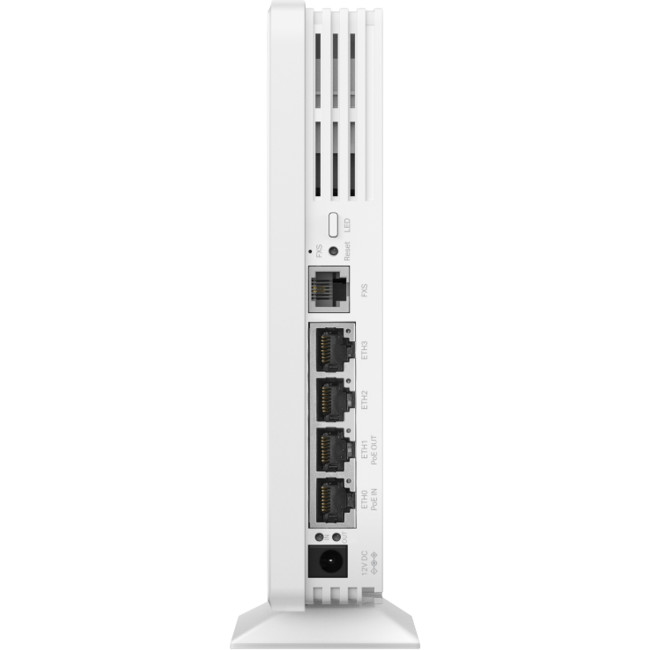

HARDWARE FEATURES	Interface	4 × 1Gbps Ethernet Ports (One Ethernet port supports PoE Out: 802.3at/af output at 802.3bt input, 802.3af class 2 output at 802.3at input) 1 × FXS Port
Button	Reset LED
Power Supply	802.3 af/at/bt PoE or 12V/1.5A DC *PoE Out requires 802.3at/bt PoE power supply
Max. Power Consumption	17.3W (PoE Out Off)
Weight	452g (excluding mounting base)
Dimensions (W×D×H)	175mm × 140mm × 33mm (6.9″ × 5.5″ × 1.3″)
Antenna	Internal Omni 2.4 GHz: 2 × 5 dBi 5 GHz: 3 × 4.7 dBi
Range	140m (1500ft²)*⁵

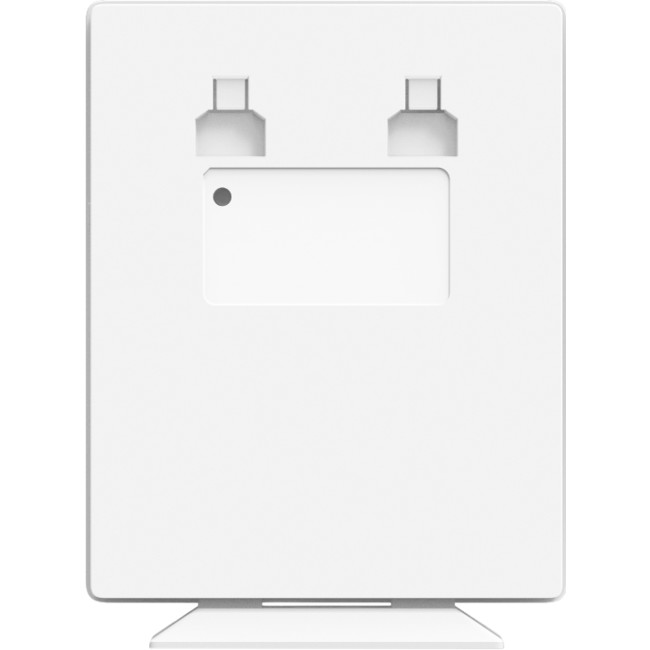

Mounting	Desktop / Wall Mounting (Kits included)
WIRELESS FEATURES	Concurrent Clients	250+*⁵
Wireless Standards	IEEE 802.11 a/b/g/n/ac/ax
Frequency	2.4 GHz and 5 GHz
Signal Rate	5 GHz: 2402 Mbps*¹ 2.4 GHz: 574 Mbps
Wireless Functions	2 × 2 (2.4G & 5G) MU-MIMO² HE160 (160 MHz Bandwidth)² OFDMA² Seamless Roaming³ Multiple SSIDs (16 SSIDs, 8 on each band) Enable/Disable SSID Broadcast Enable/Disable Wireless Radio Guest Network Automatic Channel Assignment Beamforming Rate Limit (Based on SSID/Client) Band Steering Load Balance Airtime Fairness Transmit Power Control (Adjust Transmit Power on dBm) QoS (WMM) RADIUS Accounting MAC Authentication Reboot Schedule Wireless Schedule and Statistics Static IP/Dynamic IP
Wireless Security	Captive Portal Authentication*³ Access Control Wireless Mac Address Filtering Wireless Isolation Between Clients VLAN Rogue AP Detection 802.1X Support WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power	CE: <20 dBm (2.4 GHz, EIRP) <23 dBm (5 GHz, band1 & band2, EIRP) <29 dBm (5 GHz, band3, EIRP) FCC: <26 dBm (2.4 GHz) <27 dBm (5 GHz)
MANAGEMENT FEATURES	Omada App	Yes
Centralised Management	Omada Hardware Controller Omada Software Controller Omada Cloud-Based Controller
Cloud Access	Yes
Email Alerts	Yes
LED ON/OFF Control	Yes
Management MAC Access Control	Yes
SNMP	v1, v2c, v3
System Logging Local/Remote Syslog	System Log
SSH	Yes
Web-based Management	Yes
Zero-Touch Provisioning	Yes. Reaquire the use of Omada Cloud-Based controller
ENVIRONMENT	Operating Temperature	0°C~40°C (32°F~104°F)
Storage Temperature	−40°C~70°C (−40°F~158°F)
Operating Humidity	10~90% RH, non-condensing
Storage Humidity	5~90% RH, non-condensing
OTHERS	Certification	CE, FCC, RoHS, IC
Package Contents	EAP650-Desktop Desktop/Wall Mounting Kit Installation Guide
System Requirements	Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux

1: Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection, quality, and client condition.

2: Use of Wi-Fi 6 (802.11ax) and its features like MU-MIMO, requires clients to support the corresponding features.

3: Seamless Roaming, and Captive Portal require the use of Omada SDN controllers.

4: This feature needs to be used with the switch that supports VPN Server. And at the same time, the Omada controller needs to be used with the switch that supports the Cli Template.

5: Coverage is calculated based on laboratory testing. Actual coverage is not guaranteed and will vary as a result of client limitations and environmental factors.

6: The actual capacity depends on the wireless environment and client traffic and is generally less than the maximum number of client connections.
