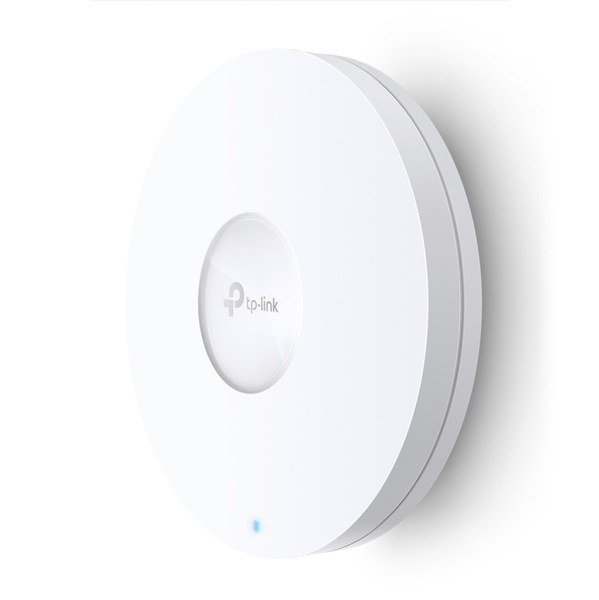

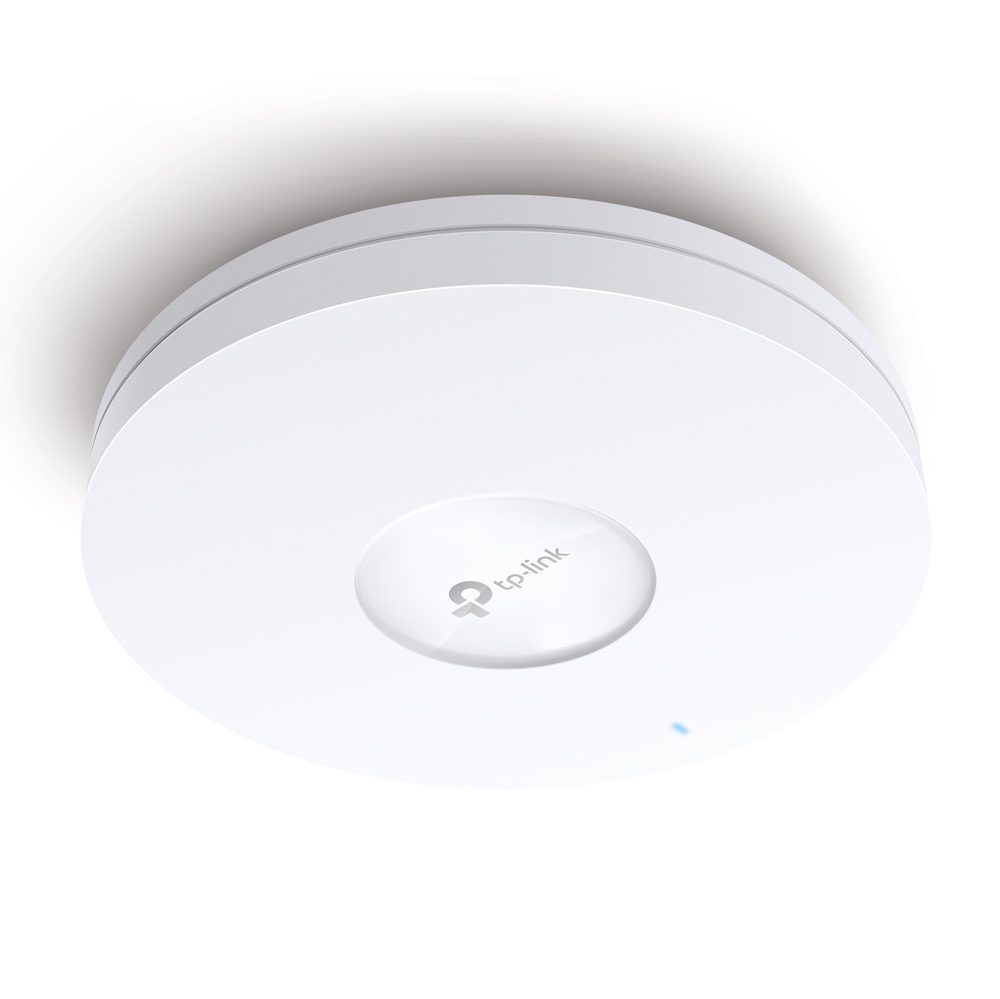

TP-Link EAP660 HD AX3600 Ceiling Mount Access Point EAP660 HD

OFDMA* and Uplink & Downlink MU-MIMO** increase network capacity by up to 4— versus Wi-Fi 5 (802.11ac) in high-density environments to connect more devices simultaneously. Leverage multi-user capabilities and upgrade your business like never before.

HARDWARE FEATURES

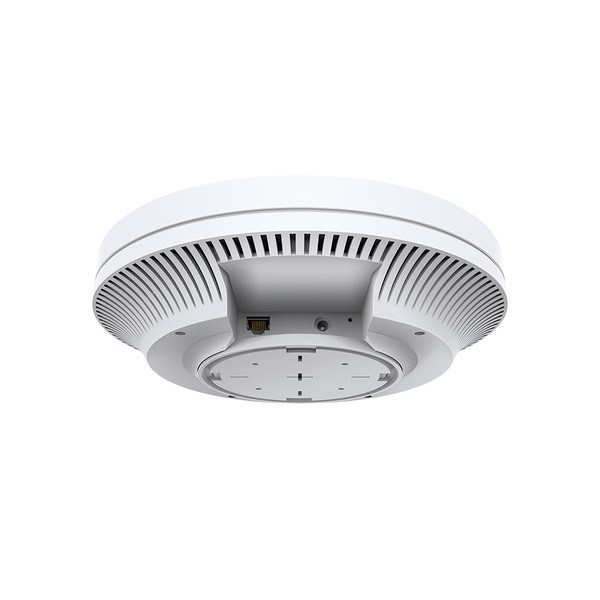

Interface             1— 2.5 Gbps Ethernet Port (supports IEEE802.3at PoE)

Button  Reset

Power Supply    802.3at PoE

• 12 V DC

Power Consumption       EU: 18.5 W

• US: 21.5 W

Dimensions ( W x D x H )               9.6 — 9.6 — 2.5 in (243 — 243 — 64 mm)

Antenna Type    Internal Omni

• 2.4 GHz: 4— 4 dBi
• 5 GHz: 4— 5 dBi

Mounting            Ceiling /Wall Mounting (Kits included)

WIRELESS FEATURES

Wireless Standards          IEEE 802.11ax/ac/n/g/b/a

Frequency          2.4 GHz and 5 GHz

Signal Rate          5 GHz: Up to 2402 Mbps

• 2.4 GHz: Up to 1148 Mbps

Wireless Functions          1024-QAM

• 4— Longer OFDM Symbol
• OFDMA
• Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control (Adjust Transmit Power on dBm)
• QoS(WMM)
• MU-MIMO
• Seamless Roaming
• Band Steering
• Load Balance
• Airtime Fairness
• Beamforming
• Rate Limit
• Reboot Schedule
• Wireless Schedule
• Wireless Statistics based on SSID/AP/Client

Wireless Security              Captive Portal Authentication

• Access Control
• Wireless Mac Address Filtering
• Wireless Isolation Between Clients
• SSID to VLAN Mapping
• Rogue AP Detection
• 802.1X Support
• WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

Transmission Power       CE:

<20 dBm(2.4 GHz, EIRP)

<23 dBm(5 GHz, EIRP)

• FCC:

<26 dBm (2.4 GHz)

<26 dBm (5 GHz)

MANAGEMENT

Omada App        Yes

Centralized Management             Omada Cloud-Based Controller

• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller

Cloud Access      Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)

Email Alerts        Yes

LED ON/OFF Control       Yes

Management MAC Access Control            Yes

SNMP   v1, v2c, v3

System Logging Local/Remote Syslog      Local/Remote Syslog

SSH        Yes

Web-based Management            HTTP/HTTPS

L3 Management               Yes

Multi-site Management Yes

Management VLAN        Yes

OTHERS

Certification       CE, FCC, RoHS

Package Contents            EAP660 HD

• Power Adapter
• Ceiling/Wall Mounting Kits
• Installation Guide

System Requirements   Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Linux

Environment      Operating Temperature: 040 ? (32104 ?)

• Storage Temperature: -4070 ? (-40158 ?)
• Operating Humidity: 1090% RH non-condensing
• Storage Humidity: 590% RH non-condensing
