1: Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection, quality, and client condition.
2: Use of Wi-Fi 6 (802.11ax) and its features, including OFDMA, HE160, and 1024-QAM, require clients to support the corresponding features. The 160 MHz bandwidth is only available on the 5 GHz band. It may be unavailable in some regions/countries due to regulatory restrictions. The double channel width refers to 160 MHz compared to 80 MHz for general WiFi 6 APs.
3: Omada Mesh, Seamless Roaming, and Captive Portal require the use of an Omada SDN controller. Go to to find all the models supported by Omada mesh technology to find all the models supported by Omada mesh technology, and refer to the User Guides of Omada SDN controllers for configuration methods.
4: Zero-Touch Provisioning and Auto Channel Selection and Power Adjustment require the use of Omada Cloud-Based Controller. Go to to confirm which models are compatible with Omada Cloud-Based Controller.
5: The actual capacity depends on the wireless environment and client traffic and is generally less than the maximum number of client connections.

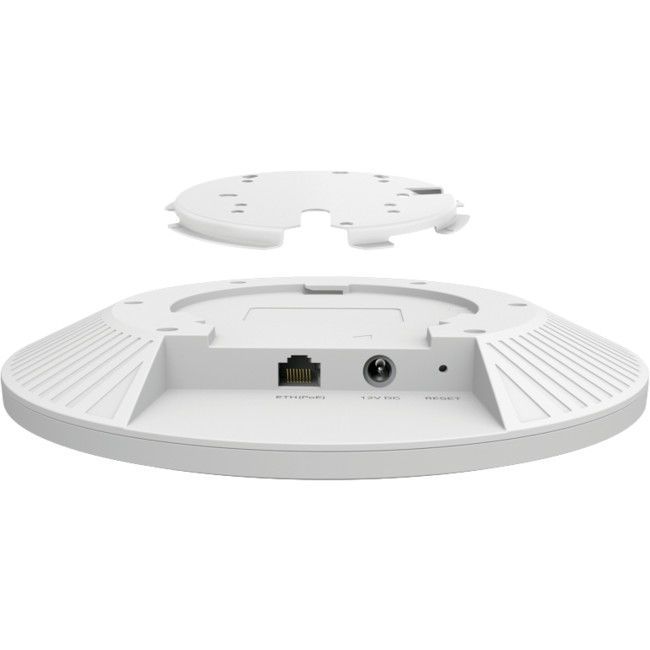

| HARDWARE FEATURES | Interface | 1 × 2.5 Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE) |
|---|
| Button | Reset |
| Power Supply | - 802.3at PoE
- 12V / 2A DC (Power adapter not included)
|
| Max. Power Consumption | |

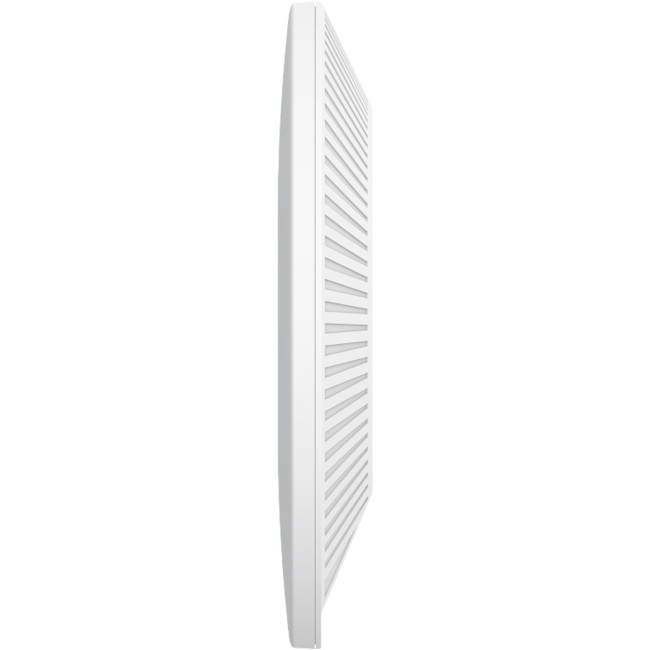

| Dimensions (W×D×H) | 220mm × 220mm × 32.5mm (8.7″ × 8.7″ × 1.3″) |
| Antenna | - Internal Omni
- 2.4 GHz: 2 × 4 dBi
- 5 GHz: 4 × 5 dBi
|
| Bluetooth | Yes |
| Mounting | Ceiling / Wall Mounting (Kits included) |
| WIRELESS FEATURES | Coverage | 140m (1500ft²)⁵ |
|---|
| Concurrent Clients | 250+⁵ |
| Wireless Standards | IEEE 802.11ax/ac/n/g/b/a |
| Frequency | 2.4 GHz and 5 GHz |
| Signal Rate | - 5 GHz: Up to 4804 Mbps
- 2.4 GHz: Up to 574 Mbps
|
| Wireless Functions | - 1024-QAM
- 4 × Longer OFDM Symbol
- OFDMA
- Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
- Enable/Disable Wireless Radio
- Automatic Channel Assignment
- Transmit Power Control (Adjust Transmit Power on dBm)
- QoS (WMM)
- MU-MIMO
- HE160 (160 MHz Bandwidth)²
- Seamless Roaming³
- Omada Mesh³
- Band Steering
- Load Balance
- Airtime Fairness
- Beamforming
- Rate Limit
- Reboot Schedule
- Wireless Schedule
- Wireless Statistics based on SSID/AP/Client
|
| Wireless Security | - Captive Portal Authentication³
- Access Control
- Wireless Mac Address Filtering
- Wireless Isolation Between Clients
- SSID to VLAN Mapping
- Rogue AP Detection
- 802.1X Support
- WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
|
| Transmission Power | CE:- <20 dBm (2.4 GHz, EIRP)
- <23 dBm (5 GHz, band1 & band2, EIRP)
- <30 dBm (5 GHz, band3, EIRP)
FCC:- <25 dBm (2.4 GHz)
- <28 dBm (5 GHz)
|
| MANAGEMENT FEATURES | Omada App | Yes |
|---|
| Centralised Management | - Omada Hardware Controller (OC300)
- Omada Hardware Controller (OC200)
- Omada Software Controller
- Omada Cloud-Based Controller
|
| Cloud Access | Yes. Requires the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller. |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| System Logging Local/Remote Syslog | Local/Remote Syslog |
| SSH | Yes |
| Web-based Management | HTTP/HTTPS |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| Zero-Touch Provisioning | Yes. Require the use of Omada Cloud-Based Controller. |
| OTHERS | Certification | CE, FCC, RoHS |
|---|
| Package Content | - EAP673
- Ceiling/Wall Mounting Kits
- Installation Guide
|
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows 10, Windows 11, Linux |
| ENVIRONMENT | Operating Temperature | 0°C~40°C (32°F~104°F) |
|---|
| Storage Temperature | −40°C~70°C (−40°F~158°F) |
| Operating Humidity | 10~90% RH, non-condensing |
| Storage Humidity | 5~90% RH, non-condensing |
