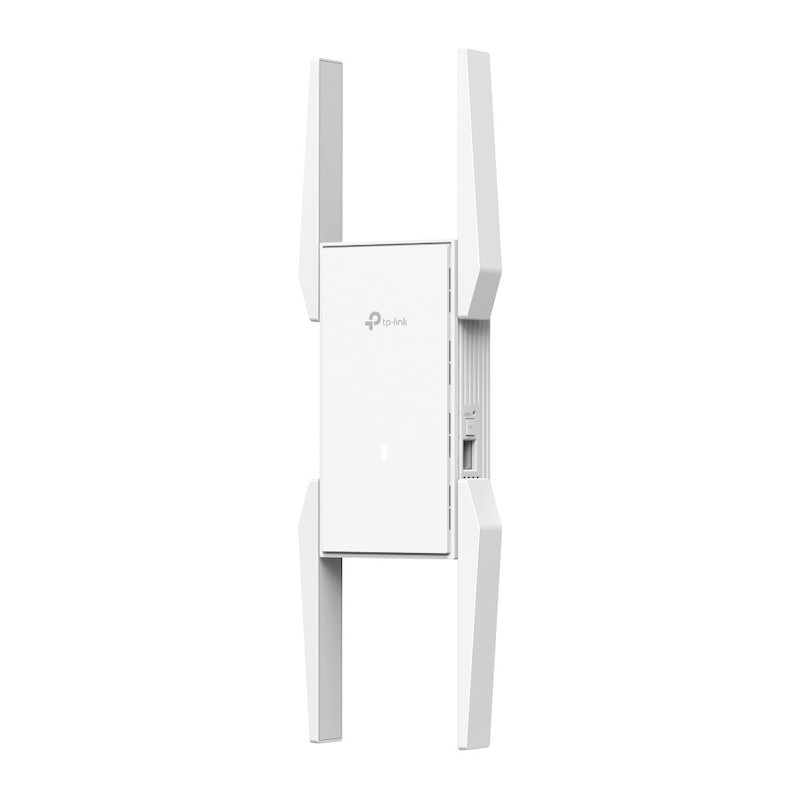

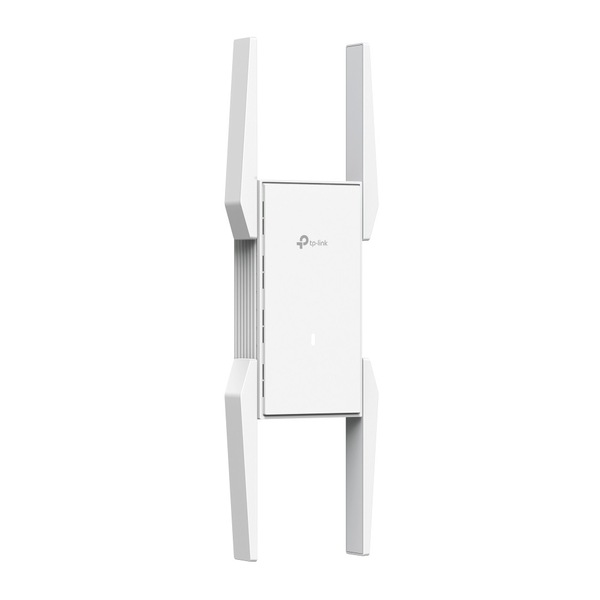

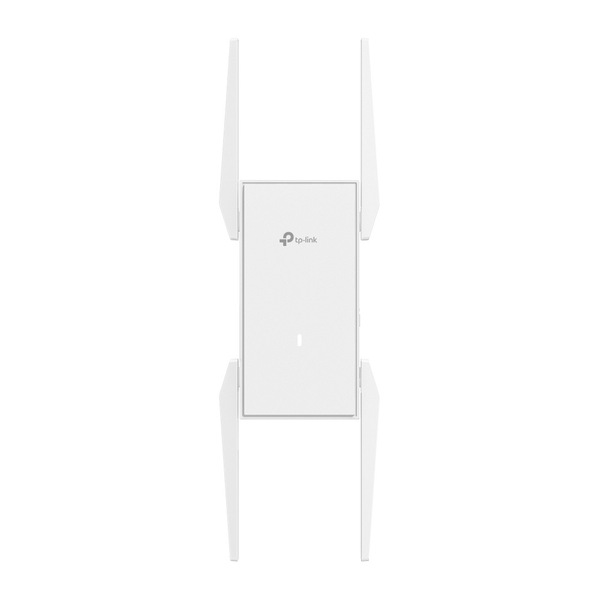

TP-Link EAP673 AX5400 Mesh Wi-Fi 6 Extender

TP-Link EAP673 AX5400 Mesh Wi-Fi 6 Extender

Hurry! 3 items left!
Price
$175
Collect 175 Everyday Rewards points
Log in to MyDeal to link your card
Shipping
$12.00 Australia-wide (per item)

Quantity
Maximum item limit (3) has been reached.


AX5400 Mesh Wi-Fi 6 Extender

  • AX5400 Dual-Band WiFi 6: Up to 5.4 Gbps wireless speeds .†
  • WiFi Dead-Zone Killer: Four high-gain external antennas extend WiFi signals to every dead zone.
  • AP Mode: Simply plug in an Ethernet cable to create a new WiFi AP.
  • Seamless Mesh Networking: Supports Omada Mesh and Roaming for reliable networking, ideal for large-scale scenarios.§
  • Easy & Quick Installation: Standard AC power supply for flexible deployment.
  • Quick adoption: Conveninet operation via Omada web or app once the extender powers on.
  • Centralized Cloud Management: Integrates into Omada SDN for cloud access and remote management.

HARDWARE FEATURES

  • Interface: 1× Gigabit Ethernet Port
  • Physical Security Lock: No
  • Button: Reset, LED
  • Power Supply: 100-240 V ~ 50/60 Hz
  • Max. Power Consumption: 18 W
  • Dimensions (W x D x H): 6.3 × 3.1 × 1.5 in (160 × 80 × 37.8 mm)
  • Antenna: 4× External Antennas
    • 2.4 GHz: 2× 3 dBi
    • 5 GHz: 4× 5 dBi
  • Mounting: Plug in

WIRELESS FEATURES

  • Coverage: 140 ㎡ (1500 ft²)***
  • Concurrent Clients: 250+**
  • Wireless Standards: IEEE 802.11ax/ac/n/g/b/a
  • Frequency: 2.4 GHz and 5 GHz
  • Signal Rate:
    • 5 GHz: Up to 4804 Mbps
    • 2.4 GHz: Up to 574 Mbps
  • Wireless Functions:
    • 16 SSIDs (Up to 8 SSIDs on each band)
    • Enable/Disable Wireless Radio
    • Automatic Channel Assignment
    • Transmit Power Control (Adjust Transmit Power on dBm)
    • QoS (WMM)
    • Seamless Roaming§
    • Beamforming
    • Rate Limit
    • Load Balance
    • Airtime Fairness
    • Band Steering
    • Reboot Schedule
    • Wireless Schedule
    • RADIUS Accounting
    • MAC Authentication
    • Wireless Statistics
    • Static IP/Dynamic IP
  • Wireless Security:
    • Captive Portal Authentication§
    • Access Control
    • Wireless MAC Address Filtering
    • Wireless Isolation Between Clients
    • VLAN
    • Rogue AP Detection
    • 802.1X Support
    • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
  • Transmission Power:
    • CE:
      • <20 dBm (2.4 GHz, EIRP)
      • <23 dBm (5 GHz, band1 & band2, EIRP)
      • <30 dBm (5 GHz, band3, EIRP)
    • FCC:
      • <25 dBm (2.4 GHz)
      • <28 dBm (5 GHz)

MANAGEMENT FEATURES

  • Omada App: Yes
  • Centralized Management:
    • Omada Hardware Controller
    • Omada Software Controller
    • Omada Cloud-Based Controller
  • Cloud Access: Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
  • Email Alerts: Yes
  • LED ON/OFF Control: Yes
  • Management MAC Access Control: Yes
  • SNMP: v1, v2c, v3
  • System Logging Local/Remote Syslog: Yes
  • SSH: Yes
  • Web-based Management: Yes
  • Management VLAN: Yes
  • Zero-Touch Provisioning: Yes. Requiring the use of Omada Cloud-Based Controller.

OTHERS

  • Certification: CE, FCC, IC, RoHS, UL
  • Package Content:
    • AX5400 Mesh WiFi 6 Extender EAP673-Extender
    • Installation Guide
  • Environment:
    • Operating Temperature: 0–40 ℃ (32–104 ℉)
    • Storage Temperature: -40–70 ℃ (-40–158 ℉)
    • Operating Humidity: 10–90% RH non-condensing
    • Storage Humidity: 5–90% RH non-condensing
MPN: EAP673-Extender
