1: Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput, wireless coverage, and connected devices are not guaranteed and will vary as a result of network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.
2: 2.5 Gbps internet speeds require compatible service plans and equipment. Actual network speed may be limited by the rate of the product's Ethernet WAN or LAN port, the rate supported by the network cable, Internet service provider factors and other environmental conditions.
HARDWARE FEATURES | Interface | 1 × 2.5G Ethernet Port |
---|---|---|
Button | Reset | |
Power Supply | 802.3at PoE or 12V/1.5A DC (Power Adapter Is Not Included) | |
Max. Power Consumption |
| |
Dimensions (W×D×H) | 160mm × 160mm × 36.7mm (6.3″ × 6.3″ × 1.4″) | |
Antenna |
| |

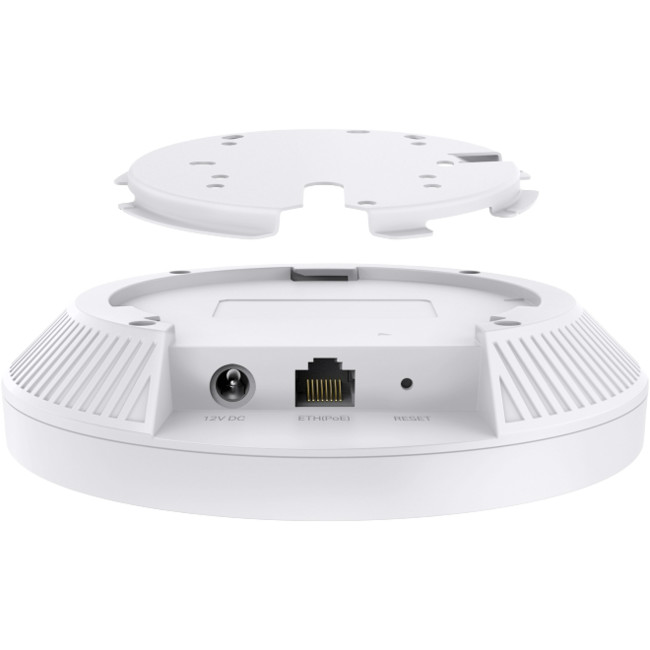

Mounting | Ceiling / Wall Mounting (Kits Included) | |
WIRELESS FEATURES | Coverage | 140m (1500ft²)*⁵ |
Concurrent Clients | 250+*⁴ | |
Wireless Standards | IEEE 802.11 a/b/g/n/ac/ax/be | |
Frequency | 2.4GHz and 5GHz | |
Signal Rate |
| |
Wireless Functions |
| |
Wireless Security |
| |
Transmission Power |
| |
MANAGEMENT FEATURES | Omada App | Yes |
Centralised Management |
| |
Cloud Access | Yes. Requires the use of an OC300, OC200, Omada Software Controller, or an Omada Cloud-Based Controller. | |
Email Alerts | Yes | |
LED ON/OFF Control | Yes | |
Management MAC Access Control | Yes | |
SNMP | v1, v2c, v3 | |
System Logging Local/Remote Syslog | Yes | |
Web-based Management | Yes | |
ENVIRONMENT | Operating Temperature | 0°C~40°C (32°F~104°F) |
Storage Temperature | −40°C~70°C (−40°F~158°F) | |
Operating Humidity | 10%~90% non-condensing | |
Storage Humidity | 5%~90% non-condensing | |
OTHERS | Certification | CE, FCC, RoHS, IC |
Package Contents |
|
1: Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput, wireless coverage, and connected devices are not guaranteed and will vary as a result of network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.
2: 2.5 Gbps internet speeds require compatible service plans and equipment. Actual network speed may be limited by the rate of the product's Ethernet WAN or LAN port, the rate supported by the network cable, Internet service provider factors and other environmental conditions.
3: TP-Link EasyMesh-compatible products can network with other devices that use EasyMesh. Failed connections may be due to firmware conflicts of different vendors. The EasyMesh-compatible function is still being developed on some models and will be supported in subsequent software updates.
4: HomeShield includes the Free Basic Plan. Fees apply for the Pro Plan. Visit for more information.
5: Wi-Fi generations represent the wireless standard IEEE 802.11 a/b/g/n/ac/be. All devices need to support 802.11 Wi-Fi protocols.
