TP-LINK ES205G 5 Port Giga Easy Managed Switch Omada Sdn Cloud Management

Image 1
Image 2
Image 3
Image 4
Image 5
Hurry! 3 items left!
$49

Collect 49 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by Radio Parts
Secure ways to pay at checkout
Overview
TP-Link ES205G Omada 5-Port Gigabit Easy Managed Switch by Omada SDN CLOUD MANAGEMENT

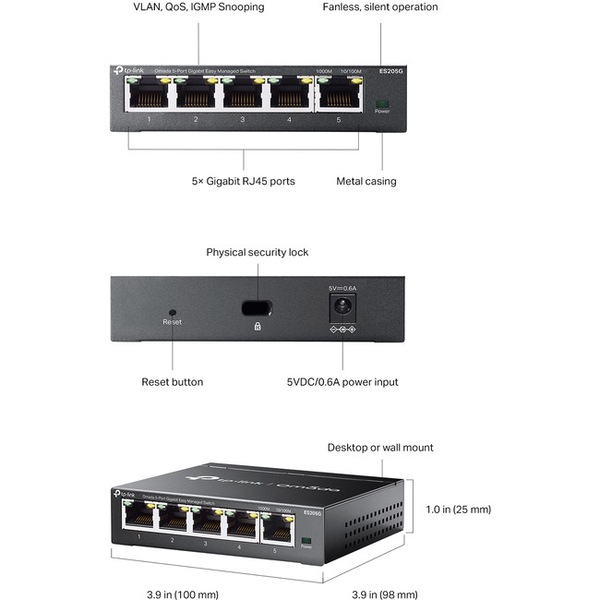

  • 5 × 10/100/1000Mbps RJ45 ports.
  • Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features.
  • Centralised Cloud Management via the web or the Omada app*¹.
  • Automatic Loop Prevention, VLAN, and IGMP Snooping.
  • Fanless design for silent operation.
  • Durable metal casing and desktop/wall mounting design.


1: These functions require the use of the Omada SDN Controller. Zero-Touch Provisioning requires the use of the Omada Cloud-Based Controller. Go to the to find all the models supported by the Omada Cloud-Based Controller.

Specifications
Specifications

HARDWARE FEATURESInterface
  • 5 × 10/100/1000 Mbps RJ45 Ports
  • AUTO Negotiation/AUTO MDI/MDIX
Fan QuantityFanless
Installation
  • Desktop

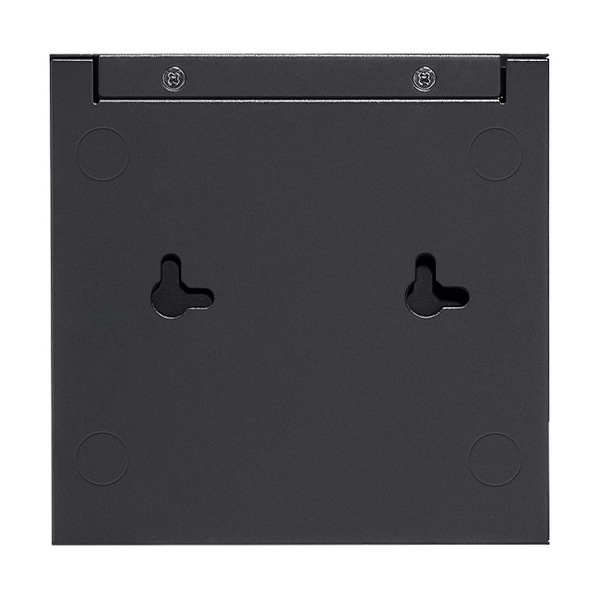

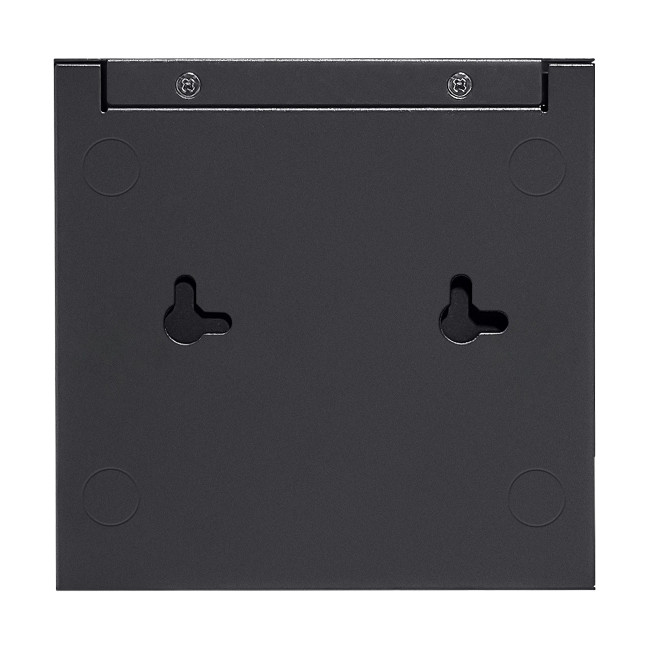

  • Wall Mount

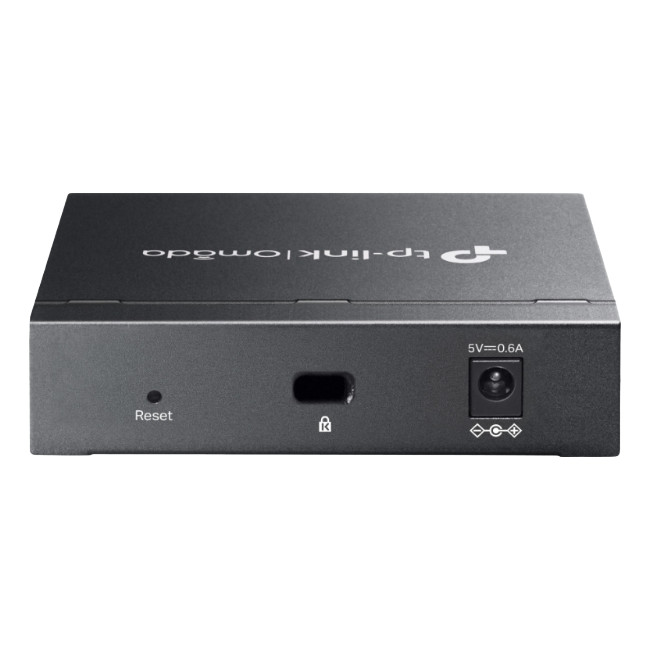

Physical Security LockYes
Power SupplyExternal DC Power Adapter (Output: 5V DC/ 0.6A)
Surge Protection±6kV
PERFORMANCESwitching Capacity10 Gbps
Packet Forwarding Rate7.4 Mpps
MAC Address Table8K
Packet Buffer Memory4Mb
Jumbo Frame15 KB
SOFTWARE FEATURESQuality of Service
  • Port-based/802.1p/DSCP QoS
  • 8 Priority Queues
  • Priority Schedule Mode
    • WRR (Weighted Round Robin)
  • Queue Weight Config
  • Bandwidth Control
    • Port-Based Rating Limit
  • Storm Control
    • Multiple Control Modes (kbps/pps)
    • Broadcast/Multicast/Unknown-Unicast Control
L2 Features
  • Static Link Aggregation
  • Loop Prevention / Loopback Detection
  • Flow Control
    • 802.3x Flow Control
  • Mirroring
    • Port Mirroring
    • One-to-One
    • Many-to-One
    • Ingress/Egress/Both
  • Port Statistics
    • Port Mirror Status
    • Traffic Statistics
  • 802.1ab LLDP
L2 Multicast
  • IGMP Snooping
    • IGMP v1/v2/v3 Snooping
    • Fast Leave
VLAN
  • MTU VLAN
  • Port-Based VLAN
  • 802.1Q Tag VLAN
    • Max. 32 VLAN Groups
    • 4K VID
Transmission MethodStore-And-Forward
MANAGEMENT FEATURESOmada AppYes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralised Management
  • Omada Cloud-Based Controller
  • Omada Hardware Controller
  • Omada Software Controller
Cloud AccessYes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch ProvisioningYes. Requires the use of Omada Cloud-Based Controller.
Management Features
  • Web-based GUI
  • DHCP Client
  • Cable Diagnostics
  • Automatic Device Discovery*¹
  • Batch Configuration*¹
  • Batch Firmware Upgrading*¹
  • Unified Configuration*¹
ENVIRONMENTOperating Temperature0°C~40°C (32°F~104°F)
Storage Temperature−40°C~70°C (−40°F~158°F)
Operating Humidity10%~90% non-condensing
Storage Humidity5%~90% non-condensing
GENERALDimensions (W×D×H)100mm × 98mm × 25mm (3.9″ × 3.9″ × 1.0″)

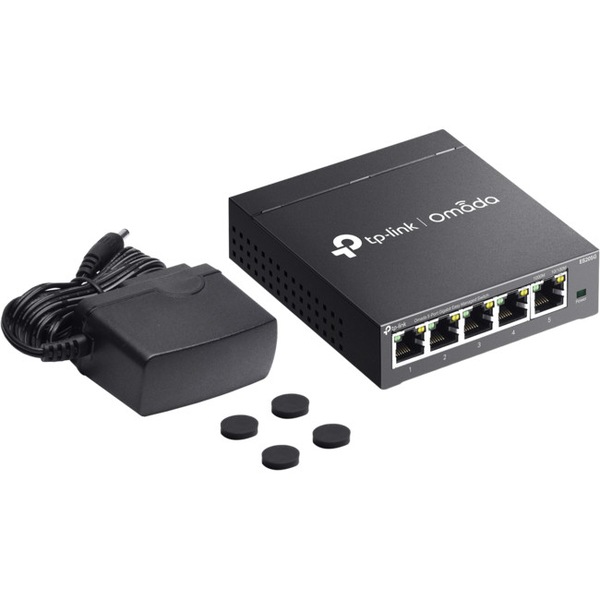

Package Contents
  • ES205G
  • Power Adapter
  • Installation Guide
  • Rubber Feet
CertificationFCC, CE, RoHS



1: These functions require the use of the Omada SDN Controller. Zero-Touch Provisioning requires the use of the Omada Cloud-Based Controller. Go to the to find all the models supported by the Omada Cloud-Based Controller.


Weight: 3.12
