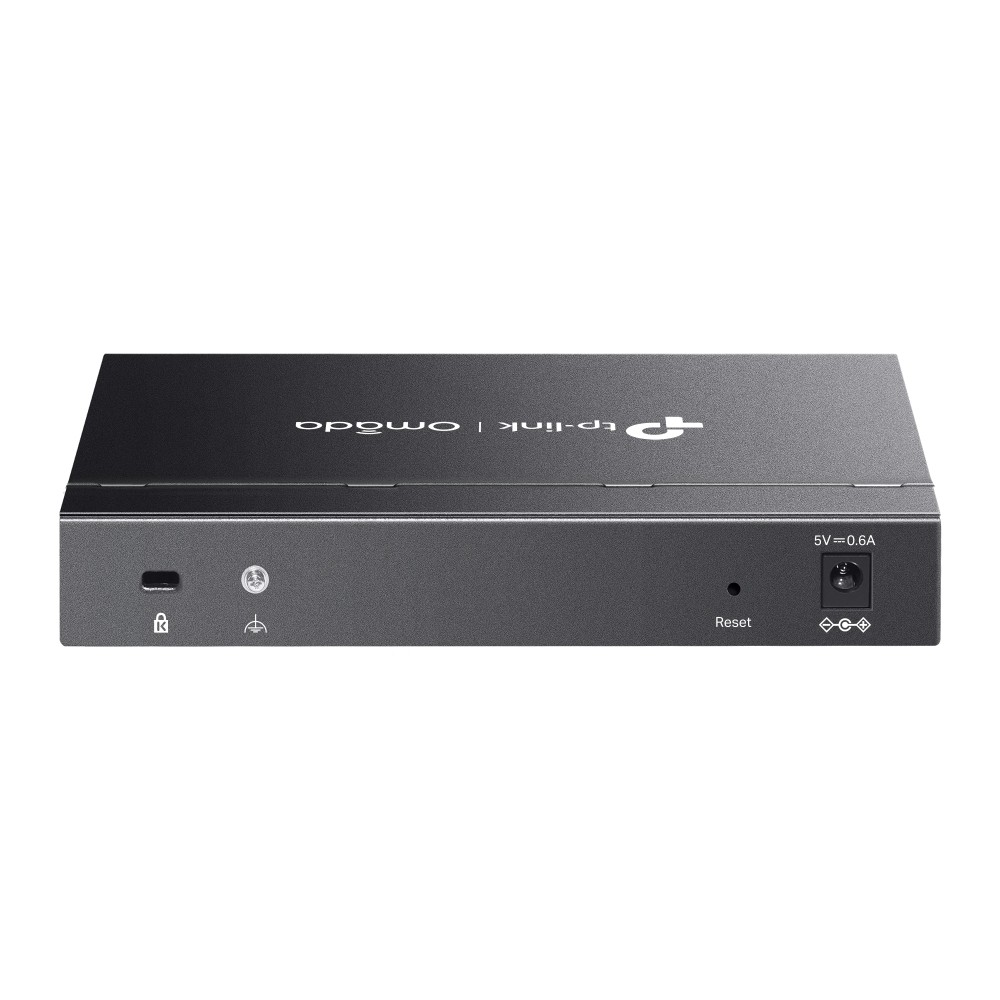

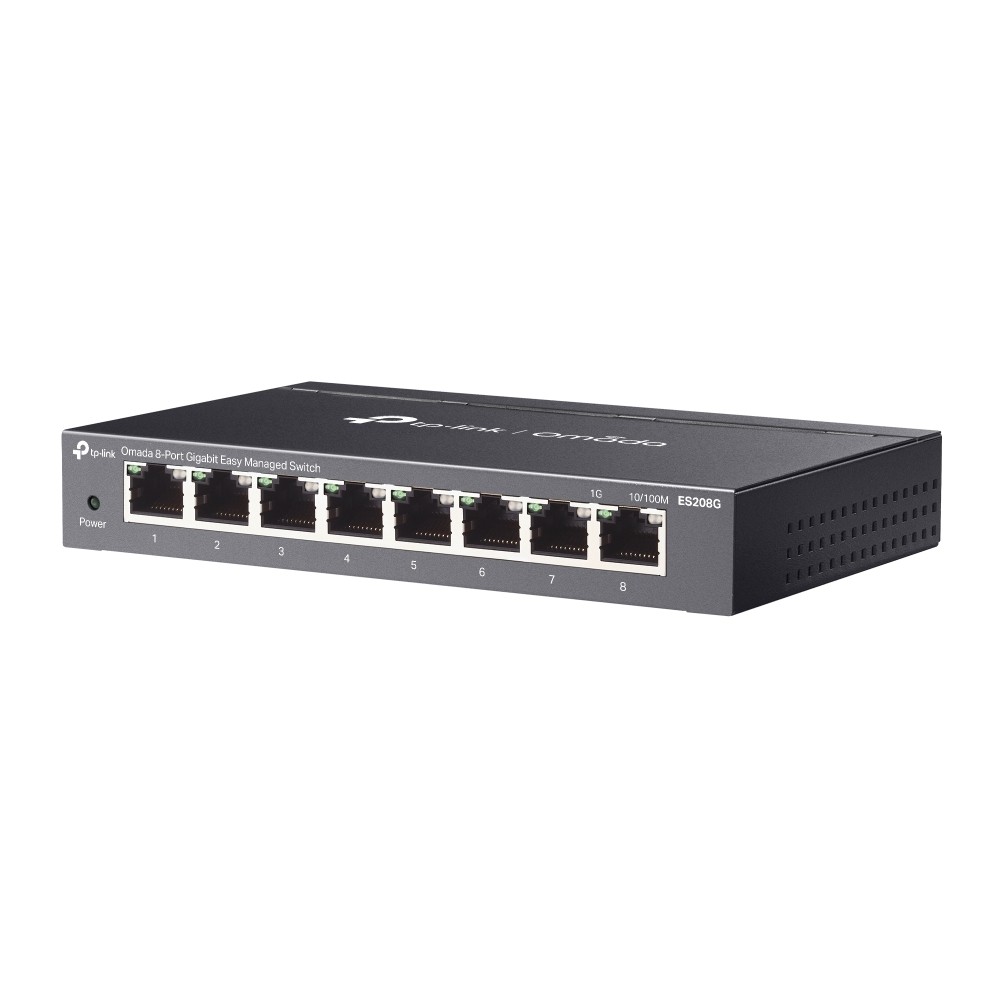

TP-Link ES208G Omada 8-Port Gigabit Managed Switch

Image 1
Image 2
Image 3
Image 4
Hurry! 6 items left!
$56

Collect 56 Everyday Rewards points

Log in to MyDeal to link your card
Free Shipping
Sold & shipped by ARC Online
Secure ways to pay at checkout

TP-Link ES208G Omada 8-Port Gigabit Easy Managed Switch KEY FEATURES

  • 8× Gigabit Ports: 8× 10/100/1000Mbps RJ45 ports for fast, reliable wired connections
  • Easy Plug-and-Play Setup: Supports instant connectivity and simple configuration
  • Cloud Management: Centralised management via the web or Omada app†
  • Advanced Networking: VLAN, Port Isolation, Cable Test△, and QoS△ for reliable surveillance networking
  • Smart Features: IGMP Snooping and Automatic Loop Prevention
  • Silent Operation: Fanless design for noise-free use in any environment

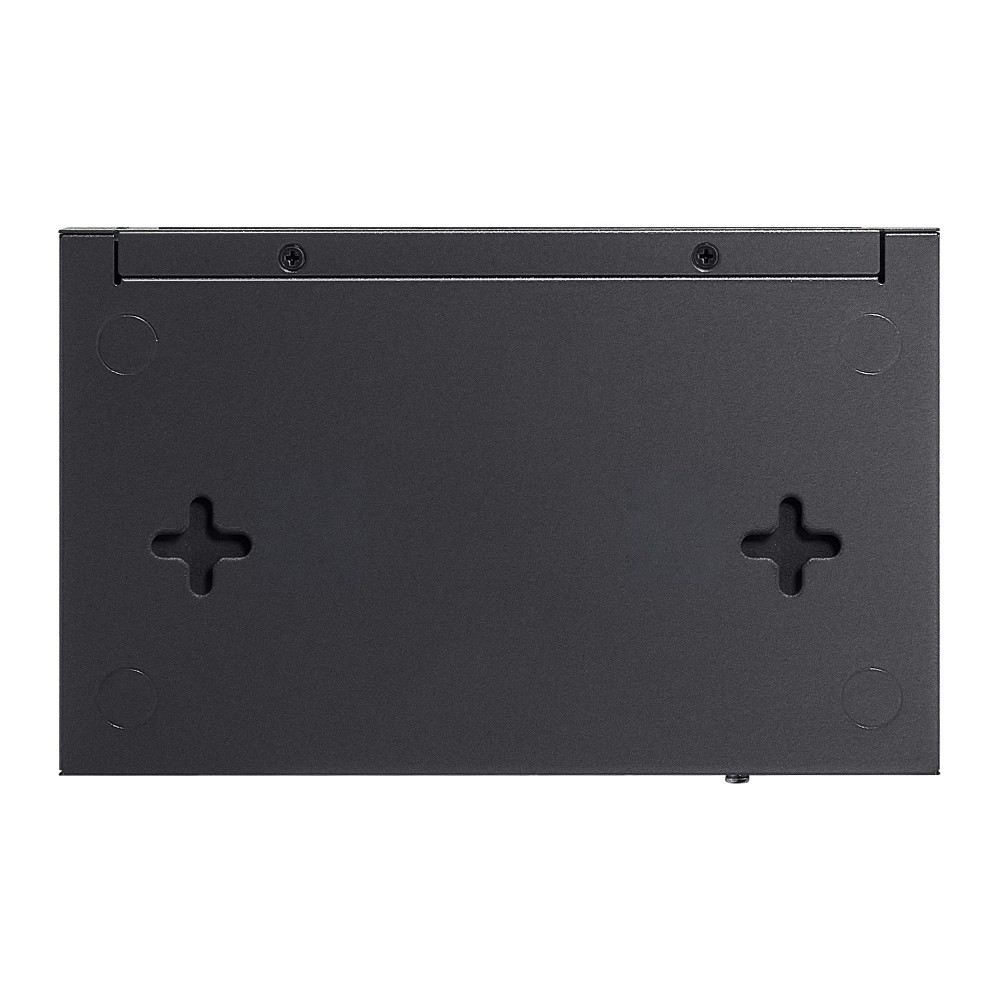

  • Durable Build: Robust metal casing with desktop or wall mounting options
  • Warranty Period: 5-Year

SPECIFICATIONS: HARDWARE FEATURES

  • Interface: 8× 10/100/1000 Mbps RJ45 Ports
  • Fan Quantity: Fanless
  • Installation: Desktop / Wall-Mountable
  • Physical Security Lock: Yes
  • Power Supply: 100–240V AC, 50/60Hz
  • Surge Protection: ±6kV
  • Dimensions: 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm)

PERFORMANCE

  • Switching Capacity: 40 Gbps
  • Packet Forwarding Rate: 29.76 Mpps
  • MAC Address Table: 8K
  • Packet Buffer Memory: 4 Mbit
  • Jumbo Frame: 15 KB

SOFTWARE FEATURES

  • Quality of Service (QoS):
    • Port-based/802.1p/DSCP QoS
    • 8 Priority Queues with WRR (Weighted Round Robin)
    • Queue Weight Configuration
    • Port-Based Bandwidth Control
    • Storm Control (kbps/pps) for Broadcast/Multicast/Unknown-Unicast
  • L2 Features:
    • Static Link Aggregation
    • Loop Prevention / Loopback Detection
    • 802.3x Flow Control
    • Port Mirroring: One-to-One, Many-to-One, Ingress/Egress/Both
    • Port Statistics, LLDP (802.1ab)
  • L2 Multicast: IGMP Snooping v1/v2/v3 with Fast Leave
  • VLAN Support: MTU VLAN, Port-Based VLAN, 802.1Q Tag VLAN (32 VLAN Groups, 4K VID)
  • Transmission Method: Store-And-Forward

MANAGEMENT FEATURES

  • Omada App: Yes (Requires Omada Hardware, Cloud-Based, or Software Controller)
  • Centralized Management: Cloud-Based / Hardware / Software Controller
  • Cloud Access: Supported
  • Zero-Touch Provisioning: Yes (Omada Cloud-Based Controller Required)
  • Additional Management: Web GUI, DHCP Client, Cable Diagnostics
  • Smart Functions: Automatic Device Discovery†, Batch Config/Firmware Upgrade†, Unified Configuration†

ENVIRONMENT

  • Operating Temperature: -5℃~50℃ (23℉~122℉)
  • Storage Temperature: -40℃~70℃ (-40℉~158℉)
  • Operating Humidity: 10%~90% non-condensing
  • Storage Humidity: 5%~90% non-condensing

CERTIFICATIONS

  • FCC, CE, RoHS

PACKAGE CONTENT

  • TP-Link ES208G Switch
  • Power Cord
  • Mounting Brackets
  • Rubber Feet
  • Screws
  • Installation Guide

GTIN: 1210002600668
