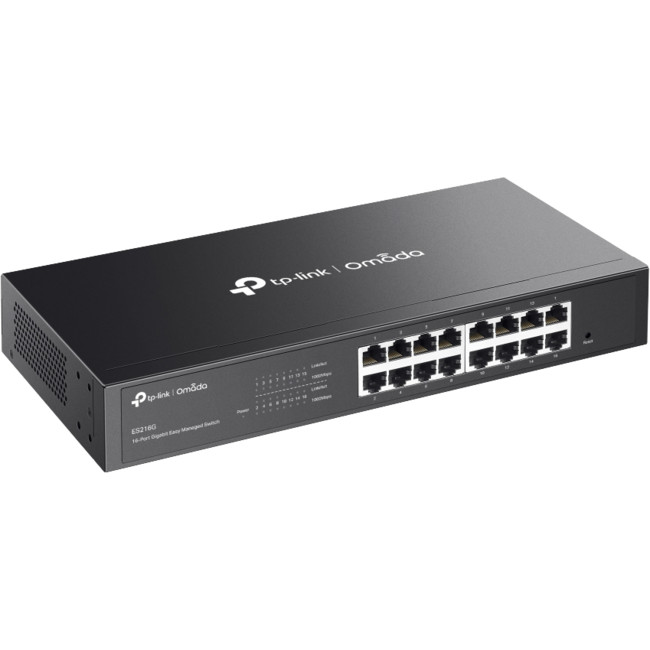

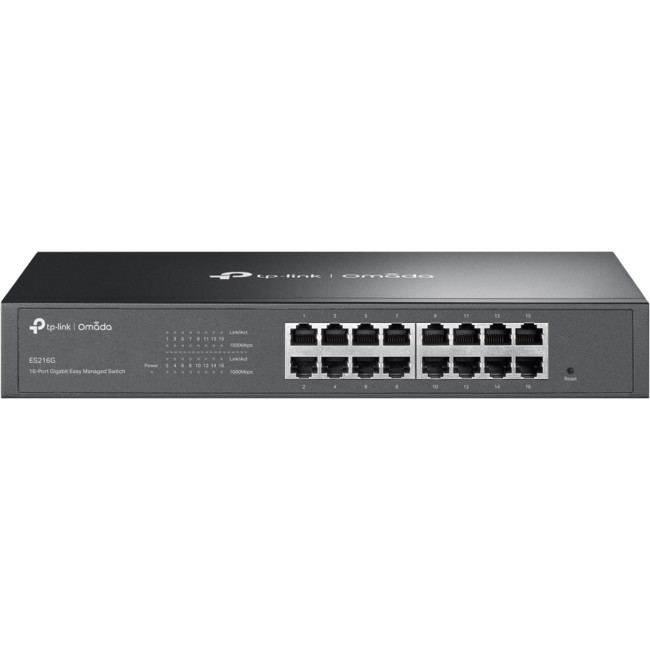

TP-LINK ES216G 16 Port Giga Easy Managed Switch Omada Sdn Cloud Management

Image 1
Image 2
Image 3
Image 4
Hurry! 5 items left!
$136

Collect 136 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by Radio Parts
Secure ways to pay at checkout
Overview
ES216G TP-LINK Omada 16-Port Gigabit Easy Managed Switch
  • 16 × 10/100/1000Mbps RJ45 ports.
  • Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features.
  • Centralised Cloud Management via the web or the Omada app*¹.
  • VLAN, Port Isolation, Cable Test*², QoS*² for reliable surveillance networking.
  • Automatic Loop Prevention and IGMP Snooping.
  • Fanless design for silent operation.
  • Durable metal casing and desktop/rack mounting design.


1: These functions require the use of the Omada Controller. Zero-Touch Provisioning requires the use of the Omada Cloud-Based Controller (Omada Cloud Standard or Omada Cloud Essentials). Go to the Omada Cloud-Based Controller (Omada Cloud Standard) Product List or Omada Cloud Essentials Product List to find all the supported models.

2: Cable Test and Port Qos are supported under Standalone Mode.

Specifications
Specifications

HARDWARE FEATURES Interface
  • 16 × 10/100/1000 Mbps RJ45 Ports
  • Auto-Negotiation/Auto MDI/MDIX
Fan Quantity Fanless
Installation
  • Desktop
  • Rack Mountable
Physical Security Lock
Surge Protection ±6kV
PERFORMANCE Switching Capacity 32 Gbps
Packet Forwarding Rate 23.8 Mpps
MAC Address Table 8K
Packet Buffer Memory 4MB
Jumbo Frame 15KB
SOFTWARE FEATURES Quality of Service
  • Port-based/802.1p/DSCP QoS
  • 8 Priority Queues
  • Priority Schedule Mode
    • WRR (Weighted Round Robin)
  • Queue Weight Config
  • Bandwidth Control
    • Port-Based Rating Limit
  • Storm Control
    • Multiple Control Modes (kbps/pps)
    • Broadcast/Multicast/Unknown-Unicast Control*²
L2 Features
  • Static Link Aggregation
  • Loop Prevention / Loopback Detection
  • Flow Control
    • 802.3x Flow Control
  • Mirroring
    • Port Mirroring
    • One-to-One
    • Many-to-One
    • Ingress/Egress/Both
  • Port Statistics
    • Port Mirror Status
    • Traffic Statistics
  • 802.1ab LLDP
L2 Multicast
  • IGMP Snooping
    • IGMP v1/v2/v3 Snooping
    • Fast Leave
VLAN
  • MTU VLAN
  • Port-Based VLAN
  • 802.1Q Tag VLAN
    • Max. 32 VLAN Groups
    • 4K VID
Transmission Method Store-And-Forward
MANAGEMENT FEATURES Omada App Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralised Management
  • Omada Cloud-Based Controller
  • Omada Hardware Controller
  • Omada Software Controller
Cloud Access Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning Yes. Requires the use of Omada Cloud-Based Controller.
Management Features
  • Web-based GUI
  • DHCP Client
  • Cable Diagnostics
  • Automatic Device Discovery*¹
  • Batch Configuration*¹
  • Batch Firmware Upgrading*¹
  • Unified Configuration*¹
ENVIRONMENT Operating Temperature −5°C~50°C (23°F~122°F)
Storage Temperature −40°C~70°C (−40°F~158°F)
Operating Humidity 10%~90% non-condensing
Storage Humidity 5%~90% non-condensing
GENERAL Certification FCC, CE, RoHS
Power Supply 100~240V, 50~60Hz
Dimensions (W×D×H) 294mm × 140mm × 44mm (11.6″ × 5.5″ × 1.7″)
Package Contents
  • ES216G
  • Power Cord
  • Rubber Feet
  • Mounting Brackets
  • Screws
  • Installation Guide


1: These functions require the use of the Omada Controller. Zero-Touch Provisioning requires the use of the Omada Cloud-Based Controller (Omada Cloud Standard or Omada Cloud Essentials). Go to the Omada Cloud-Based Controller (Omada Cloud Standard) Product List or Omada Cloud Essentials Product List to find all the supported models.

2: Cable Test and Port Qos are supported under Standalone Mode.


Weight: 3.12
