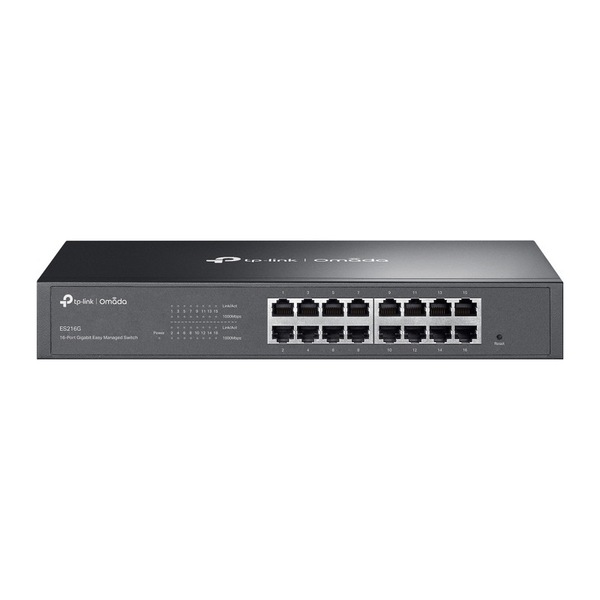

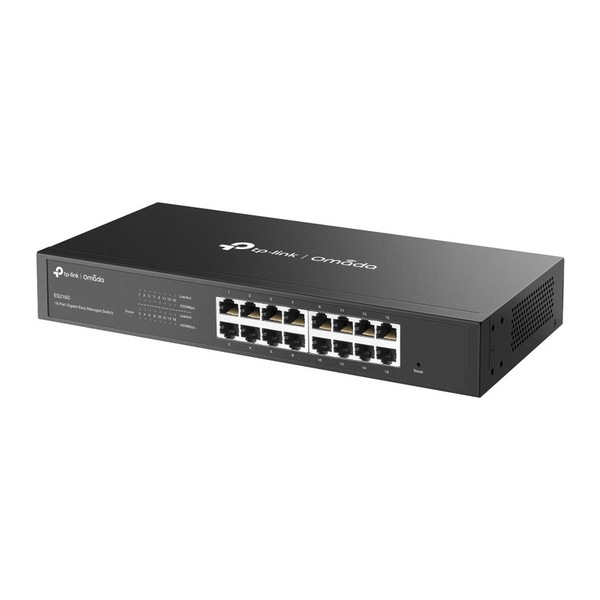

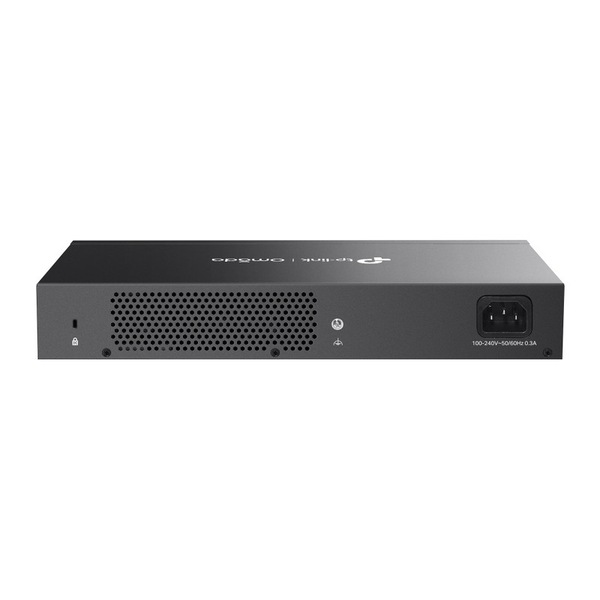

TP-Link ES216G Omada 16-Port Gigabit Easy Managed Switch

Image 1
Image 2
Image 3
Best Price in the Last 14 Days
Limited Stock
$124.58
You save $12.88Was $137.46

Collect 124 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by Best Deal Computers
Secure ways to pay at checkout
TP-Link ES216G Omada 16-Port Gigabit Easy Managed Switch

TP-Link ES216G, Omada 16-Port Gigabit Easy Managed Switch

Features:
  • 16x 10/100/1000Mbps RJ45 ports
  • Easy to Use: Supportsplug-and-play for instant connectivity and simple configuration for additional features
  • Centralised Cloud Management via the web or the Omada app
  • VLAN, Port Isolation, Cable Test?, QoS? for reliable surveillance networking
  • Automatic Loop Prevention and IGMP Snooping
  • Fanless design for silent operation
  • Durable metal casing and desktop/rack mounting design
  • Learn more about Omada Cloud SDN>?
Specifications:

HARDWARE FEATURES

  • Interface :16x 10/100/1000 Mbps RJ45 Ports
    Auto-Negotiation/Auto MDI/MDIX
  • Fan Quantity :Fanless
  • Installation :Desktop
    Rackmountable
  • Physical Security Lock :?
  • Power Supply :100-240 V~50/60 Hz
  • Dimensions ( W x D x H ) :11.6 x 5.5 x 1.7 in (294x 140 x 44 mm)
  • Surge Protection :±6kV

PERFORMANCE

  • Switching Capacity :32 Gbps
  • Packet Forwarding Rate :23.8 Mpps
  • MAC Address Table :8K
  • Packet Buffer Memory :4 Mbit
  • Jumbo Frame :15 KB

SOFTWARE FEATURES

  • Quality of Service :Port-based/802.1p/DSCP QoS
    8 Priority Queues
    Priority Schedule Mode
    - WRR (Weighted Round Robin)
    Queue Weight Config
    Bandwidth Control
    - Port-Based Rating Limit
    Storm Control
    - Multiple Control Modes (kbps/pps)
    - Broadcast/Multicast/Unknown-Unicast Control?
  • L2 Features :Static Link Aggregation
    Loop Prevention / Loopback Detection
    Flow Control
    - 802.3x Flow Control
    Mirroring
    - Port Mirroring
    - One-to-One
    - Many-to-One
    - Ingress/Egress/Both
    Port Statistics
    - Port Mirror Status
    - Traffic Statistics
    802.1ab LLDP
  • L2 Multicast :IGMP Snooping
    - IGMP v1/v2/v3 Snooping
    - Fast Leave
  • VLAN :MTU VLAN
    Port-Based VLAN
    802.1Q Tag VLAN
    - Max 32 VLAN Groups
    - 4K VID
  • Transmission Method :Store-And-Forward

MANAGEMENT

  • Omada App :Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
  • Centralized Management :Omada Cloud-Based Controller
    Omada Hardware Controller
    Omada Software Controller
  • Cloud Access :Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
  • Zero-Touch Provisioning :Yes. Requires the use of Omada Cloud-Based Controller
  • Management Features :Web-based GUI
    DHCP Client
    Cable Diagnostics
    Automatic Device Discovery
    Batch Configuration
    Batch Firmware Upgrading
    Unified Configuration

OTHERS

  • Certification :FCC, CE, RoHS
  • Package Contents :ES216G
    Power Cord
    Rubber Feet
    Mounting Brackets
    Screws
    Installation Guide
  • Environment :Operating Temperature: -5?~50? (23?~122?)
    Storage Temperature: -40?~70? (-40?~158?)
    Operating Humidity: 10%~90% non-condensing
    Storage Humidity: 5%~90% non-condensing

SKU: SWI-TPL-ES216G
