TP-LINK MR402 Ac1200 Dual Band 4G Lte Router

Image 1
Image 2
Image 3
Image 4
Image 5
Hurry! 2 items left!
$176

Collect 176 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by Radio Parts
Secure ways to pay at checkout
Overview

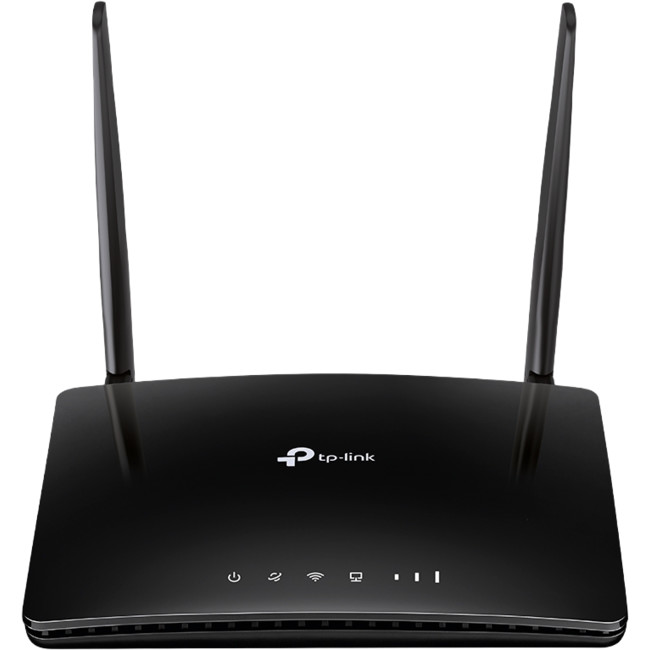

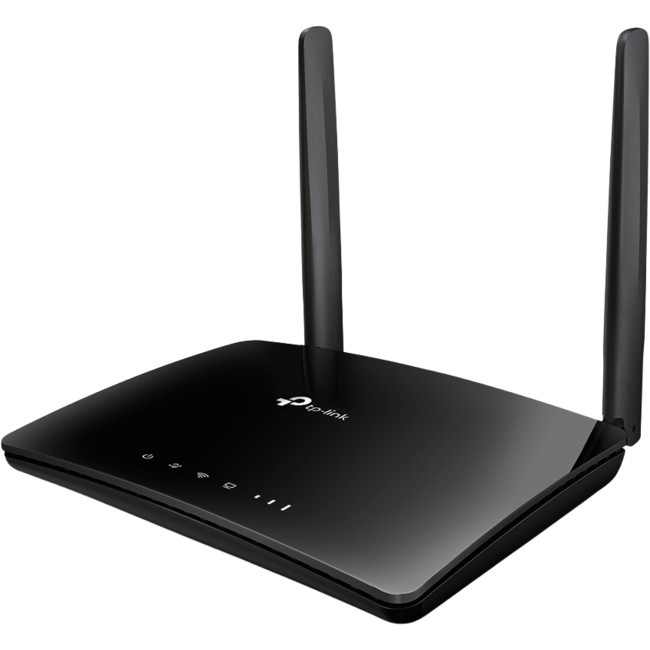

MR402 TP-Link Archer AC1200 Wireless Dual Band 4G LTE Router
867 Mbps at 5 GHz + 300 Mbps at 2.4 GHz, 4G CAT4 150/50 Mbps
  • Cutting-Edge 4G Network: Share internet access with up to 64 Wi-Fi devices and enjoy download speeds of up to 150 Mbps.
  • AC1200 Wi-Fi: Create simultaneous dual band Wi-Fi networks, with maximum speeds of up to 300 Mbps on the 2.4 GHz band and 867 Mbps on the 5 GHz band.

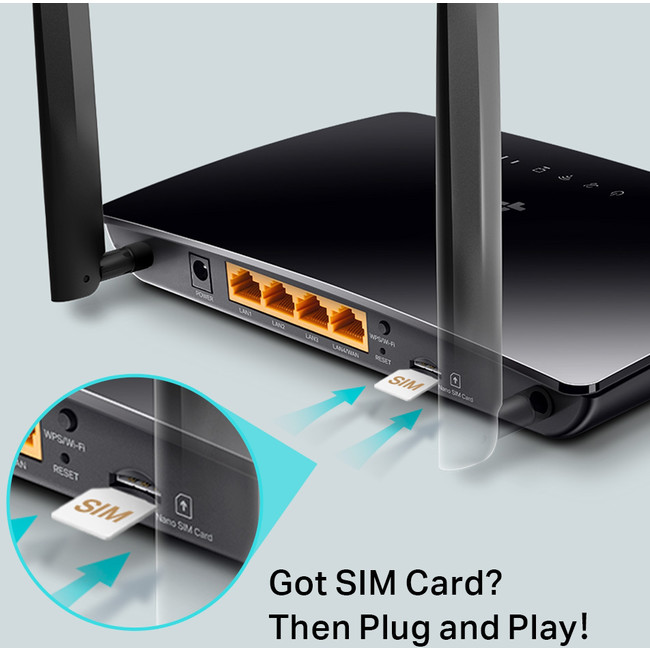

  • Plug in a SIM Card and Play: No configurations needed, compatibility for SIM cards in 100+ countries are assured by years of field tests.
  • 2 × Detachable Advanced LTE Antennas: Enjoy stable and efficient connections to every device thanks to the two external antennas.

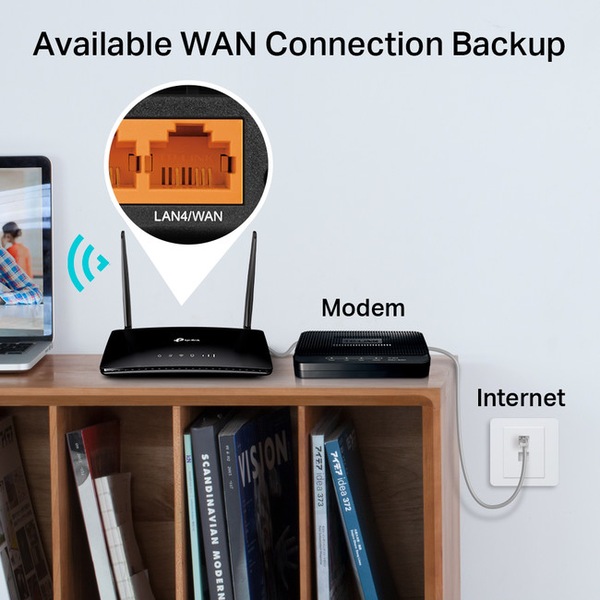

  • Wi-Fi Router Mode: Plug an Ethernet cable into the LAN/WAN port for flexible access if you can't get a 4G connection.
Specifications
Specifications

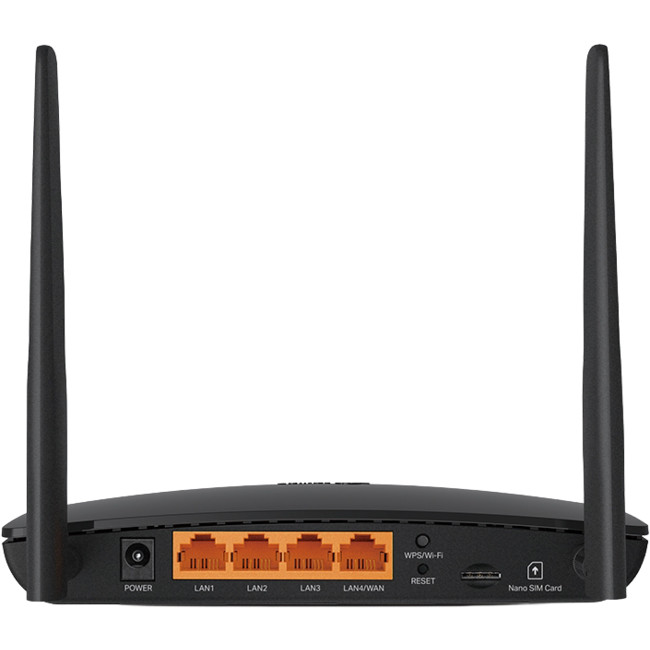

HARDWARE FEATURESInterface
  • 3 × 10/100Mbps LAN Ports
  • 1 × 10/100Mbps LAN/WAN Port
  • 1 × Nano SIM Card Slot
  • 2 × External SMA-F Antenna Interface
ButtonWPS/Wi-Fi Button, Reset Button
Antenna2 × Detachable External 4G LTE Antennas
WIRELESS FEATURES Wireless Standards
  • IEEE 802.11a/n/ac 5 GHz
  • IEEE 802.11b/g/n 2.4 GHz
Frequency2.4 GHz and 5 GHz
Signal Rate300Mbps at 2.4GHz, 867Mbps at 5GHz
Reception Sensitivity
  • 5 GHz:
    • 11a 54M: −77 dBm
    • 11ac VHT20 MCS0: −95.5 dBm
    • 11ac VHT20 MCS8: −73 dBm
    • 11ac VHT40 MCS0: −93 dBm
    • 11ac VHT20 MCS9: −68 dBm
    • 11ac VHT80 MCS0: −90 dBm
    • 11ac VHT20 MCS9: −65 dBm
  • 2.4 GHz
    • 11g 54M: −74.5 dBm
    • 11n HT20 MCS0: −92 dBm
    • 11n HT20 MCS7: −73 dBm
    • 11n HT40 MCS0: −89 dBm
    • 11n HT40 MCS7: −70 dBm
Wireless Functions
  • Enable/Disable Wireless Radio
  • Wireless Schedule
  • WMM
  • Wireless Statistics
WAN Failover
Wireless Security64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions
Transmission Power
  • <20 dBm (2.4 GHz)
  • <23 dBm (5 GHz)
Network Type
  • 4G:
    • FDD-LTE: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700 MHz)
    • TDD-LTE: B38/B40/B41 (2600/2300/2500 MHz)
  • 3G:
    • HSPA/UMTS: B1/B5/B8 (2100/850/900 MHz)
SOFTWARE FEATURESQuality of ServicePrioritises network traffic by device or application
Operating Modes
  • 3G/4G Router
  • Wireless Router
WAN Type
  • Dynamic IP
  • Static IP
  • PPPoE
  • PPTP (Dual Access)
  • L2TP (Dual Access)
Management Features
  • Access Control
  • Local Management
  • Remote Management
  • Reboot Schedule
DHCP
  • Server
  • Client
  • DHCP Client List
  • Address Reservation
Port Forwarding
  • Virtual Server
  • Port Triggering
  • UPnP
  • DMZ
Dynamic DNS
  • DynDns
  • NO-IP
VPN
  • PPTP VPN
  • OpenVPN
Access Control
  • Parental Control
  • Local Management Control
Firewall Security
  • DoS
  • SPI Firewall
  • IP Address Filter
  • Domain Filter
  • IP and MAC Address Binding
ProtocolsSupports IPv4 and IPv6
Guest Network
  • 1 × 2.4GHz Guest Network
  • 1 × 5GHz Guest Network
ENVIRONMENTOperating Temperature0°C~40°C (32°F~104°F)
Storage Temperature−40°C~70°C (−40°F~158°F)
Operating Humidity10%~90% non-condensing
Storage Humidity5%~90% non-condensing
GENERALCertificationCE, RoHS
External Power Supply12V/1A
Dimensions (W×D×H)174mm × 124.5mm × 33.5mm (6.85″ × 4.9″ × 1.32″)
Package Contents
  • AC1200 Wireless Dual Band 4G LTE Router, Archer MR402
  • RJ45 Ethernet Cable
  • 1.5m Power Adapter
  • Quick Installation Guide
System Requirements
  • Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, 10
  • MAC OS, NetWare, UNIX or Linux
  • Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0 browsers or higher, or other Java-enabled browsers
  • Nano SIM Card

Weight: 0.651
