VIGI 4 Channel PoE+ Network Video Recorder

VIGI Surveillance Solution

The VIGI professional surveillance system by TP-Link is dedicated to protecting the business that you've worked hard to build—whenever, wherever. Our outstanding functions, reliable quality guarantees, and implified installation work together to ensure your business stays safe and sound.

4-Channel Live View and 4K HDMI Video Output
4 × 10/100Mbps PoE+ Ports with 53W PoE Budget*¹
Up to 8-ch @ 2MP (25fps) / 4-ch @ 4MP (25fps) Decoding Capability
4-Channel Synchronous Playback*²
80Mbps Incoming Bandwidth and 60Mbps Outgoing Bandwidth
1 × SATA Interface and 1 Up to 10TB*³
H.265+ Compression Technology
HDMI and VGA Simultaneous Output
Remote Monitoring

*1: PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors.

*2: The number of simultaneously playable channels may be fewer than 8, or none, if the total resolution exceeds 16MP.

*3: HDD is not included.

Specifications

VIDEO AND AUDIO	IP Video Input	4-Channel
Incoming Bandwidth	80 Mbps
Outgoing Bandwidth	60 Mbps
HDMI Output Resolution	1 Channel, Resolution: 3840×2160/30Hz, 1920×1080/60Hz, 1680×1050/60Hz, 1440×900/60Hz, 1280×1024/60Hz, 1280×720/60Hz
VGA Output Resolution	1 Channel, Resolution: 1920×1080/60Hz, 1680×1050/60Hz, 1440×900/60Hz, 1280×1024/60Hz, 1280×720/60Hz
Video Output Mode	HDMI/VGA Simultaneous Output
Multi-View Display	1/4
DECODING	Audio Compression	G.711A / G.711U / G.726
Video Compression	H.265+ / H.265 / H.264+ / H.264
Record Resolution	8MP / 5MP / 4MP / 3MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF
Synchronous Playback	4-Channel
Capability	25fps: 2-Channel @ 8MP 4-Channel @ 4MP 30fps: 4-Channel @ 4MP 3-Channel @ 5MP
RECORD MANAGEMENT	Record Mode	Manual Recording Scheduling Recording Motion Detection Recording
Playback Mode	Instant Playback Regular Playback Tag Playback Event Playback
Backup Mode	Regular Backup Video Clip Backup
Playback Function	Play Pause Stop Fast Forward Fast Backward Play By Frame Full Screen Video Clip Export Clip Digital Zoom Lock Recording Audio On/Off
NETWORK	Protocol	UPnP (Plug and Play) NTP (Network Timing)
Mobile Phone Access	Android, iOS
Web Browser	Chrome (57+), Firefox (52+), Edge (91+)
Interoperability	ONVIF, CGI

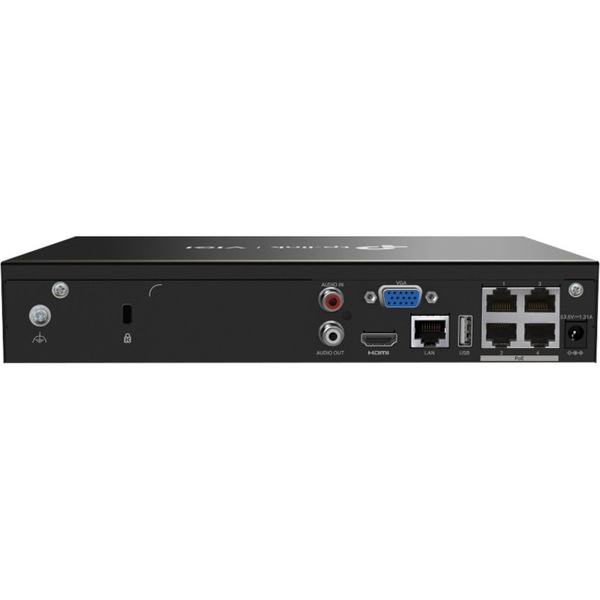

EXTERNAL INTERFACE	Network Interface	1 × RJ-45 10/100Mbps Self-Adaptive Ethernet Interface
USB Interface	1 × Front USB 2.0 Port 1 × Rear USB 2.0 Port
Audio Interface	1 × Audio In 1 × Audio Out
Alarm In/Out	N/A
Serial Interface	N/A
Power	1 × DC Jack
Reset Button	1
Speaker	N/A
eSATA	N/A
HDMI	1
VGA	1
HARD DISK	SATA	1 × SATA Interface
Capacity	Up to 10TB Capacity for Each HDD
PoE	Standard	802.3at/af Compliant
Interface	1-4, RJ-45 10/100Mbps Self-Adaptive Ethernet Interface
PoE Budget	53W Available for All PoE+ Ports, 30W Max. per Port
ALARM	General Alarm	Motion Detection Video Tampering Scene Change Detection Line-Crossing Detection Intrusion Detection Region Entering Detection Region Exiting Detection Loitering Detection Object Abandoned/Removal Detection Vehicle Detection Human Detection Abnormal Sound Detection Smart Frame Note: The alarm function requires the use of a camera.
Anomaly Alarm	Video Loss Offline and IP Conflict Disk Exception Login Exception Note: The alarm function requires the use of a camera.
Alarm Linkage	Recording White Light Alarm Buzzer Log Audible Alarm Note: The alarm function requires the use of a camera.
GENERAL	Power Supply	53.5V DC / 1.31A
Power Consumption	Without Disk: 4.25W With Disk: 13.10W
Certifications	CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI
ENVIRONMENT	Storage Temperature	−40~70°C
Working Temperature	NVR: −10~55°C Power Adapter: 0~40°C
Storage Humidity	10%~90% RH Non-Condensing
Working Humidity	10%~90% RH Non-Condensing
PACKAGING	Dimensions (W×D×H)	246.2mm × 148.2mm × 45mm
Package Contents	VIGI Network Video Recorder Power Adapter Power Cables Rubber Feet Mouse Quick Installation Guide

Weight: 1.015
