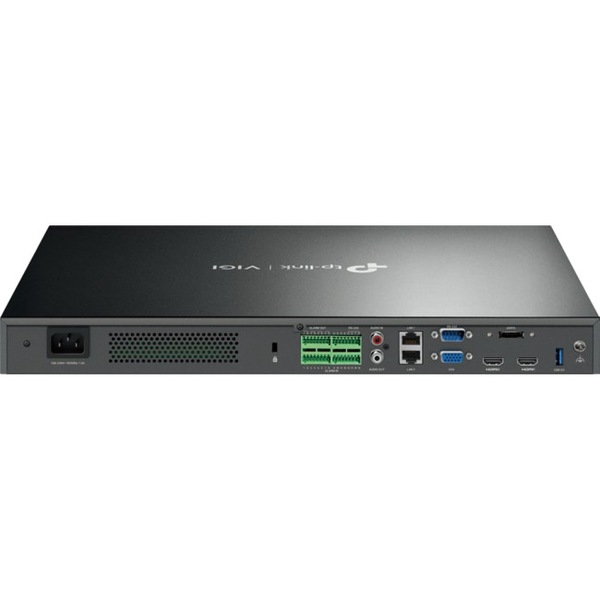

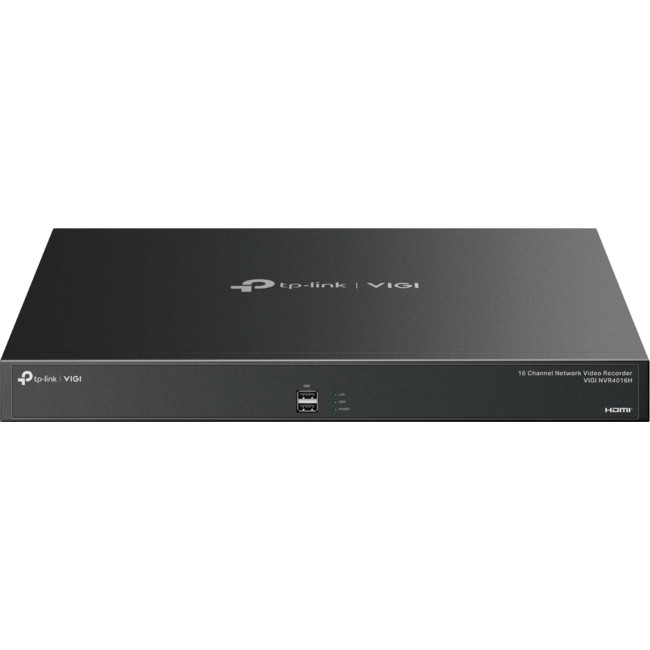

TP-LINK NVR4016H 16 Channel Network Video Recorder Vigi

Image 1
Image 2
Image 3
Hurry! 1 items left!
$536

Collect 536 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by Radio Parts
Secure ways to pay at checkout
VIGI 16 Channel Network Video Recorder
  • 16-ch@2MP/ 8-ch@4MPDecoding Capacity†:Allowsyou to enjoymore channels, live view,and playback at the same time.
  • 1 HDMI and 1 VGAInterface:Supportsindependent video output.
  • H.265+:Without using any extra bandwidth, your camera transmits compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
  • 320 Mbps Incoming and Outgoing Bandwidth:Ensuresyour NVR manages more cameras with high resolutions.
  • Mass Storage:Supports 4× SATA, up to 10 TB each.
  • 16-Channel Simultaneous Playback:Replay the feed from up to 16 cameras at the same time, increase replay speed, and find events in the video schedule to easily review footage.
  • Dual Ethernet Ports Design: Supports three network modes, including muti-address mode, network fault-tolerance and load balance.
  • Plug & Play:Allows new and unused VIGI IP Cameras to be added automatically to the new NVR and activated instantly, making installation faster than ever before.
  • Remote Monitoring:The dedicated VIGI app, web UI, and VIGI Security Manager enable remote monitoring, providing ease and convenience.
  • Rack Mounting:Space-saving and easy installation.
  • ONVIFEnsuresCompatibility:Easily addsIPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility
IP Video Input 16-Channel
Incoming Bandwidth 320 Mbps
Outgoing Bandwidth 320 Mbps
HDMI Output Resolution 1 Channel, Resolution: 3840x2160/30Hz,1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
VGA Output Resolution 1 Channel, Resolution: 1920x1080/60Hz,1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
Video Output Mode HDMI/VGA Independent Output
Multi-View Display 1/4/6/8/9/16/25/32/36
DECODING
Audio Compression G.711A/G.711U/G.726
Video Compression H.265+/H.265/ H.264+/H.264
Record Resolution 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Synchronous Playback 16-Channel
Capability 16-ch @ 1080p (30 fps), 8-ch @ 4MP (30 fps), 4-ch @ 8MP (30 fps)
Record Management
Record Mode • Manual Recording
• Scheduling Recording
• Motion Detection Recording
Playback Mode • Instant Playback
• Regular Playback
• Tag Playback
• Event Playback
Backup Mode • Regular Backup
• Video Clip Backup
Playback Function • Play
• Pause
• Stop
• Fast Forward
• Fast Backward
• Play By Frame
• Full Screen
• Video Clip
• Export Clip
• Digital Zoom
• Lock Recording
• Audio On/Off
NETWORK
Protocol UPnP (Plug and Play), NTP (Network Timing), TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, RTSP, SSL/TLS, RTP, IPv4, ARP
Mobile Phone Access Android, iOS
Web Browser Chrome (57+), Firefox (52+), Edge (91+)
Interoperability ONVIF, CGI
External Interface
Network Interface 2, RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet Interface
USB Interface 2 Front USB 2.0 Ports, 1 Rear USB 3.0 Port
Audio Interface 1-ch RCA Input; 1-ch RCA Output
Alarm In/Out 16/4
Serial Interface 1, RS232
Power 1× AC Jack
Reset Button 1
Speaker N/A
eSATA N/A
HDMI 1
VGA 1
HARD DISK
SATA 4 SATA Interfaces
Capacity Up to 10 TB Capacity for Each HDD*
Alarm
General Alarm • Motion Detection
• Video Tampering
• Line-Crossing Detection
• Intrusion Detection
• Region Entering Detection
• Region Exiting Detection
• Object Abandoned/Removal Detection
• Vehicle Detection
• Human Detection
Anomaly Alarm • Video Loss
• Offline and IP Conflict
• Disk Exception
• Login Exception
• Fan Exception
Alarm Linkage • Recording
• White Light Alarm
• Buzzer
• Log
• Audible Alarm
GENERAL
Storage Temperature -40-70 °C
Storage Humidity 10%~90% RH Non-Condensing
Package Contents • VIGI Network Video Recorder
• Mouse
• Installation Guide
• Power Cord
• HDD Power Cables
• HDD Data Cables
• Terminal Blocks
• Mounting Brackets
• Screws
• Rubber Feet
Working Temperature • NVR: -10-55 °C
• Power Adapter: 0-40 °C
Working Humidity 10%~90% RH Non-Condensing
Dimensions( W X D X H ) 440 × 330 × 44 mm
External Power Supply 100-240 VAC, 50 to 60HZ, 1.5A
Net Weight 4.0 Kg#
Gross Weight 5.2 Kg#
Power Supply 100-240 VAC, 50 to 60HZ, 1.5A
Power Consumption • 5 W (Without Disk)
• 48 W (With Disk)
Certifications CE, EAC, UKCA, RCM, Triman, RoHS, VCCI, FCC, IC, HDMI
