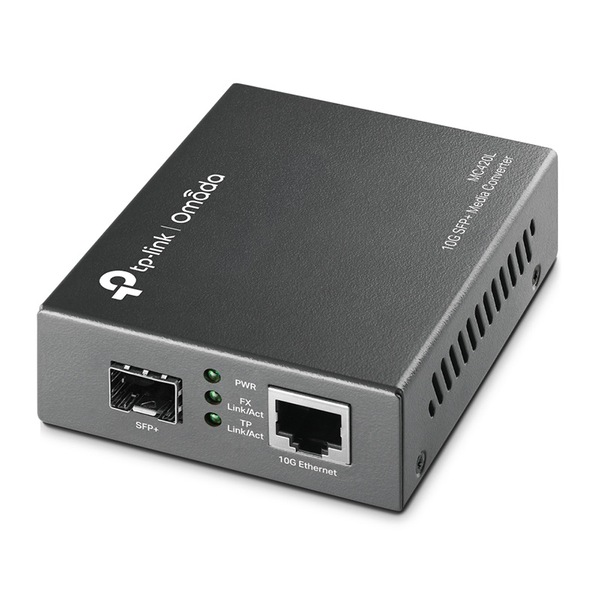

TP-Link Omada 10G Multi-Gigabit SFP Media Converter (MC420L)

Image 1
Hurry! 5 items left!
$57.10

Collect 57 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by Umart Online
Secure ways to pay at checkout

TP-Link Omada 10G Multi-Gigabit SFP Media Converter
The MC420L is a media converter designed to convert between 10GBASE-SR/LR fiber, 10GBASE-LRM fiber and 10GBASE-T copper media. It easily extends the distance of an existing gigabit network via fiber optic when integrated with the SFP Module. The MC420L applies the IEEE 802.3ae 10GBASE-SR/LR 10G Ethernet & IEEE 802.3an 10GBASE-T 10G Ethernet standards as part of its intended use with multi-mode/single-mode SFP Module. Long-range point-to-point connections are easily built with the gigabit fiber converters, making them ideal for network connections across multiple buildings, for remote surveillance and automated factory equipment.

MC420L offers flexible installation on standalone desktops or inserted into a chassis (TP-Link's MC1400). The easy-to-view front panel status LEDs provide real-time status information to monitor up-to-the-minute network activity. While the maximum transmission distance of fiber optics depends on the insertion of the SFP module.




SPECIFICATIONS:

Standards and Protocols

IEEE 802.3ab, IEEE 802.3an, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3aq, IEEE 802.3x

Basic Function

• Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
• Maximum transmission distance depends on the inserting SFP module

Ports

• 1 SFP+ port
• 1 1G/2.5G/5G/10Gbps RJ45 port

Wave Length

Depends on the used SFP module

Network Media 10GBASE-R

Multi-mode/Single-mode SFP+ module

Network Media 10GBASE-T

1000BASE-T/2.5GBASE-T/5GBASE-T: UTP cat.5e or above (max. 100m);
10GBASE-T: UTP cat.6(max. 55m), STP Cat. 6 or above(max. 100m)

LED Indicators

PWR, Link/Act

Dimensions (W*D*H)

3.7*2.9*1.1 in. (94.5*73.0*27.0 mm)

Power Supply

External Power Adapter

Max Power Consumption

4.12W

Safety & Emission

UL, RoHS

Package Contents

• MC420L
• Power Adapter
• Installation Guide

Environment

• Operating Temperature: 0~50 (32~122)
Storage Temperature: -40~70 (-40~158)
Operating Humidity: 10%RH~90%RH Non-condensing
Storage Humidity: 5%RH~90%RH Non-condensing





SKU: 79098
