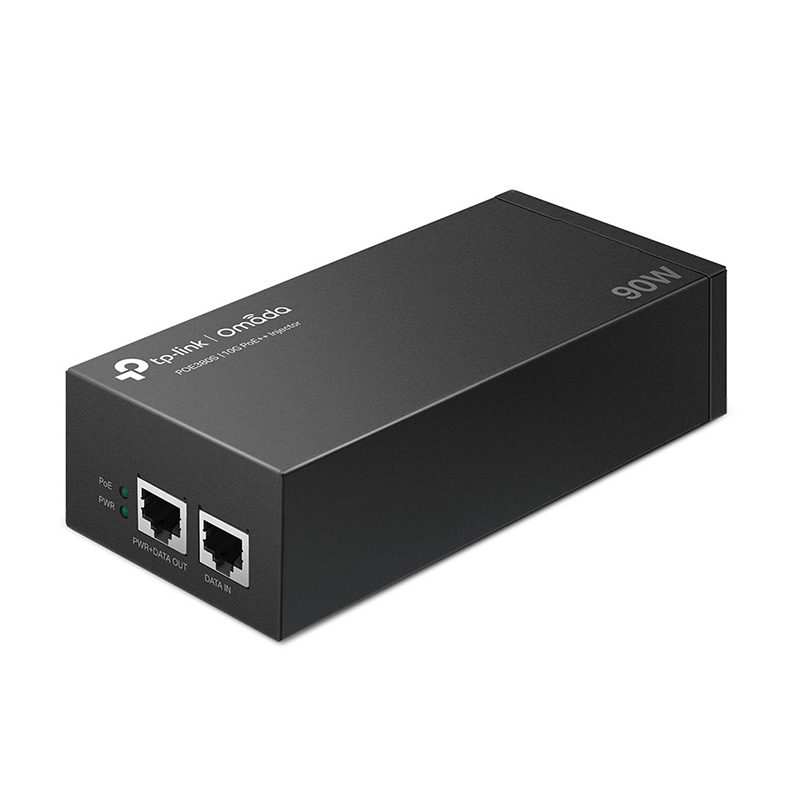

TP-Link Omada 10G PoE++ Injector (POE380S)

Image 1
Hurry! 5 items left!
$100.80

Collect 100 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by Umart Online
Secure ways to pay at checkout







SPECIFICATIONS:

HARDWARE FEATURES

Standards and Protocols

IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3af, IEEE802.3at, IEEE802.3bt*

Network Media

• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100 m)
EIA/TIA-568 100Ω STP (maximum 100 m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100 m)
EIA/TIA-568 100Ω STP (maximum 100 m)
• 1000BASE-T: UTP category 5, 5e, 6 cable(maximum 100 m)

Ports

• 1 10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100   Mbps/10 Mbps RJ45 data-in port
• 1 10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps/10 Mbps RJ45 power+data-out port (Max. 90 W)
• 1 AC socket

Power Consumption

• Input: 100-240 V, 50/60 Hz, 1.6A
• Output: Auto-determine the necessary power requirements (max. 90 W)

Basic Function

• Auto-Sensing Algorithm enables providing power with 802.3af/at/bt* PD
• Auto-determine the necessary power requirements
• Wall-mounting and desktop installation
• Plug-and-Play

LED

Power / PoE

Dimensions ( W x D x H )

6.1*2.8*1.7 in (155*70*42 mm)

OTHERS

Certification

FCC, CE, RoHS

Package Contents

• POE380S
• Power Cord
• Installation Guide

Environment

• Operating Temperature: 0C to 45C (32F to   113F)
• Storage Temperature: -40C to 70C (-40F to 158F)
• Operating Humidity: 10% to 90%RH non-condensing
• Storage Humidity: 5% to 90%RH non-condensing

Note

*POE380S is incompatible with Passive PoE and other non-standard PoE devices. The standards refer to IEEE 802.3af/at/bt.
